1030 (133B582B100) - Cub Cadet Rear-Engine Riding Mower Engine (1993) B&S 10.5 HP Ignition Ass'y Parts Diagram

Rear-Engine Riding Mower Engine

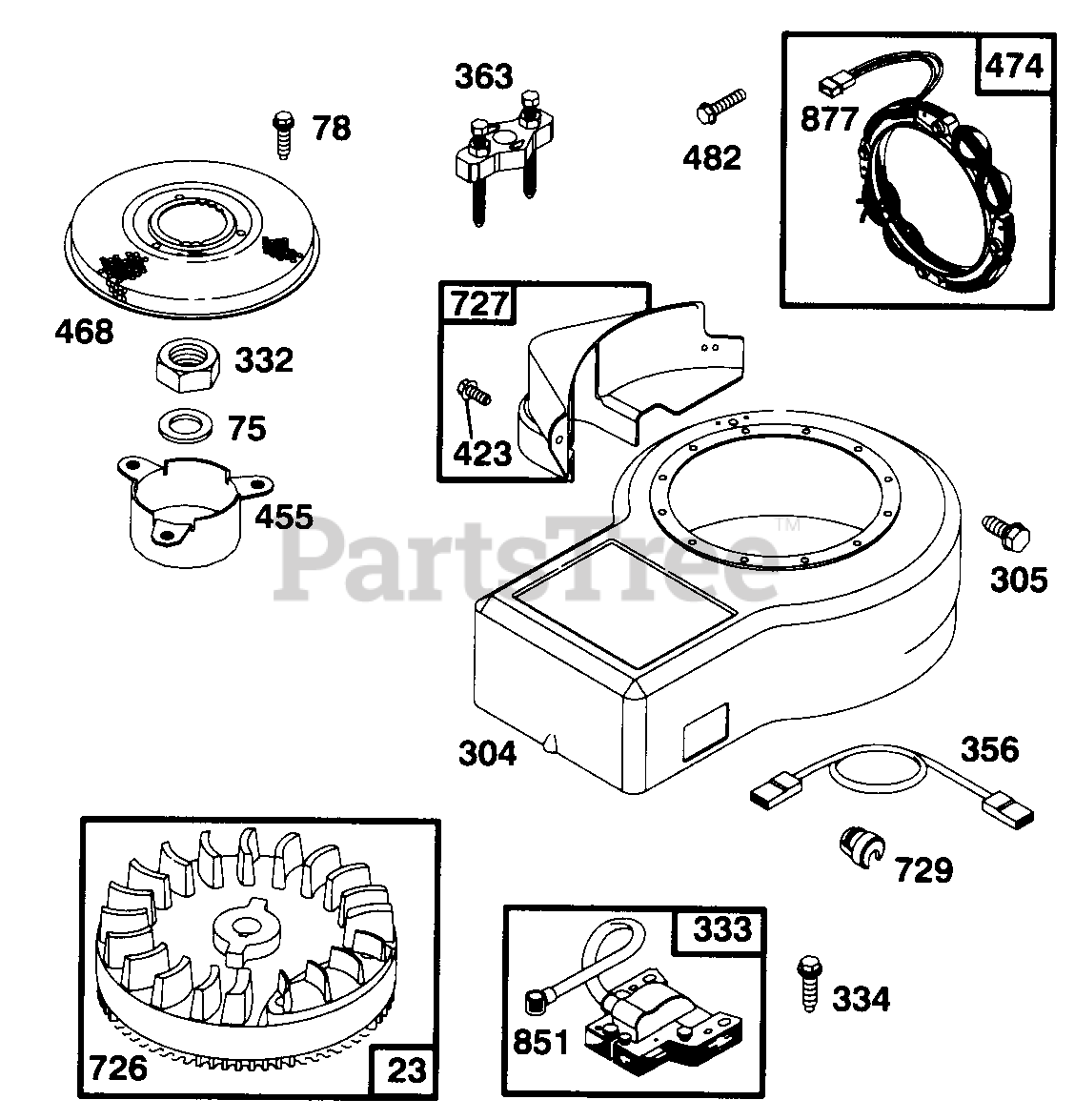

B&S 10.5 HP Ignition Ass'y Parts Diagram

  • Title

23

Cub Cadet BS-391988

Flywheel and Ring Gear Ass'y.--Magneto

$

$

Not available

75

Cub Cadet BS-224061

Washer--Spring

$

$

Not available

78

Cub Cadet BS-93805

Screw--Sem
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

304

Cub Cadet BS-494087

Housing--Blower

$

$

Not available

305

Cub Cadet BS-94608

Screw--Sem
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 11

0

332

Cub Cadet 712-3056

Nut--Hex

$4.99

$

In Stock, Qty 13

0

333

Cub Cadet BS-398811

Armature--Magneto

$63.99

$

In Stock, Qty 17

0

334

Cub Cadet BS-93381

Screw--Armature Mounting Sem

$

$

Not available

356

Cub Cadet BS-494328

Wire Assembly

$

$

Not available

363

Cub Cadet BS-19203

Puller--Flywheel

$23.99

$

In Stock, only 1 left!

0

423

Cub Cadet BS-94625

Screw--Sem

$

$

Currently unavailable

455

Cub Cadet BS-222561

Cup--Screen Mounting

$

$

Not available

468

Cub Cadet BS-222562

Screen--Flush Rotating
(Superseded to BS-691748)

$232.99

$

In Stock, only 1 left!

0

474

Cub Cadet BS-393474

Stator--Alternator
(Superseded to BS-592831)

$101.99

$

In Stock, Qty 7

0

482

Cub Cadet BS-93621

Screw--Sem
(Superseded to BS-691183)

$

$

Not available

726

Cub Cadet BS-392134

Gear--Ring
(Superseded to BS-696537)

Note: (Includes Mtg. Hardware)

$50.99

$

Usually ships in 2-12 days

0

727

Cub Cadet BS-395405

Cover--Starter

$

$

Not available

729

Cub Cadet BS-281159

Clip--Lead Wire

$

$

Not available

851

Cub Cadet BS-221798

Terminal--Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

877

Cub Cadet BS-393456

Diode and Connector Assy. (Dual Circuit)

$20.99

$

In Stock, only 1 left!

0
