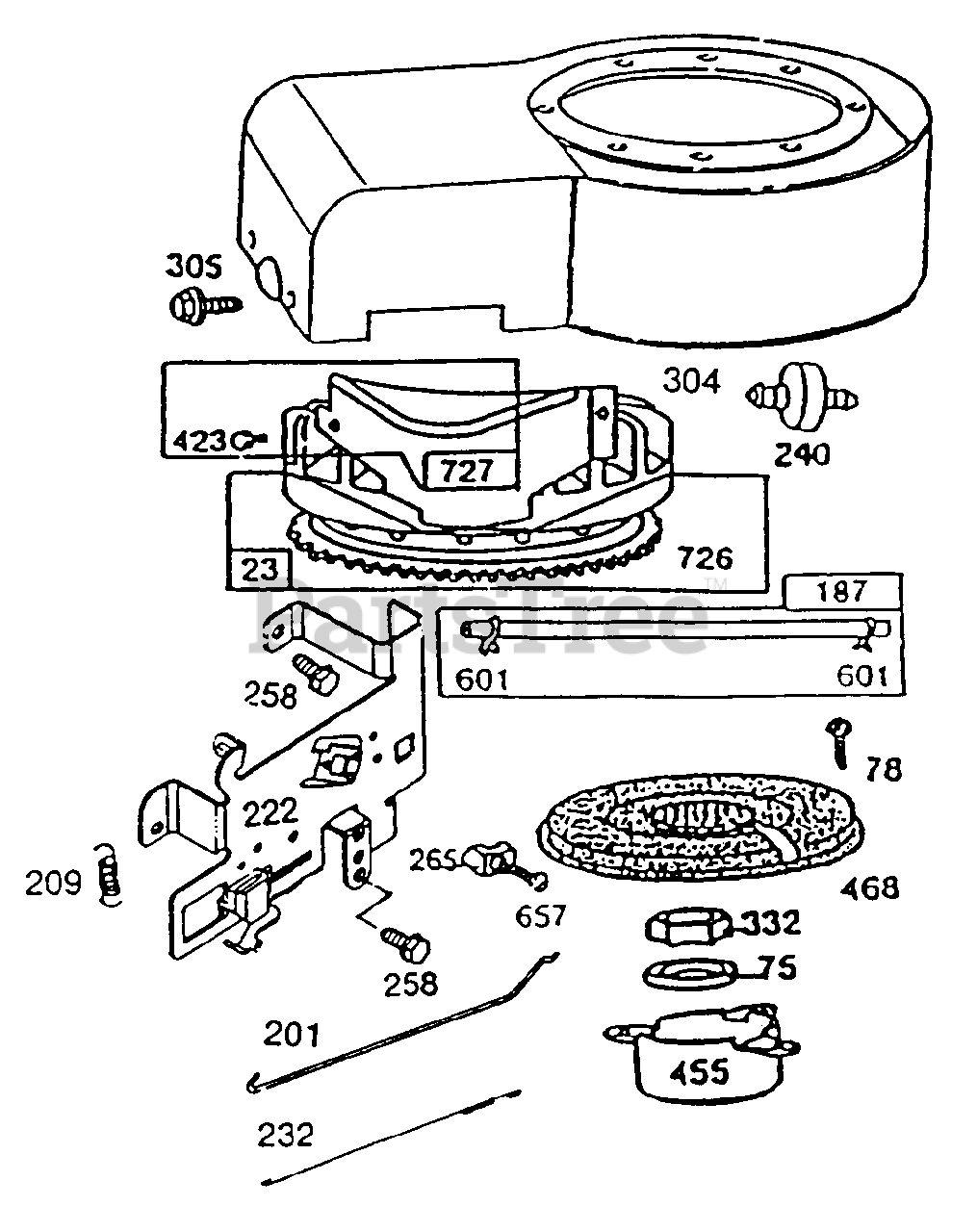

1030 (132-522B100) - Cub Cadet Rear-Engine Riding Mower Engine (1992) B&S 10 HP Flywheel and Ring Gear Ass'y, Blower Housing Mtg Parts Diagram

Rear-Engine Riding Mower Engine

B&S 10 HP Flywheel and Ring Gear Ass'y, Blower Housing Mtg Parts Diagram

  • Title

23

Cub Cadet BS-391988

Flywheel And Ring Gear Assy.

$

$

Not available

75

Cub Cadet BS-224061

Washer-Spring

$

$

Not available

78

Cub Cadet BS-93805

Screw-Sem
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

187

Cub Cadet BS-393815

Line-Fuel

$11.99

$

Usually ships in 2-12 days

0

201

Cub Cadet BS-262767

Link-Governor
(Superseded to BS-691841)

$9.49

$

In Stock, Qty 13

0

209

Cub Cadet BS-260871

Spring-Governor
(Superseded to BS-792602)

$3.49

$

In Stock, only 2 left!

0

222

Cub Cadet BS-493896

Plate-Governor Control
(Superseded to BS-694042)

$38.99

$

In Stock, Qty 20+

0

232

Cub Cadet BS-262785

Spring-Governor Link
(Superseded to BS-691842)

$11.99

$

In Stock, Qty 20+

0

240

Cub Cadet BS-298090

Filter-Fuel(In Fuel Line)
(Superseded to BS-298090S)

$

$

Not available

258

Cub Cadet BS-94620

Screw-Hex. Head
(Superseded to BS-691693)

$3.99

$

In Stock, Qty 8

0

265

Cub Cadet BS-221535

Clamp-Casing
(Superseded to BS-691024)

$3.99

$

In Stock, Qty 6

0

304

Cub Cadet BS-494087

Housing-Blower

$

$

Not available

305

Cub Cadet BS-94608

Screw-Blower Housing Mtg.
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 11

0

332

Cub Cadet BS-92284

Nut-Hex.
(Superseded to 712-3056)

$4.99

$

In Stock, Qty 13

0

?346

Cub Cadet BS-93014

Screw-Hex. Washer Head
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 8

0

?363

Cub Cadet BS-19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

423

Cub Cadet BS-93984

Screw-Sem

$

$

Currently unavailable

455

Cub Cadet BS-222561

Cup-Screen Mtg.

$

$

Not available

468

Cub Cadet BS-222562

Screen-Flush Rotating
(Superseded to BS-691748)

$232.99

$

In Stock, only 1 left!

0

601

Cub Cadet BS-93053

Clamp-Fuel Pipe
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

657

Cub Cadet BS-93496

Screw-Sem
(Superseded to BS-690804)

$

$

Not available

726

Cub Cadet BS-392134

Gear-Ring
(Superseded to BS-696537)

Note: (Includes Mtg. Parts)

$50.99

$

Usually ships in 2-12 days

0

727

Cub Cadet BS-395405

Cover-Starter

Note: (Includes Mtg. Screws)

$

$

Not available
