1030 (132-522B100) - Cub Cadet Rear-Engine Riding Mower Engine (1992) B&S 10 HP Carburetor Assembly Parts Diagram

Rear-Engine Riding Mower Engine

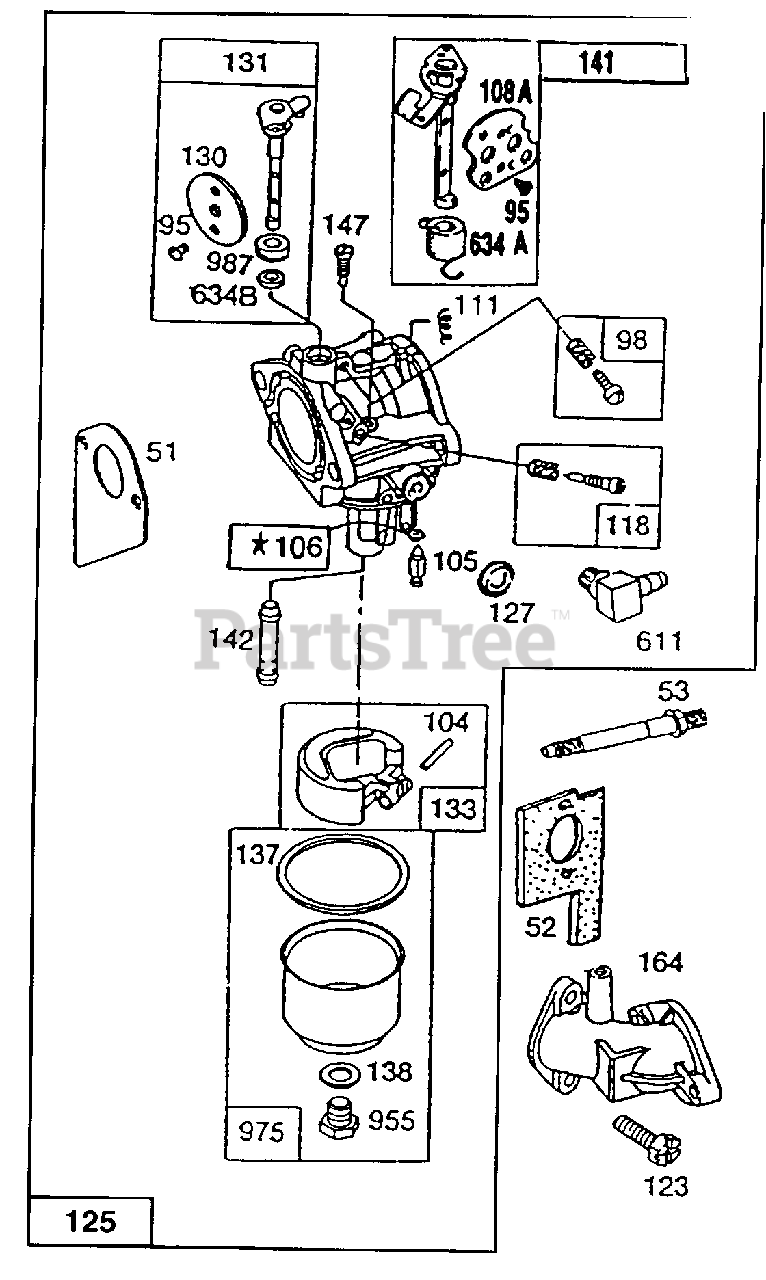

B&S 10 HP Carburetor Assembly Parts Diagram

  • Title

51

Cub Cadet BS-272465

Gasket-Carburetor
(Superseded to BS-692284)

Note: (Carb. to Elbow)

$4.99

$

In Stock, only 3 left!

0

52

Cub Cadet BS-270872

Gasket-Carburetor Mounting
(Superseded to BS-272554S)

$5.49

$

In Stock, only 4 left!

0

53

Cub Cadet BS-94637

Stud-Carburetor Mounting
(Superseded to BS-690227)

$7.99

$

In Stock, Qty 6

0

95

Cub Cadet BS-94098

Screw-Throttle
(Superseded to BS-691636)

$3.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-494382

Screw-Idle Speed
(Superseded to BS-398185)

$7.99

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-231789

Pin-Float Hinge
(Superseded to BS-690525)

$4.99

$

In Stock, only 1 left!

0

105

Cub Cadet BS-231790

Valve Assy.-Inlet Needle
(Superseded to BS-494788)

$9.99

$

In Stock, only 2 left!

0

106

Cub Cadet BS-281169

Inlet Valve Seat
(Superseded to BS-691901)

$8.99

$

Usually ships in 2-12 days

0

?108

Cub Cadet BS-22466

Valve-Choke

$

$

Currently unavailable

108A

UNKNOWN

$

$

Not available

111

Cub Cadet BS-262820

Spring-Choke Stop
(Superseded to BS-590931)

$5.49

$

In Stock, Qty 11

0

118

Cub Cadet BS-494383

Valve-Needle

$13.99

$

In Stock, only 1 left!

0

?121

Cub Cadet BS-494882

Carburetor Overhaul Kit

$

$

Not available

123

Cub Cadet BS-94616

Screw-Carburetor Mtg.
(Superseded to BS-690953)

$5.99

$

Usually ships in 2-12 days

0

125

Cub Cadet BS-494883

Carburetor Assembly

$

$

Not available

127

Plug-Welch

Note: (Sold in Kit Only).

$

$

Not available

130

Cub Cadet BS-224539

Valve-Throttle
(Superseded to BS-691750)

$9.49

$

Usually ships in 2-12 days

0

131

Cub Cadet BS-494379

Shaft and Lever-Throttle
(Superseded to BS-790901)

$38.99

$

In Stock, only 1 left!

0

133

Cub Cadet BS-494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

137

Cub Cadet BS-281165

Gasket-Float Bowl
(Superseded to BS-281165S)

$4.99

$

Usually ships in 2-12 days

0

138

Cub Cadet BS-281164

Washer-Float BowlScrew
(Superseded to BS-692255)

$5.49

$

In Stock, Qty 20+

0

141

Cub Cadet BS-495097

Shaft and Lever-Choke
(Superseded to BS-790905)

$45.99

$

Usually ships in 2-12 days

0

142

Cub Cadet BS-494876

Nozzle/Jet-Carburetor

$

$

Currently unavailable

147

Cub Cadet BS-231794

Pilot-Jet

$

$

Not available

164

Cub Cadet BS-213819

Elbow-Carburetor
(Superseded to BS-691711)

$

$

Not available

611

Cub Cadet BS-494451

Fuel Inlet Tube
(Superseded to BS-692317)

$6.49

$

In Stock, Qty 20+

0

634A

Cub Cadet BS-494453

Seal-Choke Shaft

$

$

Not available

634B

Cub Cadet BS-281167

Washer-Throttle Shaft

$

$

Currently unavailable

955

Cub Cadet BS-94642

Screw-Fuel Bowl
(Superseded to BS-691657)

$7.99

$

In Stock, only 1 left!

0

975

Cub Cadet BS-494378

Bowl Assy.-Carburetor
(Superseded to BS-495933)

$

$

Not available

?977

Cub Cadet BS-494385

Carburetor Gasket Kit
(Superseded to BS-697241)

$43.99

$

In Stock, only 1 left!

0

987

Cub Cadet BS-281166

Seal-Throttle Shaft
(Superseded to BS-691326)

$5.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-494385

Carburetor Gasket Set
(Superseded to BS-697241)

$43.99

$

In Stock, only 1 left!

0

Cub Cadet BS-393411

Gasket Set

$60.99

$

Usually ships in 2-12 days

0
