10281 - Gravely 42" Sicklebar Mower Attachment SICKLE MOWER 42" Parts Diagram

42" Sicklebar Mower Attachment

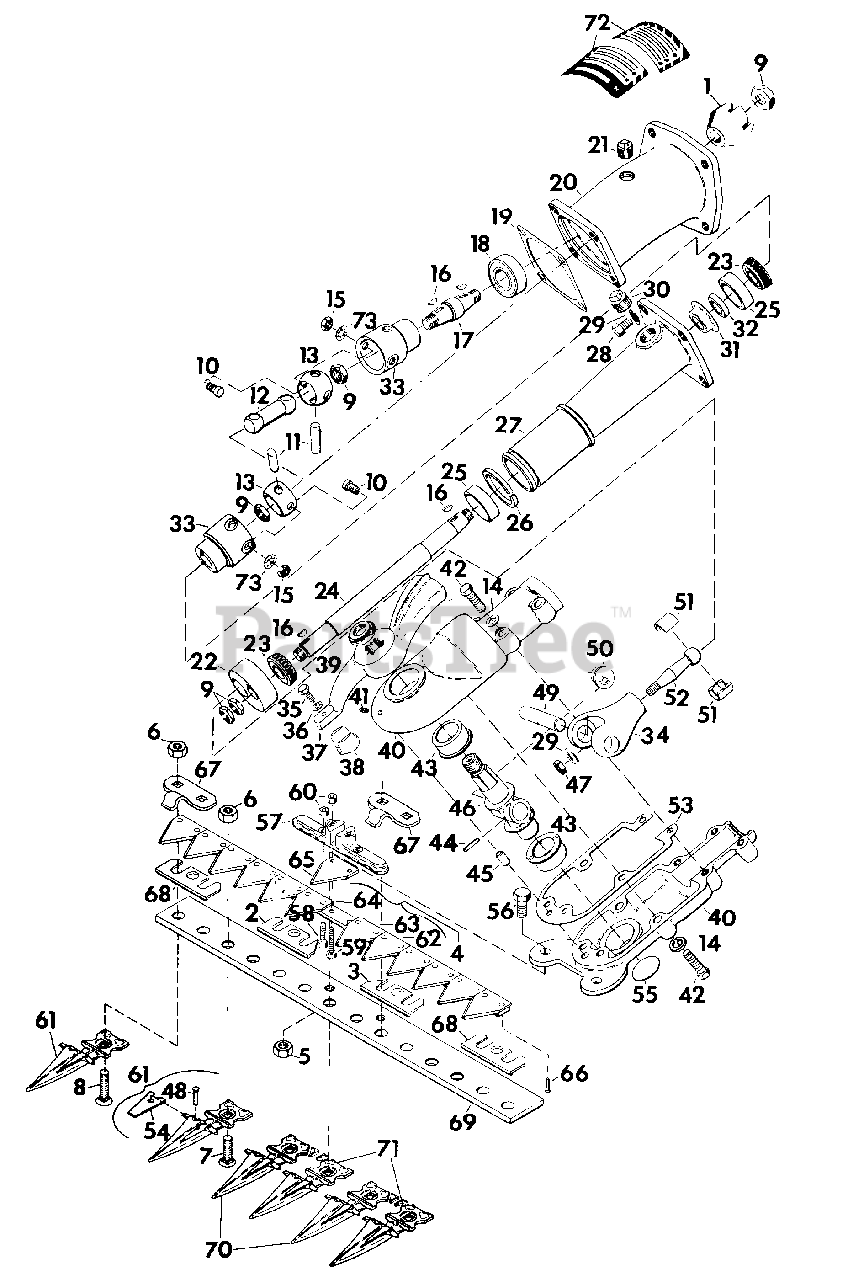

SICKLE MOWER 42" Parts Diagram

  • Title
1

Gravely 019592

CLUTCH, DOG P.T.O.
(Superseded to 08548000)

$

$

Not available

2

Gravely 020745

PLATE, WEAR R. H.
(Superseded to 08513200)

$

$

Not available

3

Gravely 020746

PLATE, WEAR L. H.
(Superseded to 08513300)

$22.99

$

In Stock, only 1 left!

0

4

Gravely 010293

KNIFE, ASSEMBLY 42-3" KNIVES
(Superseded to 21255000)

$

$

Not available

5

Gravely 120238

NUT, JAM 1/2-13
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 217501

NUT, HEX 7/16-14

$

$

Not available

7

Gravely 023282

BOLT, PLOW 7/16-14 X 1-3/4
(Superseded to 07021800)

$

$

Not available

8

Gravely 003304

BOLT, GUARD LG.
(Superseded to 07013000)

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 019918

NUT, LOCK 5/8-24
(Superseded to 06526200)

$

$

Not available

10

Gravely 013599

STUD, PIVOT
(Superseded to 08500900)

$

$

Not available

11

Gravely 013601

PIN, PIVOT
(Superseded to 08501100)

$

$

Not available

12

Gravely 013602

LINK
(Superseded to 08501200)

$

$

Not available

13

Gravely 013600

RING, CENTER
(Superseded to 08501000)

$

$

Not available

14

Gravely 120382

WASHER, LOCK 3/8 SP.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 013627

NUT, LOCK ESNA 3/8-24
(Superseded to 06526100)

$

$

Not available

16

Gravely 124549

KEY, WOODRUFF 3/16 X 3/4 HARD NO. 9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 013596

SHAFT, STUD
(Superseded to 08500700)

$

$

Not available

18

Gravely 013597

BEARING, BALL .984 X 2.047 X .590
(Superseded to 05418900)

$

$

Not available

19

Gravely 005056

GASKET, ATTACHMENT
(Superseded to 08584900)

$3.99

$

In Stock, Qty 8

0

20

Gravely 003197

HOUSING, UNIVERSAL
(Superseded to 08576300)

$

$

Not available

21

Gravely 013408

PLUG, 1/2 SQ. HD.
(Superseded to 07015900)

$

$

Not available

22

Gravely 023711

DISC, CRANK
(Superseded to 08530600)

$

$

Not available

23

Gravely 013594

BEARING, ROLLER CONE
(Superseded to 05416100)

$

$

Not available

24

Gravely 013603

CRANKSHAFT
(Superseded to 08501300)

$

$

Not available

25

Gravely 013595

BEARING, ROLLER RACE
(Superseded to 05416400)

$

$

Not available

26

Gravely 003173

CORK SEAL
(Superseded to 08501600)

$

$

Not available

27

Gravely 013604

COLUMN, DRIVE
(Superseded to 08501400)

$

$

Not available

28

Gravely 180173

BOLT, HEX 1/2-13 X 1
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

29

Gravely 120384

WASHER, LOCK 1/2 SP.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

30

Gravely 013607

PLUG, 3/4 N.P.T. SQ. HD. PIPE VENTED
(Superseded to 07016000)

$

$

Not available

31

Gravely 003151

RETAINER, OIL SEAL
(Superseded to 08575900)

$

$

Not available

32

Gravely 012987

SEAL, OIL BEARING CAP
(Superseded to 05621800)

$9.99

$

Usually ships in 4-12 days

0

33

Gravely 013598

CUP, UNIVERSAL
(Superseded to 08500800)

$

$

Not available

34

Gravely 010442

CRANK YOKE ASSEMBLY
(Superseded to 08580500)

$

$

Not available

35

Gravely 003154

BOLT, SPECIAL 1/4-28 X 1 GR. 8
(Superseded to 07012900)

$3.49

$

In Stock, only 1 left!

0

36

Gravely 120423

WASHER, LOCK 1/4 INT. TOOTH
(Superseded to 06305200)

$3.49

$

Usually ships in 4-12 days

0

37

Gravely 003117

LEVER, KNIFE ACTUATING
(Superseded to 08575600)

$

$

Not available

38

Gravely 003182

TIP, WEARING
(Superseded to 08576200)

$68.99

$

Usually ships in 4-12 days

0

39

Gravely 013619

NUT, LOCK 1-14 WASHER INSERT
(Superseded to 00181818)

$

$

Not available

40

Gravely 010476

CRANK HOUSING ASSEMBLY
(Superseded to 08580600)

$

$

Not available

41

Gravely 103877

PLUG, PIPE 1/8 IN., SQ. HD. STEEL
(Superseded to 07023700)

$

$

Not available

42

Gravely 180130

BOLT, HEX 3/8-16 X 2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

43

Gravely 013550

BUSHING, FLANGE LEVER SHAFT
(Superseded to 05516800)

$

$

Not available

44

Gravely 414525

PIN, SPRING 3/16 X 1-3/8
(Superseded to 06706500)

$

$

Not available

45

Gravely 003184

PIN, DOWEL 3/8 X 3/4
(Superseded to 05809500)

$

$

Not available

46

Gravely 013606

SHAFT, ACTUATING LEVER
(Superseded to 08501500)

$

$

Not available

47

Gravely 124934

NUT, JAM 1/2-20
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

48

Gravely 014119

RIVET, SINGLE
(Superseded to 20155400)

$5.49

$

In Stock, only 2 left!

0

49

Gravely 003176

PIN KNUCKLE
(Superseded to 08576000)

$

$

Not available

50

Gravely 003178

BUSHING, FLANGE KNUCKLE PIN
(Superseded to 05528500)

$

$

Not available

51

Gravely 003145

BEARING, BALL STUD
(Superseded to 08575800)

$

$

Not available

52

Gravely 003144

STUD, BALL
(Superseded to 08575700)

$

$

Not available

53

Gravely 003191

GASKET, HOUSING
(Superseded to 08572100)

$14.99

$

Usually ships in 4-12 days

0

54

Gravely 014118

PLATE, SINGLE LEDGER
(Superseded to 20155300)

$

$

Not available

55

Gravely 003198

PLUG, EXPANSION
(Superseded to 08576400)

$

$

Not available

56

Gravely 180177

BOLT, HEX 1/2-13 X 1-1/2
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

57

Gravely 003308

BRACKET, DRIVE KNIFE
(Superseded to 08576700)

$

$

Not available

58

Gravely 181570

BOLT, HEX 1/4-28 X 1-1/8
(Superseded to 21059500)

$

$

Not available

59

Gravely 181577

BOLT, HEX 1/4-28 X 1-3/4
(Superseded to 05936700)

$3.49

$

In Stock, only 4 left!

0

60

Gravely 454750

NUT, LOCK 1/4-28 WASHER INSERT HEX
(Superseded to 06526900)

$5.99

$

In Stock, only 3 left!

0

61

Gravely 014902

FINGER, SHEAR ASSEMBLY
(Superseded to 08502900)

$45.99

$

Usually ships in 4-12 days

0

62

Gravely 003206

KNIFE, SECTION
(Superseded to 08576500)

$6.99

$

Usually ships in 4-12 days

0

63

Gravely 013609

KNIFE, BOX LEFT SECTION
(Superseded to 21096300)

$

$

Not available

64

Gravely 013610

KNIFE, BOX RIGHT SECTION
(Superseded to 21096400)

$

$

Not available

65

Gravely 013608

KNIFE, BOX CENTER SECTION
(Superseded to 08501700)

$14.99

$

Usually ships in 4-12 days

0

66

Gravely 189290

RIVET, KNIFE
(Superseded to 21060900)

$

$

Not available

67

Gravely 003309

CLIP, KNIFE
(Superseded to 08576800)

$

$

Not available

68

Gravely 020504

PLATE, WEAR
(Superseded to 08512500)

$14.99

$

Usually ships in 4-12 days

0

69

Gravely 003301

BAR, GUARD
(Superseded to 08576600)

$

$

Not available

72

Gravely 021369

DECAL, SICKLE MOWER WARNING
(Superseded to 05201300)

$

$

Not available

73

Gravely 138542

WASHER LOCK 3/8 INT TOOTH
(Superseded to 06306000)

$

$

Not available

NS

Gravely 010295

KNIFE ASSEMBLY 60" 3" KNIVES
(Superseded to 20040900)

$

$

Not available

NS

Gravely 010298

KNIFE ASSEMBLY

$

$

Not available

NS

Gravely 014117

BAR, GUARD
(Superseded to 20155200)

$

$

Not available
