1028 E (1696043) - John Deere 28" Snow Thrower (2011) Chute & Rotation Group Parts Diagram

28" Snow Thrower

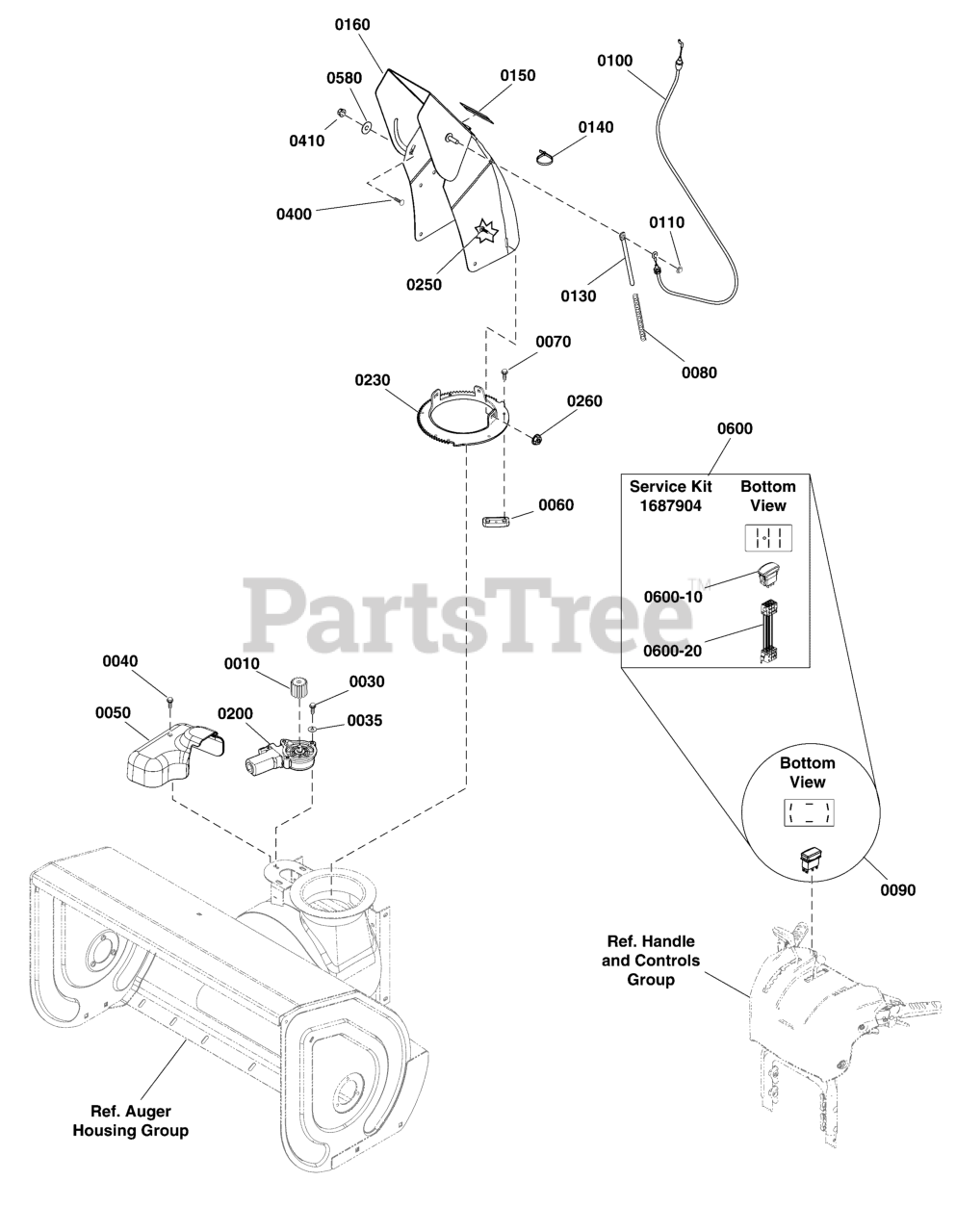

Chute & Rotation Group Parts Diagram

  • Title

0010

Murray 1728967SM

PINION, 1-1/4

$17.99

$

In Stock, only 4 left!

0

0030

Murray 1739621YP

SCREW, Torx Button Head, M5 x .8 x 14

$4.49

$

In Stock, Qty 13

0

0035

Murray 7091552SM

WASHER, Flat, 7/32 x 1/2

$3.99

$

In Stock, Qty 14

0

0040

Murray 1925592SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0050

Murray 1752877YP

COVER, Electric Chute Rotation

$16.99

$

In Stock, only 1 left!

0

0060

Murray 7011938SM

RETAINER, Spout

$

$

Not available

0070

Murray 1960001SM

CAPSCREW, Hex Washer Head, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

0080

Murray 1734647SM

SPRING, Compression, 6-1/16
(Superseded to 703135)

$3.99

$

Usually ships in 2-12 days

0

0090

Murray 1737378YP

SWITCH, Chute Rotation, 6 Prong
(Superseded to 1687904)

$82.99

$

In Stock, Qty 12

0

0100

Murray 1750623YP

CABLE & SPRING ASSEMBLY, Auger Drive, R.H.

$49.99

$

In Stock, Qty 5

0

0110

Murray 1932718SM

NUT, Push, 5/16 Dia.
(Superseded to 704028)

$5.49

$

In Stock, only 3 left!

0

0130

Murray 1734708ASM

ROD, Spring Guide, 5/16 x 5-7/8

$13.99

$

Usually ships in 2-12 days

0

0140

Murray 1701011SM

TIE, Self Locking, 15"

$5.49

$

In Stock, only 2 left!

0

0150

Murray 1734738SM

DECAL, Hinge

$10.99

$

Usually ships in 2-12 days

0

0160

Murray 1738230FYP

CHUTE ASSEMBLY
(Superseded to 1752840FYP)

$125.99

$

Usually ships in 2-12 days

0

0200

Murray 1739309YP

MOTOR, Spout Rotator
(Superseded to 708703)

$86.99

$

In Stock, Qty 7

0

0230

Murray 1737962BMYP

GEAR, Chute

$40.99

$

Usually ships in 2-12 days

0

0250

Murray 7091530SM

BOLT, Carriage, 1/4 x 3/4, G5

$3.99

$

In Stock, only 3 left!

0

0260

Murray 2860694SM

NUT, Hex Flange, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0270

Murray 2860604SM

SCREW, Torx Button HEad, M5 x 5/64 x 14

$4.49

$

Usually ships in 2-12 days

0

0280

Murray 1960745SM

NUT, Hex Flange Whiz Lock, #10-24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

0360

Murray 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0400

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0410

Murray 1739305YP

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0580

Murray 2860210SM

WASHER, Nylon, 3/8

$4.49

$

In Stock, only 2 left!

0

0600

Murray 1739331YP

CLIP, Cable
(Superseded to 703174)

$4.49

$

Usually ships in 2-12 days
