1028 (31AH7L74766) - Troy-Bilt Storm Tracker 28" Track Drive Snow Thrower (2005) Handle Parts Diagram

Storm Tracker 28" Track Drive Snow Thrower

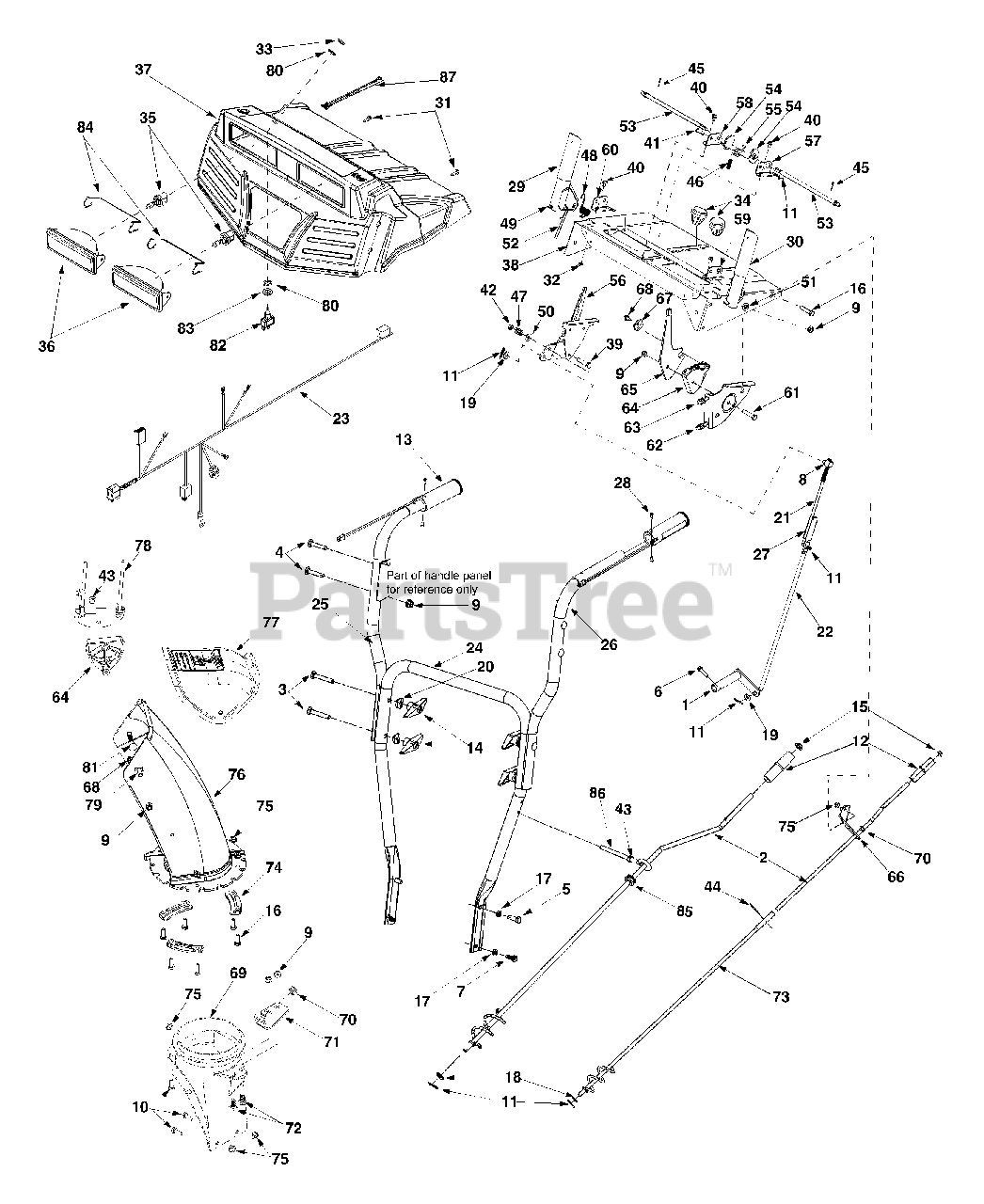

Handle Parts Diagram

  • Title

1

Troy-Bilt 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

Troy-Bilt 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 747-0737

Chute Directional Control
(Superseded to 747-0737-0637)

Note: Model 1028

Variations

Troy-Bilt 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 705-5204A

Chute Directional Control
(Superseded to 984-0022)

Note: Model 1130

$99.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 710-0449

Carriage Screw 5/16-18 x 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0458

Carriage Bolt 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

5

Troy-Bilt 710-0643

Hex Bolt 5/16-18 x 1.0

$6.99

$

In Stock, Qty 5

0

6

Troy-Bilt 710-0788

TT Screw 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-1880

Hex Bolt 5/16-18 x 0.75

$4.99

$

In Stock, Qty 11

0

8

Troy-Bilt 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 712-04063

Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0703

Carriage Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 720-0201A

Chute Directional Control Knob

$10.99

$

In Stock, Qty 5

0

13

Troy-Bilt 725-1757

Heated Grip

Note: Model 1028

$111.99

$

Usually ships in 3-6 days

0

Troy-Bilt 720-0274

Grip

Note: Model 1130

$11.99

$

In Stock, Qty 11

0

14

Troy-Bilt 720-0284

Handle Knob Assembly

$6.99

$

In Stock, Qty 9

0

15

Troy-Bilt 726-0100

Push Cap

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-0597

Hex Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 14

0

17

Troy-Bilt 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-0185

Flat Washer

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 7

0

21

Troy-Bilt 747-0620A

Upper Shift Rod

$11.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 747-0621

Lower Shift Rod

$

$

Not available

23

Troy-Bilt 629-04007

Heated Grips Harness Ass'y
(Superseded to 929-04007)

Note: Model 1028

$

$

Not available

24

Troy-Bilt 749-04138

Lower Handle
(Superseded to 749-04138A)

Variations

Troy-Bilt 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 749-0952A

Upper Handle RH

Variations

Troy-Bilt 749-0952A-0637

HANDLE-UPPER-RH - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 749-0952A-0638

HANDLE-UPPER-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 749-0952A-0665

HANDLE-UPPER-RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

26

Troy-Bilt 749-0953A

Upper Handle LH

Variations

Troy-Bilt 749-0953A-0637

HANDLE-UPPER-LH - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 749-0953A-0638

HANDLE-UPPER-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 749-0953A-0665

HANDLE-UPPER-LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

27

Troy-Bilt 750-0963

Shift Rod Connector
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

28

Troy-Bilt 710-0837

Screw, #10-16 x.625

$4.49

$

In Stock, Qty 5

0

29

Troy-Bilt 684-0036A

Handle Engagement Assembly RH

$44.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 684-0037B

Handle Engagement Assembly LH

$38.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 710-1003

B Screw #10-16 x 0.625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 712-0271

Hex Sems Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 712-0693

Jam Nut, 15/32-32

Note: Model 1028

$

$

Not available

34

Troy-Bilt 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

35

Troy-Bilt 725-1759

Halogen Lamp, 50W, 12V
(Superseded to 925-1759)

Note: Model 1130 equipped with one (1)

$51.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 725-1672

Lamp Housing
(Superseded to 925-1672)

Note: Model 1130 equipped with one (1)

$89.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 731-04068

Handle Panel
(Superseded to 931-04068)

Note: Model 1028

$

$

Not available

MTD 731-04067

Handle Panel

Note: Model 1130

$

$

Not available

38

Troy-Bilt 684-0102

Handle Panel Assembly w/Tilt
(Superseded to 684-0102A)

Variations

Troy-Bilt 684-0102-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0650

PANEL ASM:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0662

PANEL ASM:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0665

PANEL ASM:HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0689

PANEL ASM:HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0716

HANDLE PANEL ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0721

PANEL ASM:HANDLE - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 710-0459A

Hex Bolt 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

40

Troy-Bilt 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 712-0116

Jam Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

43

Troy-Bilt 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 714-0145

Click Pin

Note: Model 1028

$4.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 714-0507

Cotter Pin

$4.49

$

In Stock, Qty 12

0

46

Troy-Bilt 732-0145

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

48

Troy-Bilt 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

49

Troy-Bilt 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

50

Troy-Bilt 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 736-0509

Flat Washer

$6.99

$

In Stock, only 1 left!

0

52

Troy-Bilt 746-0778

Drive Cable Z- Fitting
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

53

Troy-Bilt 747-0877

Cam Rod

$22.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 748-0362

Handle Lock Cam

$7.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 748-0363

Handle Lock Pawl
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

Troy-Bilt 784-5619A-0637

KIT-SHIFT HANDLE:S - POWDER BLACK (0637)

$

$

Not available

$

$

57

Troy-Bilt 784-5679

Handle Support Bracket LH
(Superseded to 784-5679-0637)

Variations

Troy-Bilt 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 784-5680

Handle Support Bracket RH
(Superseded to 784-5680-0637)

Variations

Troy-Bilt 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 784-5681

Support Bracket LH

Variations

Troy-Bilt 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

60

Troy-Bilt 784-5682

Support Bracket RH
(Superseded to 784-5682-0637)

Variations

Troy-Bilt 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 710-0805

Hex Bolt 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

62

Troy-Bilt 746-0901

Chute Deflector Cable w/Clip
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 746-0896

Chute Deflector Control Cable
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 731-1313C

Chute Cable Guide

$11.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 784-5604

Chute Distance Control
(Superseded to 784-5604A-0637)

Variations

Troy-Bilt 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 705-5266

Chute Directional Control Bracket
(Superseded to 705-5266-0637)

Note: Model 1028

Variations

Troy-Bilt 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 736-0506A

Special Washer

$

$

Not available

68

Troy-Bilt 710-0895

Hi-Lo Screw 1/4-15 x 0.75

$6.49

$

In Stock, only 4 left!

0

69

Troy-Bilt 731-1379C

Chute Adapter
(Superseded to 731-1379D)

$65.99

$

In Stock, Qty 8

0

70

Troy-Bilt 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

71

Troy-Bilt 784-5647

Chute Directional Control Bracket
(Superseded to 784-5647-0637)

Variations

Troy-Bilt 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

72

Troy-Bilt 710-0451

Carriage Bolt 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

73

Troy-Bilt 684-0053B

Lower Chute Directional Control
(Superseded to 684-0053B-0637)

Note: Model 1028

Variations

Troy-Bilt 684-0053B-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

74

Troy-Bilt 731-0851A

Flange Keeper

$4.49

$

In Stock, Qty 20+

0

75

Troy-Bilt 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

76

Troy-Bilt 731-1300B

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

77

Troy-Bilt 731-04427A

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 6

0

78

Troy-Bilt 784-5594

Cable Bracket

Variations

Troy-Bilt 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

Troy-Bilt 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

Troy-Bilt 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 710-04071

Carriage Bolt 5/16-18 x 1.0

$4.49

$

In Stock, Qty 13

0

80

Troy-Bilt 716-0398

Toggle Switch Lock Ring

Note: Model 1028

$

$

Not available

81

Troy-Bilt 710-0262

Carriage bolt 5/16-18 x 1.5

$3.99

$

In Stock, Qty 11

0

82

Troy-Bilt 725-1756

Single Throw Toggle Switch
(Superseded to 925-1756)

Note: Model 1028

$31.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 736-0226

Flat Washer
(Superseded to 936-0226)

Note: Model 1028

$3.99

$

In Stock, only 1 left!

0

84

Troy-Bilt 747-1136

Headlight Retainer

Note: Model 1130 equipped with one (1)

$11.99

$

Usually ships in 3-6 days

0

85

Troy-Bilt 735-0234

Rubber Grommet

Note: Model 1130

$5.49

$

In Stock, only 2 left!

0

86

Troy-Bilt 747-0697

Eye Bolt

Note: Model 1130

$8.49

$

In Stock, only 1 left!

0

87

Troy-Bilt 629-0059

Light Harness
(Superseded to 929-0059)

Note: Model 1130

$100.99

$

Usually ships in 3-6 days

0
