1028 (31AH7L74766) - Troy-Bilt Storm Tracker 28" Track Drive Snow Thrower (2005) General Assembly Parts Diagram

Storm Tracker 28" Track Drive Snow Thrower

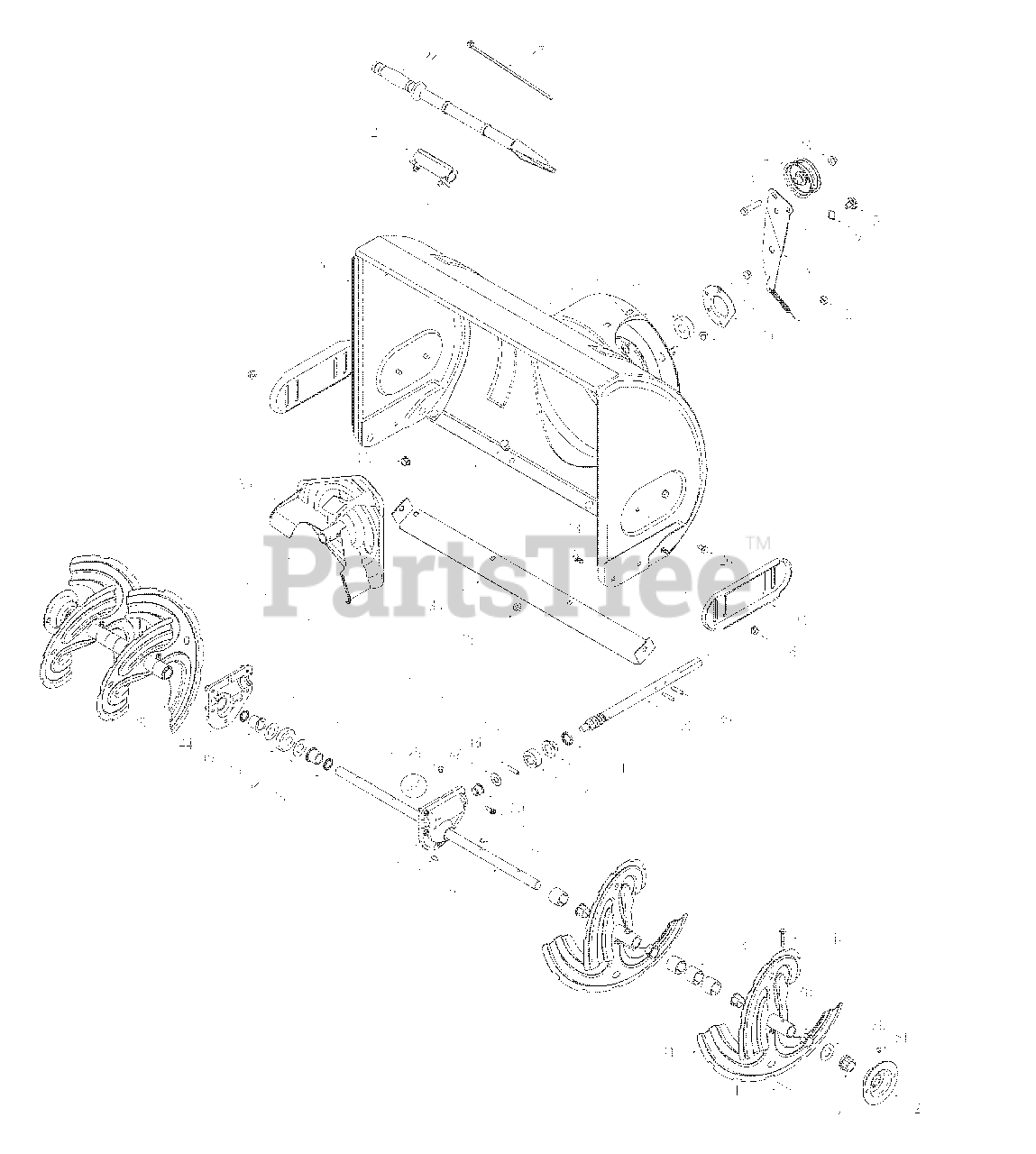

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 714-0507

Cotter Pin

$4.49

$

In Stock, Qty 12

0

2

Troy-Bilt 756-0178

Flat Idler

$20.99

$

In Stock, Qty 6

0

3

Troy-Bilt 784-5632B

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

Troy-Bilt 784-5632B-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 2 left!

0

$32.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 710-0347

Hex Cap Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 738-0281

Shoulder Screw

$10.99

$

In Stock, Qty 7

0

6

Troy-Bilt 736-0174

Wave Washer

$6.99

$

In Stock, Qty 12

0

7

Troy-Bilt 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

9

Troy-Bilt 710-0642

Self Tapping Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 711-04283

Auger Axle, 28"
(Superseded to 711-06145)

$89.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 05931A

Housing

$10.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 741-0309

Ball Bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 710-0451

Carriage Bolt, 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 705-5226

Chute Reinforcement

Variations

Troy-Bilt 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

Troy-Bilt 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 684-04132

Auger Housing Assembly, 28"
(Superseded to 684-04132A-0638)

Variations

Troy-Bilt 684-04132-0638

HOUSING ASM:AUGER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

16

Troy-Bilt 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 5

0

17

Troy-Bilt 714-0161

Hi-Pro Key, 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 715-04021

Dowel Pin

$4.49

$

In Stock, Qty 16

0

19

Troy-Bilt 717-0528A

Worm Gear, 20-tooth
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 717-0526

Worm Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 5

0

21

Troy-Bilt 731-2635

Clean-Out Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 731-2643

Clean-Out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 16

0

23

Troy-Bilt 718-04071

Thrust Collar

$7.99

$

In Stock, Qty 9

0

24

Troy-Bilt 790-00087

Bearing Housing
(Superseded to 790-00087A-0637)

Variations

Cub Cadet 790-00087A-0637

Bearing Housing, 1" - POWDER BLACK

$22.99

$

In Stock, Qty 8

0

$22.99

$

In Stock, Qty 8

0

25

Troy-Bilt 721-0325

Grease Plug

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 710-0726

Hex Screw 5/16-12

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 790-00091

Skid Shoe

Variations

Troy-Bilt 790-00091-0638

Snow Slide Shoe, Red - MTD/TROY-BILT RED

$30.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00091-0637

Snow Slide Shoe, Black - POWDER BLACK

$30.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00091-0606

Snow Slide Shoe, Orange - MAJESTIC ORANGE

$27.99

$

In Stock, Qty 16

0

Troy-Bilt 790-00091-4033

Snow Slide Shoe, Flint - FLINT MICA

$30.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00091-0691

Snow Slide Shoe, Black - BLACK JACK

$30.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00091-0650

Snow Slide Shoe - RED METALLIC

$30.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00091-4021

Snow Slide Shoe, Yellow - CUB YELLOW 2

$28.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00091-0662

Snow Slide Shoe, Gray - OYSTER GRAY

$28.99

$

In Stock, only 1 left!

0

Troy-Bilt 790-00091-0709

Snow Slide Shoe, Dark Green - MASTERCRAFT GREEN

$28.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00091-0667

SLIDE SHOE - MIDNIGHT BLUE

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 721-0327

Grease Seal

$6.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 736-0351

Flat Washer,.76 x 1.5 x.030

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 790-00118

Shave Plate, 28"

Variations

Troy-Bilt 790-00118-0637

Shave Plate, 28" Powder Black - POWDER BLACK

$37.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00118-0606

Shave Plate, 28" - MAJESTIC ORANGE

$37.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00118-0638

Shave Plate, 28" Red - MTD/TROY-BILT RED

$37.99

$

In Stock, Qty 20+

0

Cub Cadet 790-00118-4044

Shave Plate, 28" - CRAFTSMAN RED

$37.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00118-4044

Shave Plate, 28" - CRAFTSMAN RED

$37.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00118-4021

Shave Plate, 28" - CUB YELLOW 2

$37.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00118-0691

Shave Plate, 28" - BLACK JACK

$37.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00118-0650

PLATE-SHAVE 28" - RED METALLIC

$37.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00118-0665

Shave Plate, 28" - YARDMAN GREEN

$37.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00118-0709

PLATE-SHAVE 28" - MASTERCRAFT GREEN

$37.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00118-0662

Shave Plate, 28" - OYSTER GRAY

$37.99

$

In Stock, Qty 20+

0

$35.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 710-0451

Carriage Bolt 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 684-0065

Impeller Assembly
(Superseded to 984-0065-0637)

Variations

Troy-Bilt 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$90.99

$

In Stock, Qty 6

0

Troy-Bilt 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$90.99

$

In Stock, Qty 6

0

$90.99

$

In Stock, Qty 6

0

36

Troy-Bilt 715-0114

Pin

$9.49

$

In Stock, Qty 5

0

37

MTD 618-04206

Gear Assembly Complete, 28"

$

$

Not available

38

Troy-Bilt 684-04108

Spiral Assembly - RH
(Superseded to 684-04108A)

Variations

Troy-Bilt 684-04108-0637

Auger Spiral Assembly, RH - POWDER BLACK (0637)

$94.99

$

In Stock, Qty 10

0

Troy-Bilt 684-04108-0638

Auger Spiral Assembly, RH - MTD/TROY-BILT RED (0638)

$94.99

$

In Stock, Qty 10

0

Troy-Bilt 684-04108-0499

Auger Spiral Assembly, RH - CUB BEIGE (0499)

$94.99

$

In Stock, Qty 10

0

Troy-Bilt 684-04108-4028

Auger Assembly, 21" RH - SEARS YELLOW (4028)

$92.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04108-0606

Auger Spiral Assembly, RH - MAJESTIC ORANGE (0606)

$92.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04108-0629

Auger Spiral Assembly, RH - SILVER FLAKE (0629)

$94.99

$

In Stock, Qty 10

0

Troy-Bilt 684-04108-4044

Auger Spiral Assembly, RH - CRAFTSMAN RED (4044)

$94.99

$

In Stock, Qty 10

0

Troy-Bilt 684-04108-0650

Auger Spiral Assembly, RH - RED METALLIC (0650)

$94.99

$

In Stock, Qty 10

0

Troy-Bilt 684-04108-0662

Auger Spiral Assembly, RH - OYSTER GRAY (0662)

$94.99

$

In Stock, Qty 10

0

Troy-Bilt 684-04108-0674

Auger Spiral Assembly, RH - YARDMAN YELLOW (0674)

$94.99

$

In Stock, Qty 10

0

Troy-Bilt 684-04108-0709

SPIRAL ASM-AUGER RH - MASTERCRAFT GREEN (0709)

$94.99

$

In Stock, Qty 10

0

Troy-Bilt 684-04108-0716

Auger Spiral Assembly, RH - CUB YELLOW-99 (0716)

$94.99

$

In Stock, Qty 10

0

Troy-Bilt 684-04108-0717

AUGER ASM-RH - SILVER MIST (0717)

$94.99

$

In Stock, Qty 10

0

Troy-Bilt 684-04108-0731

Auger Spiral Assembly, RH - YELLOW JACKET (0731)

$94.99

$

In Stock, Qty 10

0

Troy-Bilt 684-04108-4021

Auger Spiral Assembly, RH - CUB YELLOW 2 (4021)

$94.99

$

In Stock, Qty 10

0

Troy-Bilt 684-04108-4033

SPIRAL ASM-AUGER RH - FLINT MICA (4033)

$94.99

$

In Stock, Qty 10

0

Troy-Bilt 684-04108-4041

Auger Spiral Assembly, RH - PURE ORANGE (4041)

$94.99

$

In Stock, Qty 10

0

$76.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 684-04107

Spiral Assembly - LH
(Superseded to 684-04107A)

Variations

Troy-Bilt 684-04107-0637

Auger Spiral Assembly, LH - POWDER BLACK (0637)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-0638

Auger Spiral Assembly, LH - MTD/TROY-BILT RED (0638)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-0499

Auger Spiral Assembly, LH - CUB BEIGE (0499)

$87.99

$

In Stock, Qty 6

0

Troy-Bilt 684-04107-0662

Auger Spiral Assembly, LH - OYSTER GRAY (0662)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-0731

Auger Spiral Assembly, LH - YELLOW JACKET (0731)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-4028

Auger Spiral Assembly, LH - SEARS YELLOW (4028)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-0606

Auger Spiral Assembly, LH - MAJESTIC ORANGE (0606)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-0629

Auger Spiral Assembly, LH - SILVER FLAKE (0629)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-0650

Auger Spiral Assembly, LH - RED METALLIC (0650)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-0674

SPIRAL ASM-AUGER LH - YARDMAN YELLOW (0674)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-0689

Auger Spiral Assembly, LH - POLO GREEN (0689)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-0709

AUGER ASM-LH - MASTERCRAFT GREEN (0709)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-0716

Auger Spiral Assembly, LH - CUB YELLOW-99 (0716)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-0717

Auger Spiral Assembly, LH - SILVER MIST (0717)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-4021

Auger Spiral Assembly, LH - CUB YELLOW 2 (4021)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-4033

SPIRAL ASM-AUGER LH - FLINT MICA (4033)

$87.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04107-4041

Auger Spiral Assembly, LH - PURE ORANGE (4041)

$89.99

$

In Stock, Qty 20+

0

Troy-Bilt 684-04107-4044

Auger Spiral Assembly, LH - CRAFTSMAN RED (4044)

$89.99

$

In Stock, Qty 20+

0

$72.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 738-04124

Shear Pin,.25 x 1.50
(Superseded to 738-04124A)

$1.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 731-04870

Spacer, 1.25OD x.75ID x 1.00 Lg.

$4.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 618-0123

RH Housing
(Superseded to 918-0123A)

Note: (Incl ref. 45 & 46)

$52.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 721-0179

Oil Seal

$8.99

$

In Stock, only 1 left!

0

46

Troy-Bilt 741-0661A

Flange Bearing
(Superseded to 741-0661B)

$10.99

$

In Stock, Qty 11

0

47

Troy-Bilt 618-0124

LH Housing
(Superseded to 918-0124A)

Note: (Incl ref. 45 & 46)

$52.99

$

In Stock, Qty 17

0

48

Troy-Bilt 736-3084

Flat Washer,.51 x 1.12 x.06

$4.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 741-0662

Flange Bearing,.75 x 1.0 x.59

$10.99

$

In Stock, Qty 18

0

50

Troy-Bilt 741-0663

Flange Bearing,.503 ID x.75 OD

$9.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 737-3000

Lube Fitting, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0
