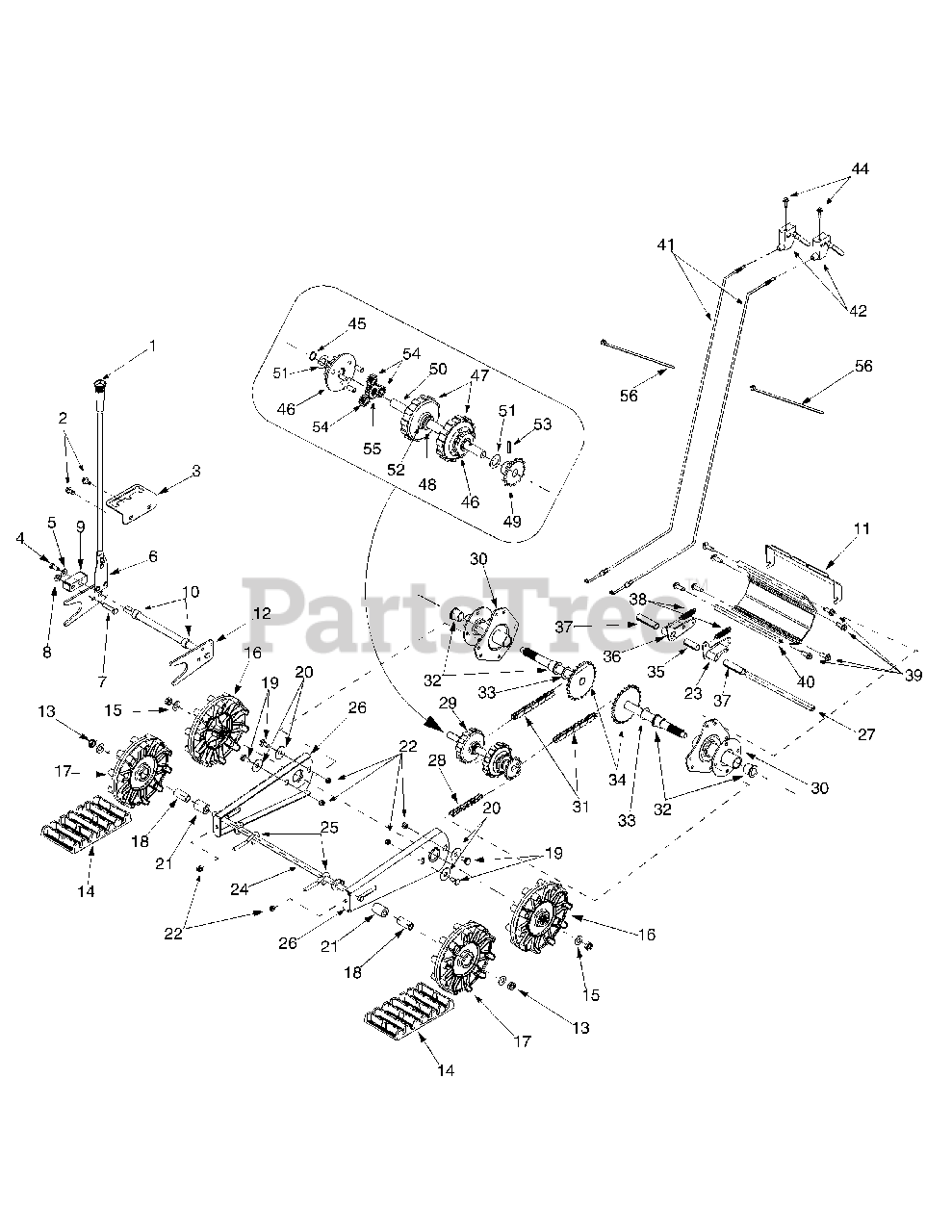

1028 (31AH7L74766) - Troy-Bilt Storm Tracker 28" Track Drive Snow Thrower (2005-2) Drive Parts Diagram

Storm Tracker 28" Track Drive Snow Thrower

Drive Parts Diagram

  • Title

1

Troy-Bilt 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

2

Troy-Bilt 710-0604A

Tap Screw, 5/16-12 x.625

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 784-5642

Track Lockout Plate

Variations

Troy-Bilt 784-5642-0637

PLATE-TRACK LOCKOU - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

Troy-Bilt 784-5642-0483

PLATE-TRACK LOCKOU - CHARCOAL GRAY (0483)

$

$

Not available

Troy-Bilt 784-5642-0498

PLATE-TRACK LOCKOU - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 784-5642-0650

PLATE-TRACK LOCKOU - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 784-5642-0665

PLATE-TRACK LOCKOU - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 784-5642-0716

PLATE-TRACK LOCKOU - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 784-5642-0721

PLATE-TRACK LOCKOU - SEARS RED (0721)

$

$

Not available

Troy-Bilt 784-5642-4033

PLATE-TRACK LOCKOU - FLINT MICA (4033)

$

$

Not available

Troy-Bilt 784-5642-4044

PLATE-TRACK LOCKOU - CRAFTSMAN RED (4044)

$

$

Not available

$17.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0157

Hex Cap Screw, 5/16-24 x.75

$4.49

$

In Stock, Qty 15

0

5

Troy-Bilt 736-0242

Bell Washer,.34 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 684-0038

Track Lock Handle Assembly

Variations

Troy-Bilt 684-0038-0637

Handle Assembly, Trackloc - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0038-0638

Handle Assembly, Trackloc - MTD/TROY-BILT RED (0638)

$58.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0038-4021

HANDLE ASM-TRACKLOC - CUB YELLOW 2 (4021)

$58.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0038-0665

HANDLE ASM-TRACKLOC - YARDMAN GREEN (0665)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-0459A

Hex Cap Screw, 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

8

Troy-Bilt 712-0214

Hex Nut, 3/8-24

$6.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 748-0353A

Lift Shaft Drive

$21.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 750-0547

Spacer,.628 ID x.875 OD x.5

$5.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 784-5609

Steering Cable Bracket

Variations

Troy-Bilt 784-5609-0483

BRACKET-STEERING - CHARCOAL GRAY (0483)

$

$

Not available

Troy-Bilt 784-5609-0498

BRACKET-STEERING - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 784-5609-0499

BRACKET-STEERING - CUB BEIGE (0499)

$

$

Not available

Troy-Bilt 784-5609-0637

BRACKET-STEERING - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 784-5609-0638

BRACKET-STEERING - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 784-5609-0662

BRACKET-STEERING - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 784-5609-0691

BRACKET-STEERING - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 784-5609-0692

STEERING BRACKET - AGWAY BLUE (0692)

$

$

Not available

Troy-Bilt 784-5609-0716

BRACKET-STEERING - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 784-5609-0721

BRACKET-STEERING - SEARS RED (0721)

$

$

Not available

Troy-Bilt 784-5609-4021

BRACKET-STEERING - CUB YELLOW 2 (4021)

$

$

Not available

Troy-Bilt 784-5609-4033

BRACKET-STEERING - FLINT MICA (4033)

$

$

Not available

Troy-Bilt 784-5609-4044

BRACKET-STEERING - CRAFTSMAN RED (4044)

$

$

Not available

$

$

12

Troy-Bilt 684-0009

Track Pivot Rod Assembly
(Superseded to 684-0009A)

Variations

Troy-Bilt 684-0009-0721

ROD ASSY PIVOT - SEARS RED (0721)

$52.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0009-4021

ROD ASSY PIVOT - CUB YELLOW 2 (4021)

$52.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0009-4033

ROD ASSY PIVOT - FLINT MICA (4033)

$52.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 712-0346

Jam Nut, 1/2-20

$4.99

$

In Stock, Qty 6

0

14

Troy-Bilt 731-1292

Snow Track

$291.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 736-0272

Flat Washer,.5 x 1 x.06

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 731-1538A

Track Drive Wheel

$36.99

$

In Stock, Qty 6

0

17

Troy-Bilt 631-0032

Track Idler Wheel
(Superseded to 631-0032A)

$45.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 750-0995

Spacer,.51 ID x.75 OD x 1.67

$16.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 738-0140

Screw,.435 x.178-5/16 x.56

$5.99

$

In Stock, Qty 15

0

20

Troy-Bilt 736-0406

Flat Washer,.442 x 1.38 x.06
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

21

Troy-Bilt 750-0909

Spacer,.51 ID x 1 OD x 1.34

$9.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 618-0044

LH Dogg Assembly

$24.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 684-0024

Idler Axle Assembly
(Superseded to 753-05977)

Variations

Troy-Bilt 684-0024-0637

Replacement Kit, 6 - POWDER BLACK (0637)

$100.99

$

Usually ships in 3-6 days

0

$100.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 710-1231

Eye Bolt, 5/16-18 x 3

$

$

Not available

26

Troy-Bilt 784-5639

Track Side Plate

Variations

Troy-Bilt 784-5639-0637

PLATE-TRACK SIDE - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

Troy-Bilt 784-5639-0638

PLATE-TRACK SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

$37.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 711-0911

Actuator Shaft

$

$

Not available

28

Troy-Bilt 713-0233

Chain

$41.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 618-0169A

Track/Steering Shaft Ass’y
(Superseded to 918-0169B)

$345.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 683-0024

Track Hub Ass’y
(Superseded to 683-0024-0637)

Variations

Troy-Bilt 683-0024-0637

Track Hub Assembly - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 713-0437

Chain

$37.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 741-0339

Flange Bearing
(Superseded to 941-0339)

$12.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 736-0287

Flat Washer,.793 x 1.24 x.06

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 611-0053

Axle Assembly

$97.99

$

In Stock, only 4 left!

0

35

Troy-Bilt 750-0904

Spacer,.514 x.630 x 1.59

$

$

Not available

36

Troy-Bilt 618-0043

RH Dogg Assembly

$23.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 750-0903

Spacer,.514 x.630 x 2.44
(Superseded to 750-0903B)

$10.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 732-0209

Extension Spring
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

39

Troy-Bilt 710-0602

Tap Screw, 5/16-18 x 1

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 719-0295A

Track Housing

$

$

Not available

41

Troy-Bilt 746-0948A

Steering Cable
(Superseded to 946-0948A)

$37.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 746-0950A

Steering Trigger

$22.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 710-1233

Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

45

Troy-Bilt 716-0114

Retaining Ring
(Superseded to 916-0114)

$6.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 618-0046B

Carrier Assembly
(Superseded to 918-0576A)

$224.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 717-1211B

Ring Gear

$

$

Not available

48

Troy-Bilt 716-0115

Retaining Ring
(Superseded to 916-0115)

$

$

Not available

49

Troy-Bilt 713-0414

13-Tooth Sprocket

$35.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 711-0912

Track Steering Drive Shaft

$131.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 736-0502

Flat Washer,.58 x 1.06 x.02
(Superseded to 936-0502)

$6.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 736-0336

Flat Washer, 5/8 x 1 x.03
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

53

Troy-Bilt 715-0120

Spiral Pin, 3/16 x 1

$10.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 717-1209A

12-Tooth Gear

$4.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 717-1210A

18-Tooth Gear

$8.99

$

In Stock, only 2 left!

0

56

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0
