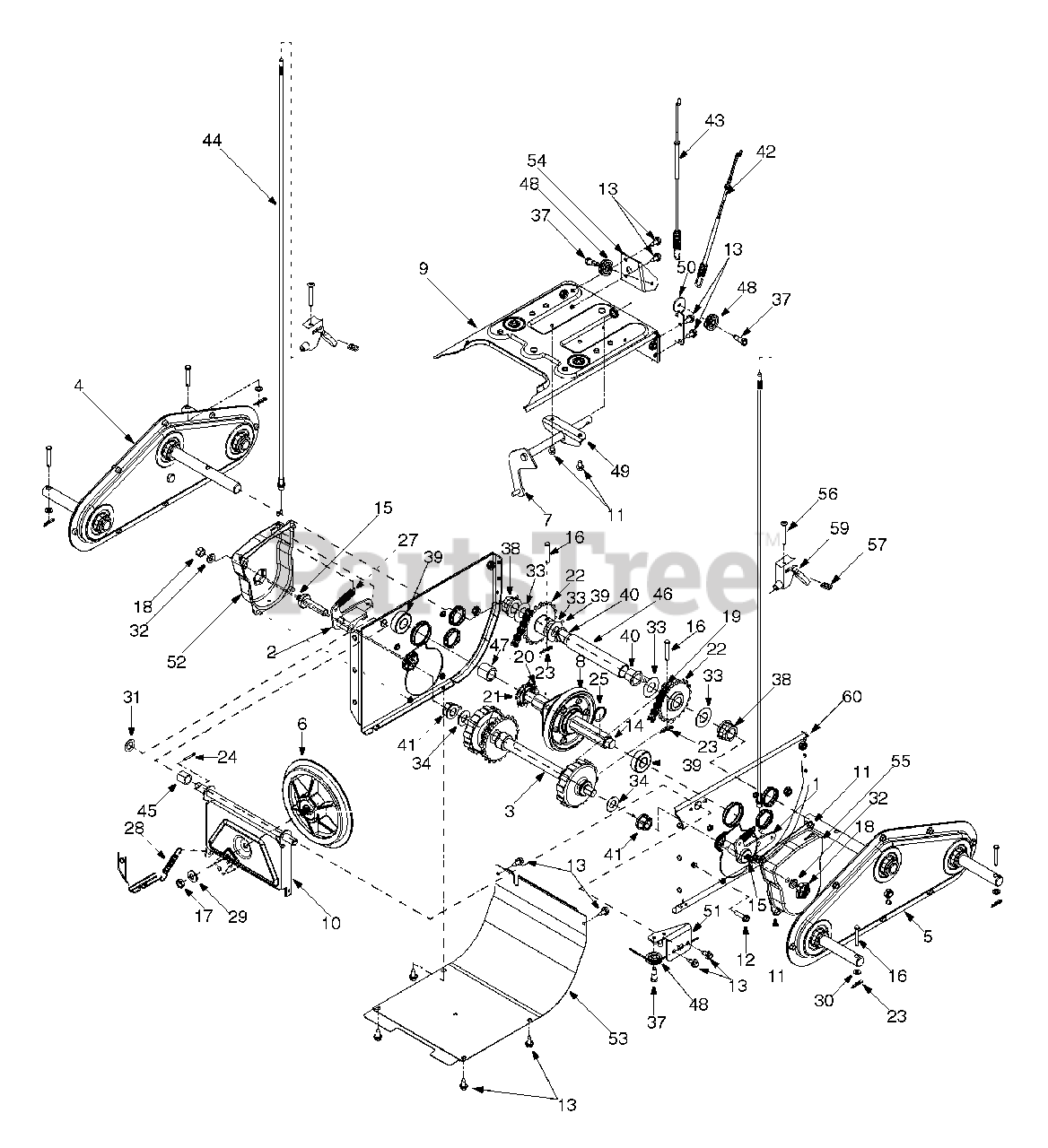

1028 (31AH4Q3G100) - Cub Cadet 28" 4x4 Snow Thrower (2002) Frame Assembly Parts Diagram

28" 4x4 Snow Thrower

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 618-0043

Dogg Assembly: RH

$23.99

$

In Stock, only 1 left!

0

2

Cub Cadet 618-0044

Dogg Assembly: LH

$24.99

$

In Stock, only 1 left!

0

3

Cub Cadet 618-0303A

Shift Assembly: Steerable Drive
(Superseded to 618-0575)

$

$

Not available

4

Cub Cadet 618-0420A

Chain Case Assembly: RH
(Superseded to 918-0420A)

$424.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 618-0421A

Chain Case Assembly: LH

$

$

Not available

6

Cub Cadet 656-0012A

Friction Wheel Disc Assy.
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 8

0

7

Cub Cadet 684-0014B

Shift Rod Assembly
(Superseded to 684-0014B-0637)

Variations

Cub Cadet 684-0014B-0637

Shift Rod Assembly - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

8

Cub Cadet 984-0042C

Wheel Assembly, Friction

Note: See 'Friction Wheel Assembly' for breakdown

$138.99

$

In Stock, Qty 17

0

9

Cub Cadet 684-0130

Transmission Frame Assembly

Variations

Cub Cadet 684-0130-0498

FRAME ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0130-0662

FRAME ASM. TRANS. - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0130-0665

FRAME ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0130-0716

FRAME ASSEMBLY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

10

Cub Cadet 684-0131A

Support Bracket Assembly
(Superseded to 684-0131A-0637)

$

$

Not available

11

Cub Cadet 710-0599

Hex Washer Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0788

Hex Washer Screw 1/4-20 x 1.0"

$7.49

$

In Stock, only 2 left!

0

13

Cub Cadet 710-1652

Hex Washer Screw 1/4-20 x .625"

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 711-1267

Drive Shaft

$70.99

$

In Stock, only 1 left!

0

15

Cub Cadet 711-1268

Actuator Shaft

$

$

Not available

16

Cub Cadet 711-1364

Pin

$8.49

$

In Stock, only 2 left!

0

17

Cub Cadet 712-0711

Jam Nut 3/8-24 Gr.8

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3017

Hex Nut: 3/8-16

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 713-0602

Chain

$

$

Not available

20

Cub Cadet 713-0233

Chain

$41.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 713-0413

Sprocket: 19T

$12.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 713-0473

Sprocket

$

$

Not available

23

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 13

0

25

Cub Cadet 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

27

Cub Cadet 732-0209

Extension Spring
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

28

Cub Cadet 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0142

Flat Washer

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

32

Cub Cadet 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0626

Flat Washer

$9.49

$

In Stock, only 2 left!

0

37

Cub Cadet 738-0924

Shoulder Screw
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

38

Cub Cadet 741-0598

Hex Flange Bearing
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

39

Cub Cadet 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

40

Cub Cadet 741-0701

Flange Bushing

$

$

Not available

41

Cub Cadet 741-1111

Hex Flange Bearing

$9.99

$

In Stock, only 3 left!

0

42

Cub Cadet 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

43

Cub Cadet 746-0898

Drive Clutch Cable
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

44

Cub Cadet 746-0956

Steering Cable
(Superseded to 946-0956C)

$23.99

$

In Stock, Qty 20+

0

45

Cub Cadet 748-0190

Spacer

$6.49

$

In Stock, Qty 11

0

46

Cub Cadet 750-1161A

Support Tube: Axle

$46.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 750-1162

Spacer

$

$

Not available

48

Cub Cadet 756-0625

Roller Cable

$9.49

$

In Stock, Qty 14

0

49

Cub Cadet 784-5590

Shift Bracket

Variations

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 784-5687A

Auger Clutch Cable Guide Bracket
(Superseded to 784-5687A-0637)

Variations

Cub Cadet 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

51

Cub Cadet 784-5689A

Front Support Guide Bracket
(Superseded to 784-5689A-0637)

Variations

Cub Cadet 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$

52

Cub Cadet 784-5730A

Retaining Shaft RH: Actuator Drive
(Superseded to 784-5730A-0637)

Variations

Cub Cadet 784-5730A-0637

HOUSING-ACTR SHAFT - POWDER BLACK (0637)

$

$

Not available

$

$

53

Cub Cadet 784-5732

Frame Cover
(Superseded to 784-5638A)

Variations

Cub Cadet 784-5732-0498

Frame Cover, Black - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5732-0650

Frame Cover, Black - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5732-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-5732-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-5732-0689

Frame Cover, Black - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5732-0716

Frame Cover, Black - CUB YELLOW-99 (0716)

$

$

Not available

$

$

54

Cub Cadet 784-5733

Roller Bracket: Drive Cable
(Superseded to 784-5733-0637)

Variations

Cub Cadet 784-5733-0637

BRACKET-DRIVE ROLL - POWDER BLACK (0637)

$

$

Not available

$

$

55

Cub Cadet 784-5740

Retaining Shaft LH: Actuator Drive
(Superseded to 784-5740-0637)

Variations

Cub Cadet 784-5740-0637

HOUSING-ACTR SHAFT - POWDER BLACK (0637)

$

$

Not available

$

$

56

Cub Cadet 710-1233

Oval C-Sunk Machine Screw

$4.99

$

In Stock, Qty 11

0

57

Cub Cadet 712-0127

Weld Nut

$3.49

$

In Stock, Qty 13

0

58

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

59

Cub Cadet 746-0950

Turn Trigger
(Superseded to 746-0950A)

$22.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 784-5731A

Frame
(Superseded to 684-0179)

Variations

Cub Cadet 784-5731A-0650

FRAME HOUSING - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5731A-0665

FRAME HOUSING - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-5731A-0689

FRAME HOUSING - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5731A-0716

USE 684-0179-0716 FRAME HOUSI - CUB YELLOW-99 (0716)

$

$

Not available

$

$

Cub Cadet 777D03040

Label: Auger Side 4x4

Note: Not shown

$

$

Not available

Cub Cadet 777D03165

Label: Heated Handle

Note: Not shown

$

$

Not available

Cub Cadet 777D04558

Label: Handle Panel

Note: Not shown

$

$

Not available

Cub Cadet 777D04560

Label: Engine

Note: Not shown

$

$

Not available

Cub Cadet 777I20508

Label: H-Steer LH

Note: Not shown

$

$

Not available

Cub Cadet 777I20724

Label: H-Steer RH

Note: Not shown

$

$

Not available

Cub Cadet 777S30511

Label: Chute Danger
(Superseded to 777S30524)

Note: Not shown

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 777S30514

Label: Housing Danger

Note: Not shown

$

$

Not available
