1028 (319-850-100) - Cub Cadet 28" Snow Thrower (1989) Snow Thrower Part 4 Parts Diagram

28" Snow Thrower

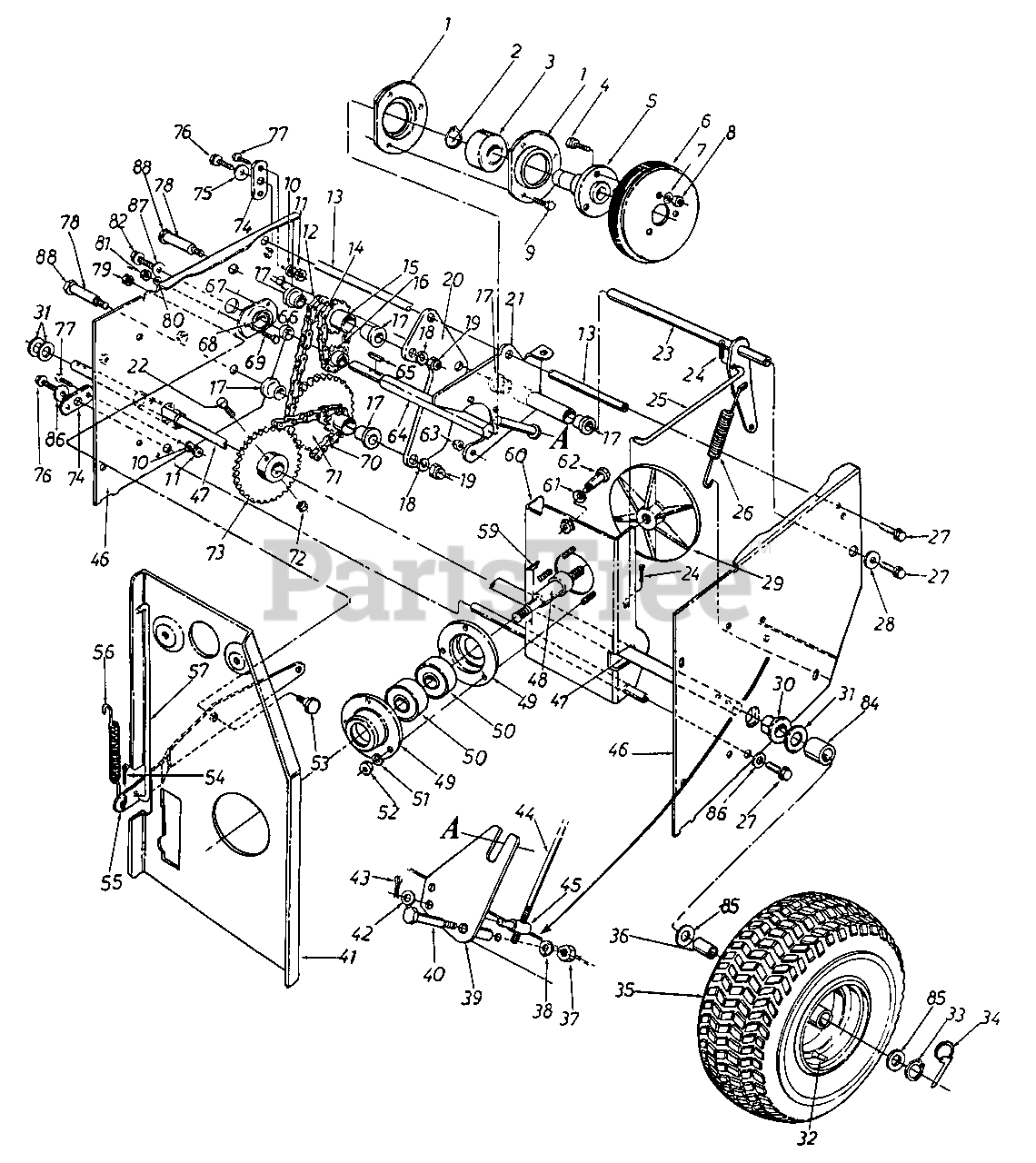

Snow Thrower Part 4 Parts Diagram

  • Title

1

Cub Cadet 05794

HOUSING-BRG

$

$

Not available

2

Cub Cadet 716-0102

RING-SNAP FOR 1.00 DIA SHAFT

$5.49

$

In Stock, Qty 20+

0

3

Cub Cadet 716-0102

RING-SNAP FOR 1.00 DIA SHAFT

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0198

SCREW-HEX SEMS 5/16-18 x .75
(Superseded to 910-0198)

$

$

Not available

5

Cub Cadet 748-0281

ADAPTER-FRICTION WHL

$

$

Not available

6

Cub Cadet 05080A

WHEEL ASSY-FRICTION
(Superseded to 05080AP)

$30.99

$

In Stock, Qty 12

0

7

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0195

SCREW-HEX 1/4-28 x .62
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-0270

NUT-ACORN LOCK

$

$

Currently unavailable

Cub Cadet 713-0723

#41 MASTER LINK 1/2 PITCH TYPEII
(Superseded to 913-0723)

$

$

Not available

13

Cub Cadet 738-0278

AXLE-SLIDING SUP

$

$

Not available

14

Cub Cadet 713-0199

#41 CHAIN 1/2 PITCH x 19 LINKS

$

$

Not available

Cub Cadet 713-0723

#41 MASTER LINK 1/2 PITCH TYPEII
(Superseded to 913-0723)

Note: (Service Only)

$

$

Not available

15

Cub Cadet 713-0193

SPROCKET & HUB ASSY-9 & 147
(Superseded to 913-0193)

$81.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 748-0204

SPROCKET-CENTER #41-8T

$

$

Not available

17

Cub Cadet 748-0184

BEARING-FLANGE .630 ID

$7.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.99

$

In Stock, Qty 6

0

19

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.99

$

In Stock, Qty 6

0

20

Cub Cadet 05520

BRACKET-CHAIN SUP

Variations

Cub Cadet 05520-0637

BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 784-5137

BRACKET ASSY-SLIDING

$

$

Not available

22

Cub Cadet 710-0698

SCREW-HEX

$

$

Not available

23

Cub Cadet 05500

BRACKET ASSY-DR CLUTCH

$

$

Currently unavailable

24

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 747-0150

ROD-CLUTCH-DR

$

$

Not available

26

Cub Cadet 732-0121

SPRING-IDLER EXTN
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

27

Cub Cadet 710-0538

SCREW-HEX 5/16-18 x .62

$4.49

$

In Stock, Qty 9

0

28

Cub Cadet 736-0264

WASHER-FL-.344 x .62

$6.99

$

In Stock, only 1 left!

0

29

Cub Cadet 717-0302

PLATE-ALUM DRIVE
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

30

Cub Cadet 741-0490

BEARING-FLANGE W/FLATS
(Superseded to 941-0490)

$13.99

$

In Stock, only 3 left!

0

31

Cub Cadet 736-0315

WASHER-FL

$6.99

$

In Stock, Qty 6

0

32

Cub Cadet 734-0255

VALVE-TUBELESS AIR
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 714-0143

PIN-CLICK-5/16 DIA x 1.75LG
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 8

0

34

Cub Cadet 714-0143

PIN-CLICK-5/16 DIA x 1.75LG
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 8

0

35

Cub Cadet 734-1416

WHEEL ASSY W/TIRE

$

$

Currently unavailable

Cub Cadet 734-0864

TIRE-15 x 6

Variations

Cub Cadet 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$136.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$136.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0864-0904

USE 734-0864-0901 TIRE 15 X 6 - Cheng (0904)

$136.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0864-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$111.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1145

WHEEL RIM

$

$

Currently unavailable

36

Cub Cadet 741-0401

BEARING-SLEEVE
(Superseded to 941-0401)

$7.49

$

In Stock, Qty 14

0

37

Cub Cadet 712-0342

NUT-HEX JAM 3/8-18
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

38

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 784-5133

BRACKET ASSY

Variations

Cub Cadet 784-5133-0637

BRACKET ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 738-0129

SCREW-SHLD .498 DIA x 2.005

$11.99

$

In Stock, only 1 left!

0

41

Cub Cadet 05491

BRACKET ASSY-ENG

$

$

Not available

42

Cub Cadet 736-0264

WASHER-FL-.344 x .62

$6.99

$

In Stock, only 1 left!

0

43

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA x .75

$4.49

$

In Stock, only 2 left!

0

44

Cub Cadet 747-0356

ROD-SHIFT

$

$

Not available

45

Cub Cadet 711-0628A

FERRULE-ADJ

$

$

Not available

46

Cub Cadet 784-5129B

FRAME ASSY

$

$

Currently unavailable

47

Cub Cadet 738-0566

AXLE-FREE WHEELING

$147.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 738-0279

SPINDLE-DRIVE PLT

$57.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 08253

HOUSING-BRG
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

50

Cub Cadet 741-0919

BEARING-BALL
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

52

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 738-0281

SCREW-SHLD .625 DIA x .163

$10.99

$

In Stock, only 1 left!

0

54

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 05518

BRACKET-AUG CLUTCH

$

$

Not available

56

Cub Cadet 732-0303

SPRING-EXTENSION
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 12

0

57

Cub Cadet 747-0149

ROD-AUG CLUTCH

$

$

Currently unavailable

59

Cub Cadet 714-0388

KEY-3/16 x 5/8
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 5

0

60

Cub Cadet 05497

BRACKET ASSY-DR PLT MTG

Variations

Cub Cadet 05497-0637

BRACKET ASSEMBLY-DR PLT MTG - POWDER BLACK (0637)

$

$

Not available

$

$

61

Cub Cadet 736-0105

WASHER-BELL .400 ID x .88 x .060

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 738-0144

SCREW-SHLD .498 DIA x 1.640
(Superseded to 938-0144)

$

$

Not available

63

Cub Cadet 712-0896

NUT-HEX INS-L

$4.99

$

In Stock, Qty 6

0

64

Cub Cadet 738-0280

SHAFT-HEX

$

$

Not available

65

Cub Cadet 714-0129

KEY-HI-PRO #4-3/32X5/8 DIA-HDN
(Superseded to 914-0129)

$

$

Not available

66

Cub Cadet 750-0277

SPACER

$

$

Not available

67

Cub Cadet 05034

HOUSING-BRG
(Superseded to 05034A)

$

$

Not available

68

Cub Cadet 741-0133

BEARING-BALL

$35.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

70

Cub Cadet 713-0268

#420 CHAIN 1/2 PITCH x 29 LINKS

$

$

Not available

Cub Cadet 713-0154

#420 MASTER LINK 1/2 PITCH TYPE II
(Superseded to 913-0154)

$

$

Not available

71

Cub Cadet 713-0194

SPROCKET & HUB ASSY-9 & 32T
(Superseded to 913-0194)

$153.99

$

In Stock, only 1 left!

0

72

Cub Cadet 712-0896

NUT-HEX INS-L

$4.99

$

In Stock, Qty 6

0

73

Cub Cadet 713-0274

SPROCKET-22T

$

$

Not available

74

Cub Cadet 05523

BRACKET-PIVOT AXLE

$

$

Not available

75

Cub Cadet 736-0264

WASHER-FL-.344 x .62

$6.99

$

In Stock, only 1 left!

0

76

Cub Cadet 710-0538

SCREW-HEX 5/16-18 x .62

$4.49

$

In Stock, Qty 9

0

77

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

78

Cub Cadet 750-0275

HUB-SPROCKET

$

$

Not available

79

Cub Cadet 712-0375

NUT-HEX CENTER L-3/8-16

$4.49

$

In Stock, Qty 6

0

80

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

81

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 710-0538

SCREW-HEX 5/16-18 x .62

$4.49

$

In Stock, Qty 9

0

84

Cub Cadet 750-0506

SPACER

$

$

Not available

85

Cub Cadet 736-0287

WASHER-FL .794ID x 1.240 x .060

$4.49

$

In Stock, Qty 20+

0

86

Cub Cadet 736-0159

WASHER-FL-.344 ID x .88 OD x .063

$4.49

$

In Stock, Qty 20+

0

87

Cub Cadet 736-0242

WASHER-BELL .337 x .867 x .057

$4.49

$

In Stock, Qty 20+

0

88

Cub Cadet 710-0629

SCREW-HEX 3/8-16 x 2.75

$

$

Not available
