1028 (312-850-100) - Cub Cadet 28" Snow Thrower (1992) Snow Thrower - Part IV Parts Diagram

28" Snow Thrower

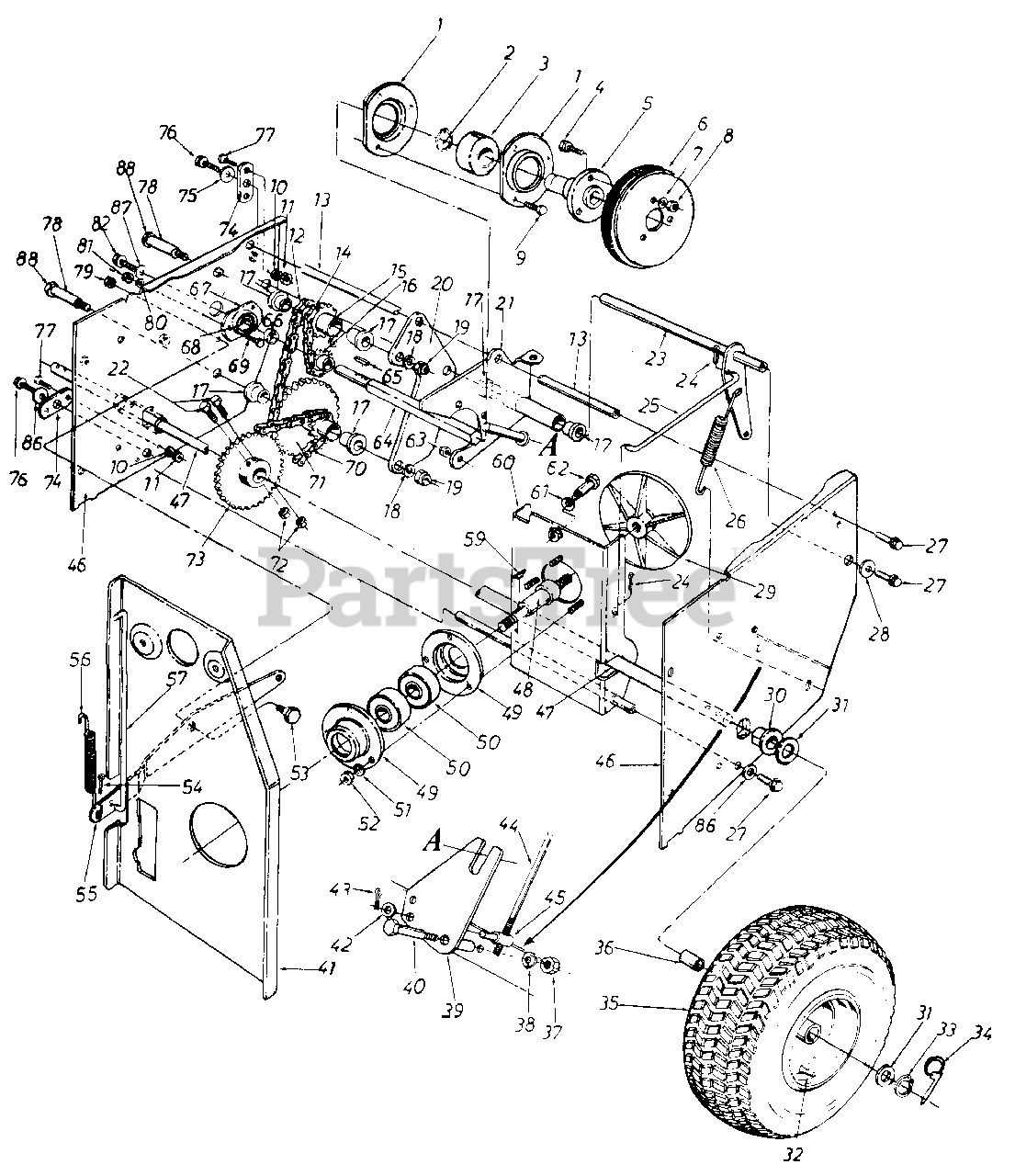

Snow Thrower - Part IV Parts Diagram

  • Title

1

Cub Cadet 05794

Bearing Housing

$

$

Not available

2

Cub Cadet 716-0102

Snap Ring-1.0" Dia.

$5.49

$

In Stock, Qty 20+

0

3

Cub Cadet 741-0301

Ball Brg. .25MM x 52MM x 15MM Thk.
(Superseded to 941-0301)

$53.99

$

In Stock, only 4 left!

0

4

Cub Cadet 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

5

Cub Cadet 748-0281

Friction Wheel Adapter

$

$

Not available

6

Cub Cadet 05080A

Friction Wheel Ass'y.
(Superseded to 05080AP)

$30.99

$

In Stock, Qty 11

0

7

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

12

Cub Cadet 713-0270

#41 Chain-1/2" Pitch x 43 Links

$

$

Not available

Cub Cadet 713-0723

Master Link
(Superseded to 913-0723)

Note: (Service Only)

$

$

Not available

13

Cub Cadet 738-0278

Sliding Support Axle

$

$

Not available

14

Cub Cadet 713-0199

#41 Chain-1/2" Pitch x 19 Links

$

$

Not available

Cub Cadet 713-0723

Master Link
(Superseded to 913-0723)

Note: (Service Only)

$

$

Not available

15

Cub Cadet 713-0193

9 and 14 Teeth Sprocket Hub Ass'y.
(Superseded to 913-0193)

$81.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 748-0204

8 Teeth Sprocket

$

$

Not available

17

Cub Cadet 748-0184

Flange Bearing .63" I.D.

$7.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 8

0

19

Cub Cadet 712-0116

Hex L-Jam Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

20

Cub Cadet 05520

Chain Support Brkt.

Variations

Cub Cadet 05520-0637

BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 784-5137

Sliding Brkt. Ass'y.

$

$

Not available

22

Cub Cadet 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 05500

Drive Clutch Brkt. Ass'y.

$

$

Currently unavailable

24

Cub Cadet 714-0104

Inter. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 747-0150

Drive Clutch Rod .31" Dia. x 7.38" Lg.

$

$

Not available

26

Cub Cadet 732-0121

Extension Spring 4.31" Lg.
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

27

Cub Cadet 710-0538

Hex L-Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 9

0

28

Cub Cadet 736-0264

Fl-Wash. .345" I.D. x .75" O.D.

$6.99

$

In Stock, only 1 left!

0

29

Cub Cadet 717-0302

Aluminum Drive Plate
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

30

Cub Cadet 741-0192

Flange Brg. w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 14

0

31

Cub Cadet 736-0163

Thrust Washer 1.03" I.D.

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 734-0255

Tubeless Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 716-0102

Snap Ring 1.0" Shaft

$5.49

$

In Stock, Qty 20+

0

34

Cub Cadet 714-0151

Klick Pin

$

$

Not available

35

Cub Cadet 734-1531

Wheel Ass'y. Comp. 16 x 4.8

$

$

Not available

Cub Cadet 734-1530

Tire Only

Variations

Cub Cadet 734-1530-0901

TIRE-SNOW HOG-4.80 - Carlisle (0901)

$168.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1530-0905

TIRE-SNOW HOG-4.80 - Duro (0905)

$168.99

$

Usually ships in 3-6 days

0

$137.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1532

Rim Only

$

$

Not available

36

Cub Cadet 741-0246

Bearing 1.0" I.D.

$14.99

$

In Stock, only 4 left!

0

37

Cub Cadet 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

38

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 784-5133

Shifting Linkage Brkt. Ass'y.

Variations

Cub Cadet 784-5133-0637

BRACKET ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 738-0129

Shld. Bolt .498" Dia. x 2.005" Lg.

$11.99

$

In Stock, only 1 left!

0

41

Cub Cadet 05491

Engine Brkt. Ass'y.

$

$

Not available

42

Cub Cadet 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

43

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

44

Cub Cadet 747-0356

Shifting Rod

$

$

Not available

45

Cub Cadet 711-0628A

Adjustment Ferrule

$

$

Not available

46

Cub Cadet 784-5129B

Frame Ass'y.

$

$

Currently unavailable

47

Cub Cadet 738-0548

Free Wheeling Axle

$

$

Currently unavailable

48

Cub Cadet 738-0279

Drive Plate Spindle

$57.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 08253B

Bearing Housing

$19.99

$

In Stock, only 1 left!

0

50

Cub Cadet 741-0919

Ball Brg. .787" I.D. x 1 85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

52

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 738-0281

Shld. Bolt .625" Dia. x .170" Lg.

$10.99

$

In Stock, Qty 7

0

54

Cub Cadet 714-0104

Inter. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 05518B

Auger Clutch Brkt.

$

$

Not available

56

Cub Cadet 732-0303

Extension Spring .38" O.D. x 3.18" Lg.
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 12

0

57

Cub Cadet 747-0149

Auger Clutch Rod .31" Dia. x 10.62" Lg.

$

$

Currently unavailable

59

Cub Cadet 714-0388

#61 Hi-Pro Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

60

Cub Cadet 05497

Drive Plate Mtg. Brkt. Ass'y.

Variations

Cub Cadet 05497-0637

BRACKET ASSEMBLY-DR PLT MTG - POWDER BLACK (0637)

$

$

Not available

$

$

61

Cub Cadet 736-0105

Bell-Wash. .44" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 738-0144

Shld. Bolt
(Superseded to 938-0144)

$

$

Not available

63

Cub Cadet 712-0896

Hex Ins. Jam Nut 1/4-28 Thd.

$4.99

$

In Stock, Qty 6

0

64

Cub Cadet 738-0280

Hex Shaft

$

$

Not available

65

Cub Cadet 714-0129

#9 Hi-Pro Key 3/32" x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

66

Cub Cadet 750-0277

Spacer .51" I.D. x .69" O.D.

$

$

Not available

67

Cub Cadet 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

68

Cub Cadet 741-0133

Ball Bearing

$35.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

70

Cub Cadet 713-0269

#420 Chain .50" Pitch x 37 Links
(Superseded to 913-0269)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 713-0154

Master Link
(Superseded to 913-0154)

$

$

Not available

71

Cub Cadet 713-0194

9 and 32 Teeth Sprocket Hub Ass'y.
(Superseded to 913-0194)

$153.99

$

In Stock, only 1 left!

0

72

Cub Cadet 712-0273

Hex L-Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 713-0320

28 Teeth Sprocket Hub Ass'y.

$

$

Currently unavailable

74

Cub Cadet 05523

Pivot Axle Brkt.

$

$

Not available

75

Cub Cadet 736-0264

Fl-Wash. .345" I.D. x .75"

$6.99

$

In Stock, only 1 left!

0

76

Cub Cadet 710-0538

Hex L-Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 9

0

77

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

78

Cub Cadet 750-0275

Sprocket Hub Tubing 1.88"

$

$

Not available

79

Cub Cadet 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

80

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

81

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

82

Cub Cadet 710-0538

Hex L-Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 9

0

86

Cub Cadet 736-0159

Fl-Wash. .344" I.D. x .875"

$4.49

$

In Stock, Qty 20+

0

87

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

88

Cub Cadet 710-0629

Hex Bolt 3/8-24 x 2.75" Lg.

$

$

Not available
