1028 (311-850-100) - Cub Cadet 28" Snow Thrower (1991) Snow Thrower Part 1 Parts Diagram

28" Snow Thrower

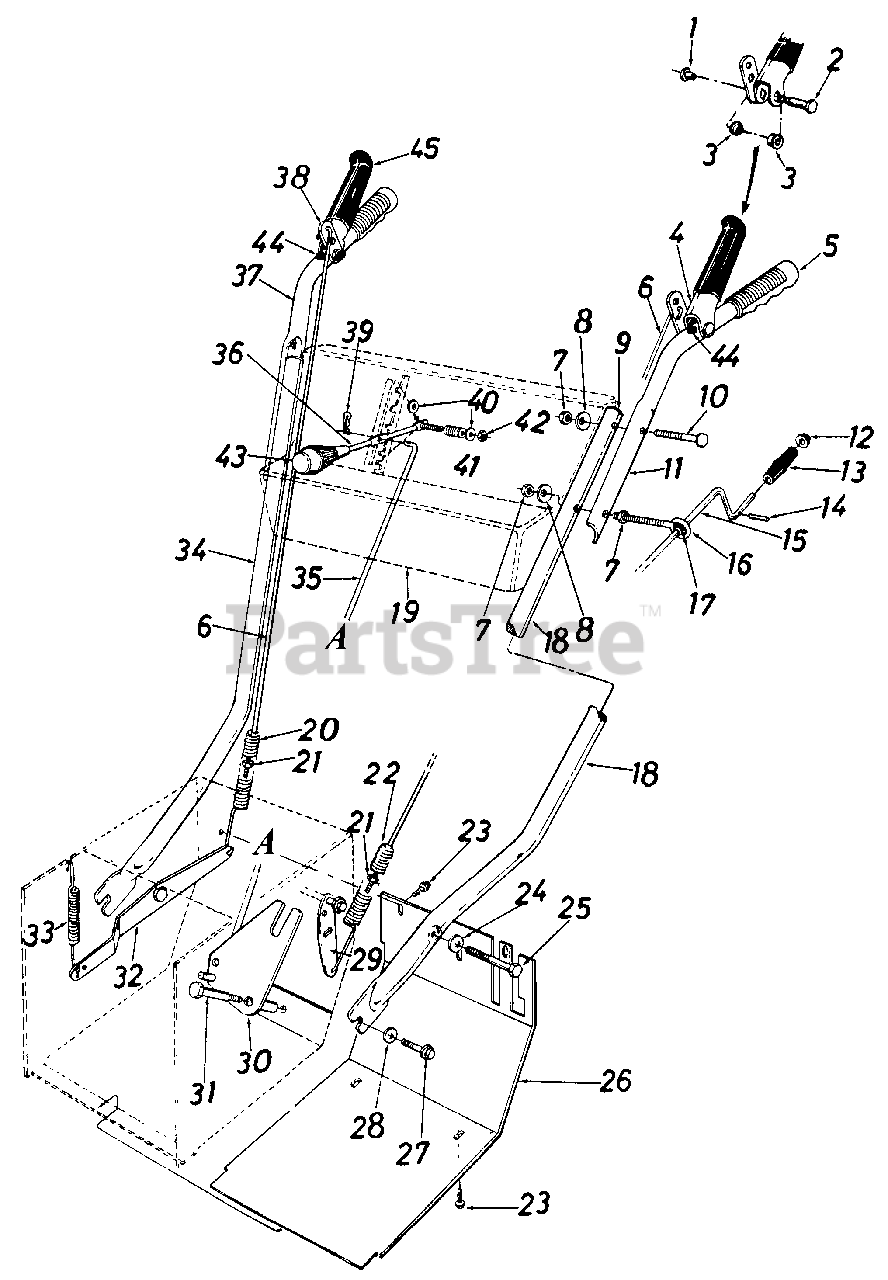

Snow Thrower Part 1 Parts Diagram

  • Title

1

Cub Cadet 738-0561

NUT-SHLD
(Superseded to 938-0561)

$9.49

$

In Stock, only 2 left!

0

2

Cub Cadet 738-0560

SCREW-SHLD .374 DIA X1.530
(Superseded to 938-0560)

$10.99

$

In Stock, only 1 left!

0

3

Cub Cadet 741-0402

BEARING-FLANGE

$

$

Not available

4

Cub Cadet 05987

GRIP ASSY-LH CLUTCH 2-STG S/T MTD

$

$

Currently unavailable

5

Cub Cadet 720-0180

GRIP-BLACK
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

6

Cub Cadet 747-0461

ROD-LOCKOUT STIC

$

$

Not available

7

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 731-0496

PLUG

$

$

Not available

10

Cub Cadet 710-0487

BOLT-CARRIAGE 5/16-18 X 2.00

$7.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 749-0595

HANDLE-FOLDING-LH PAINTED

$

$

Not available

12

Cub Cadet 726-0100

NUT-PUSH

$4.49

$

In Stock, only 3 left!

0

13

Cub Cadet 720-0201A

KNOB-CHUTE CRANK

$10.99

$

In Stock, only 4 left!

0

14

Cub Cadet 715-0138

PIN-ROLL 1/18 DIA
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

15

Cub Cadet 05980

CRANK ASSY-CHUTE

$

$

Not available

16

Cub Cadet 747-0416A

BOLT-EYE

$

$

Not available

17

Cub Cadet 741-0475

BUSHING-.380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 749-0405

HANDLE-LOWER-LH PAINTED

$

$

Currently unavailable

19

Cub Cadet 784-5451

PANEL ASSY-HANDLE

Note: Color Code 499

$

$

Not available

20

Cub Cadet 732-0463

SPRING-EXTENSION
(Superseded to 732-0463A)

$18.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-0324

NUT-INS LOCK 1/4-20

$3.99

$

In Stock, Qty 17

0

22

Cub Cadet 732-0184

SPRING

$25.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-0600

SCREW-HEX WASH SF TAPP

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0427

SCREW-HEX 3/8-16 X 2.00
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

26

Cub Cadet 784-5131B

COVER-FRAME

Note: Color Code 498

$

$

Currently unavailable

27

Cub Cadet 710-0555

SCREW-PILOT 3/8-16 X .88
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

28

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 05500

BRACKET ASSY-DR CLUTCH

$

$

Currently unavailable

30

Cub Cadet 784-5133

BRACKET ASSY

Variations

Cub Cadet 784-5133-0637

BRACKET ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

31

Cub Cadet 738-0129

SCREW-SHLD .498 DIA X 2.005

$11.99

$

In Stock, only 1 left!

0

32

Cub Cadet 05518B

BRACKET-AUG CLUTCH

$

$

Not available

33

Cub Cadet 732-0303

SPRING-EXTENSION
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 12

0

34

Cub Cadet 749-0406

HANDLE-LOWER-RH PAINTED

$

$

Currently unavailable

35

Cub Cadet 747-0356A

ROD-SHIFT

$

$

Not available

36

Cub Cadet 747-0696

HANDLE-SHIFT

$

$

Not available

37

Cub Cadet 749-0596

HANDLE-FOLDING-RH

Variations

Cub Cadet 749-0596-0637

HANDLE-FOLDING (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 05988

GRIP ASSY-LH CLUTCH 2-STG S/T MTD

$

$

Not available

39

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0264

WASHER-FL-.344 X .62

$6.99

$

In Stock, only 1 left!

0

41

Cub Cadet 732-0193

SPRING-COMPRESSION

$4.99

$

In Stock, Qty 6

0

42

Cub Cadet 712-0429

NUT-HEX INS L-5/16-18

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 720-0218

KNOB

$19.99

$

In Stock, only 1 left!

0

44

Cub Cadet 726-0247

CAP-PUSH
(Superseded to 935-0199A)

$7.99

$

In Stock, only 4 left!

0

45

Cub Cadet 731-0473

VINYL-PLASTIC

$4.49

$

Usually ships in 3-6 days

0
