1028 (310-850-100) - Cub Cadet 28" Snow Thrower (1990) Snow Thrower Part 3 Parts Diagram

28" Snow Thrower

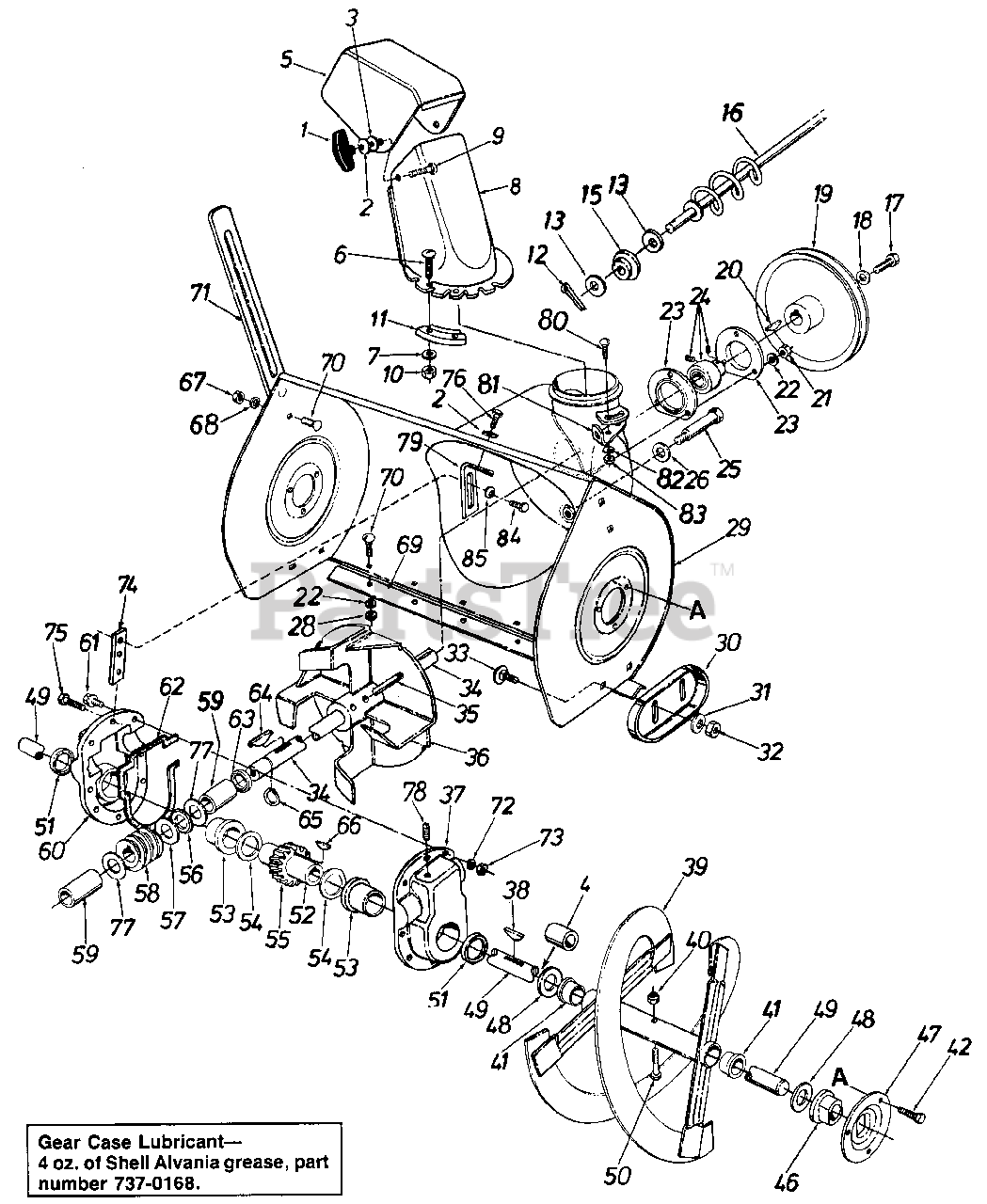

Snow Thrower Part 3 Parts Diagram

  • Title

1

Cub Cadet 09966

KNOB-HANDLE ASSY
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0231

WASHER-FL-.312 X 1.125 X .125

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 750-0653

SPACER

$

$

Currently unavailable

5

Cub Cadet 731-0846B

CHUTE-UPPER
(Superseded to 731-0846C)

$52.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-0255

SCREW-TRUSS MACH
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0142

WASHER-FL-.281 ID X .50 OD X .063

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 731-0840B

CHUTE-LOWER
(Superseded to 931-0840B)

$84.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0276

BOLT-CARRIAGE 5/16-18 X 1.00

$3.99

$

In Stock, Qty 10

0

10

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

11

Cub Cadet 731-0851

KEEPER-CHUTE FLANGE
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

In Stock, Qty 12

0

13

Cub Cadet 736-0140

WASHER-FL-.385 ID X .62 OD X .063

$7.49

$

In Stock, Qty 7

0

15

Cub Cadet 741-0475

BUSHING-.380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 05981

CRANK ASSY-CHUTE

$

$

Not available

17

Cub Cadet 710-0371

SCREW-HEX 5/16-18 X .88 SPECIAL
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

18

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 756-0243

PULLEY-V-1/2 ID X 10.0 OD

$94.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 714-0126

KEY-HI-PRO #9-3/16X3/4 DIA-HDN

$4.99

$

In Stock, Qty 16

0

21

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 05244

HOUSING-BRG
(Superseded to 05244B)

$23.99

$

In Stock, only 2 left!

0

24

Cub Cadet 741-0185

BEARING-SELF ALIGN
(Superseded to 941-0185)

$66.99

$

In Stock, only 1 left!

0

25

Cub Cadet 711-0640

STUD-3/8-16X2.75

$7.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 705-5082

HOUSING ASSY-BLOWER

Note: Color Code 499

$

$

Currently unavailable

30

Cub Cadet 784-5038A

SLIDE SHOE
(Superseded to 784-5038B-0637)

$27.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 712-0342

NUT-HEX JAM 3/8-18
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

33

Cub Cadet 710-0790

BOLT-CARRIAGE 3/8-16 X .62
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

34

Cub Cadet 738-0276

AXLE-BLOWER

$102.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 715-0118

PIN-SPRING SPIR 5/16 X 1.75

$12.99

$

In Stock, Qty 7

0

36

Cub Cadet 05812

FAN ASSY

Variations

Cub Cadet 05812-0637

FAN ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 717-0297

HOUSING W/FL BRG-LH-GEAR
(Superseded to 753-0889)

$

$

Not available

38

Cub Cadet 714-0135

KEY-WOODRUFF #91-1/4X3/4 DIA-HDN

$4.99

$

In Stock, only 2 left!

0

39

Cub Cadet 05463

SPIRAL ASSY-LH-26IN

Variations

Cub Cadet 05463-0637

SPIRAL ASSEMBLY (LH)-26I - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 05464

SPIRAL ASSY-RH-26IN

Variations

Cub Cadet 05464-0637

SPIRAL ASSEMBLY (RH)-26I - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 712-0429

NUT-HEX INS L-5/16-18

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 741-0494

BUSHING

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 710-0726

SCREW-HEX HD TAP

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 741-0192

BEARING-FLANGE
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 14

0

47

Cub Cadet 05845

HOUSING-BRG
(Superseded to 05845C-0637)

$23.99

$

In Stock, only 2 left!

0

48

Cub Cadet 736-0250

WASHER-FL

$4.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 738-0493

AXLE-SPRIAL

$

$

Not available

50

Cub Cadet 710-0891

BOLT-HEX 5/16-18X1.75

$7.49

$

In Stock, Qty 16

0

51

Cub Cadet 721-0146

SEAL-OIL
(Superseded to 921-0146)

$12.99

$

In Stock, only 1 left!

0

52

Cub Cadet 738-0275

SHAFT-WORM GEAR

$112.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 741-0182

BEARING-FLANGE

$

$

Not available

54

Cub Cadet 736-0266

WASHER-FL-1.50 X 2.25 X .030
(Superseded to 936-0266)

$

$

Not available

55

Cub Cadet 717-0300

GEAR-WORM-LH-DBL THD
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

56

Cub Cadet 741-0184

BEARING-THRUST

$16.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 736-0291

WASHER-FL-881.D.X1.40 O.D.X.155

$11.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 717-0299

GEAR-WORM-LH-DBL THD
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

59

Cub Cadet 741-0217

SLEEVE
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 9

0

60

Cub Cadet 717-0298

HOUSING W/FL BRG-RH-GEAR
(Superseded to 753-0889)

$

$

Not available

61

Cub Cadet 710-0376

SCREW-HEX 5/16-18 X 1.00

$3.99

$

In Stock, Qty 5

0

62

Cub Cadet 721-0144

GASKET-RUBBER
(Superseded to 921-0144)

$11.99

$

In Stock, only 1 left!

0

63

Cub Cadet 721-0145

SEAL-OIL
(Superseded to 921-0145)

$9.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 714-0126

KEY-HI-PRO #9-3/16X3/4 DIA-HDN

$4.99

$

In Stock, Qty 16

0

65

Cub Cadet 716-0111

RING-SNAP FOR .875 SHAFT

$6.99

$

In Stock, only 4 left!

0

66

Cub Cadet 714-0135

KEY-WOODRUFF #91-1/4X3/4 DIA-HDN

$4.99

$

In Stock, only 2 left!

0

67

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

68

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

69

Cub Cadet 705-5084

PLATE-SHAVE-28IN
(Superseded to 705-5084-0637)

Variations

Cub Cadet 705-5084-0637

Shave Plate, 28" - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 710-0260

BOLT-CARRIAGE 5/16-18 X .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 05139

CUTTER-DRIFT
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 736-0271

WASHER-SHAKE PROOF
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

73

Cub Cadet 712-0429

NUT-HEX INS L-5/16-18

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 784-5075

PLATE-SUPPORT-GEAR HSG

$

$

Not available

75

Cub Cadet 710-0528

SCREW-HEX 5/16-18 X 1.25

$4.49

$

In Stock, Qty 20+

0

76

Cub Cadet 710-0726

SCREW-HEX HD TAP

$4.49

$

In Stock, Qty 20+

0

77

Cub Cadet 736-0291

WASHER-FL-881.D.X1.40 O.D.X.155

$11.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 737-0175

PLUG-VENTED-PLASTIC

$6.99

$

In Stock, only 4 left!

0

79

Cub Cadet 784-5076

PLATE-SUPPORT-GEAR HSG
(Superseded to 784-5076-0637)

Variations

Cub Cadet 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 710-0451

BOLT-CARRIAGE 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

81

Cub Cadet 784-5123

BRACKET-CHUTE CRANK
(Superseded to 784-5123-0637)

Variations

Cub Cadet 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

82

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

83

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

84

Cub Cadet 710-0412

SCREW-HEX 1/4-28 X .75

$5.99

$

In Stock, Qty 9

0

85

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 20+

0
