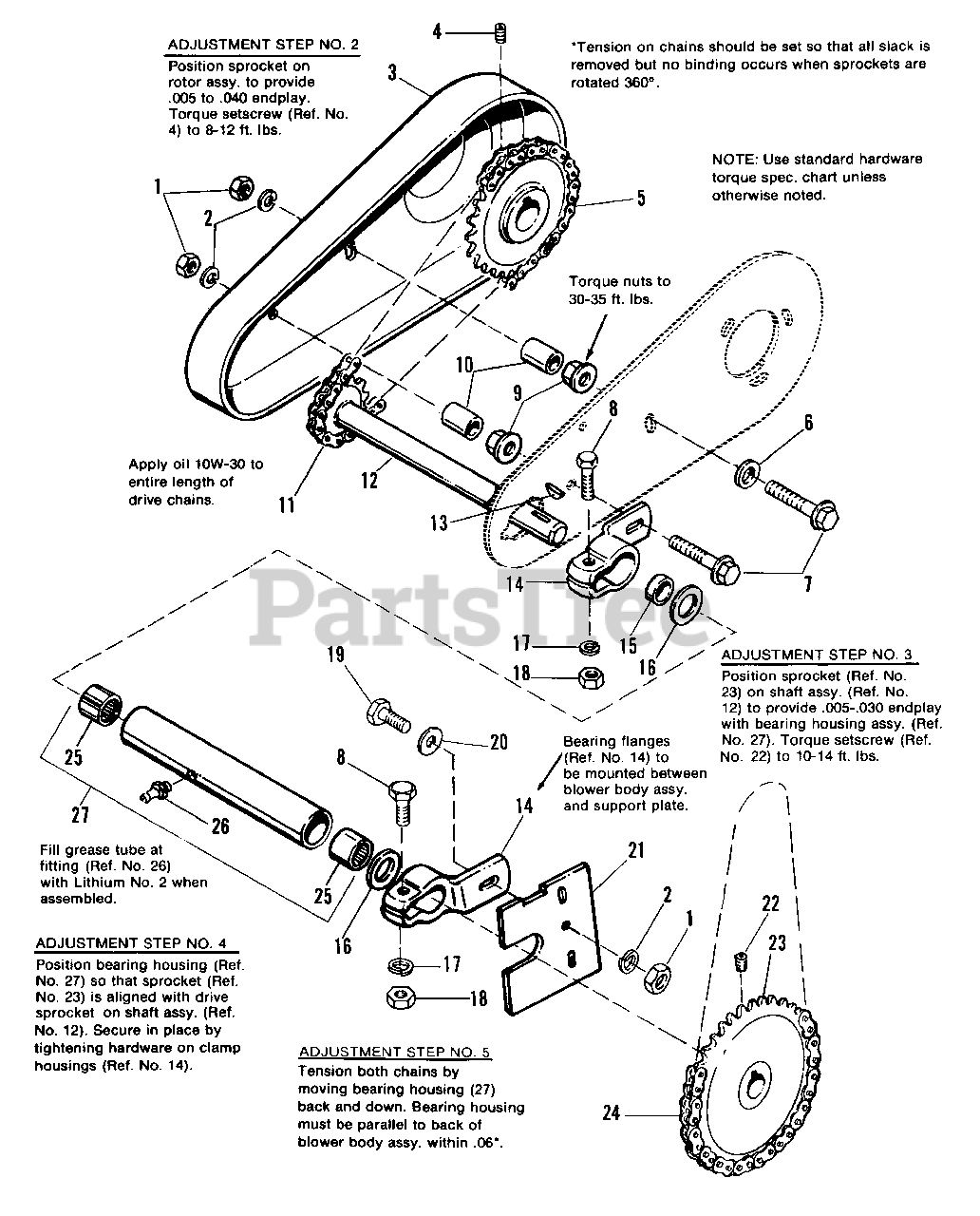

1028 (1690589) - Simplicity Snowbuster 28" Snow Thrower, 10hp Drive Group Parts Diagram

Snowbuster 28" Snow Thrower, 10hp

Drive Group Parts Diagram

  • Title

1

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

3

Simplicity 170865

GUARD, Chain

$

$

Not available

4

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

5

Simplicity 2161291

SPROCKET, Rotor

$

$

Not available

6

Simplicity 2824356

WASHER

$

$

Not available

7

Simplicity 933254

SCREW, Cap, Flange, Whiz, 3/8-16 x 2-1/4

$

$

Not available

8

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 2828352

NUT, Flange, Whiz, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

10

Simplicity 2121121

SPACER

$

$

Not available

11

Simplicity 106899

CHAIN (Auger Drive)

$

$

Not available

12

Simplicity 106938

SHAFT ASSY. (524 & 724)

$

$

Not available

12

Simplicity 2170763SM

SHAFT ASSY. (828 & 1028)

$

$

Not available

13

Simplicity 2805123SM

KEY, Woodruff, #9, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 176161

CLAMP

$

$

Not available

15

Simplicity 106992

SPACER

$

$

Not available

16

Simplicity 1729259SM

WASHER

$5.99

$

In Stock, Qty 7

0

17

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

20

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 170753

PLATE, Adjusting

$

$

Not available

22

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

23

Simplicity 106964

SPROCKET (Cross Shaft)

$

$

Not available

24

Simplicity 2106898SM

CHAIN (Second Stage to Cross Shaft Assy.)

$15.99

$

Usually ships in 2-12 days

0

25

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, Qty 8

0

26

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

27

Simplicity 1650988

HOUSING ASSY., Bearing (524 & 724)

$

$

Not available

27

Simplicity 1657461

HOUSING ASSY., Bearing (828 & 1028)

$

$

Not available
