10272 C - Lawn-Boy Silver Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) RECOIL STARTER ASSEMBLY NO. 590702 (OPTIONAL) TECUMSEH MODEL LV195EA-362005B Parts Diagram

Silver Series Walk-Behind Mower

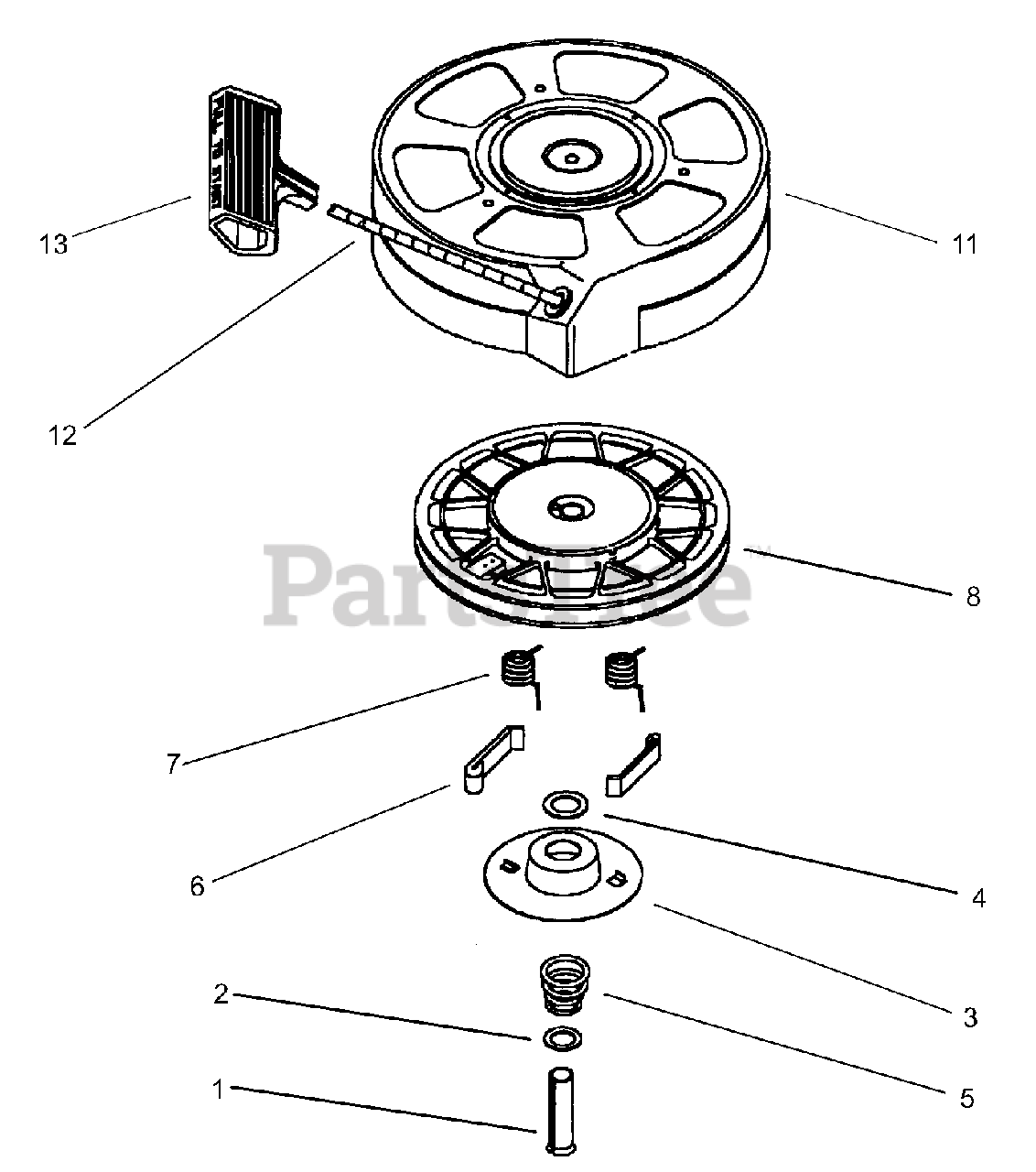

RECOIL STARTER ASSEMBLY NO. 590702 (OPTIONAL) TECUMSEH MODEL LV195EA-362005B Parts Diagram

  • Title
1

Lawn-Boy 590599A

Spring Pin ASM (Incl. Ref. #4)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 590600

Washer

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

3

Lawn-Boy 590696

Retainer

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

4

Lawn-Boy 590601

Washer

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

5

Lawn-Boy 590697

Spring-Brake

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 590698

Dog-Starter

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 590699

Spring-Dog

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

8

Lawn-Boy 590700

Pulley and Rewind Spring ASM

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

11

Lawn-Boy 590703A

Starter Housing ASM. (40 degree grommet)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

12

Lawn-Boy 590535

Starter Rope ( 98IN X 9/64IN dia.)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

13

Lawn-Boy 590701

Handle-Starter

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable
