10272 C - Lawn-Boy Silver Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) HOUSING, HANDLE BRACKET AND WHEEL ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

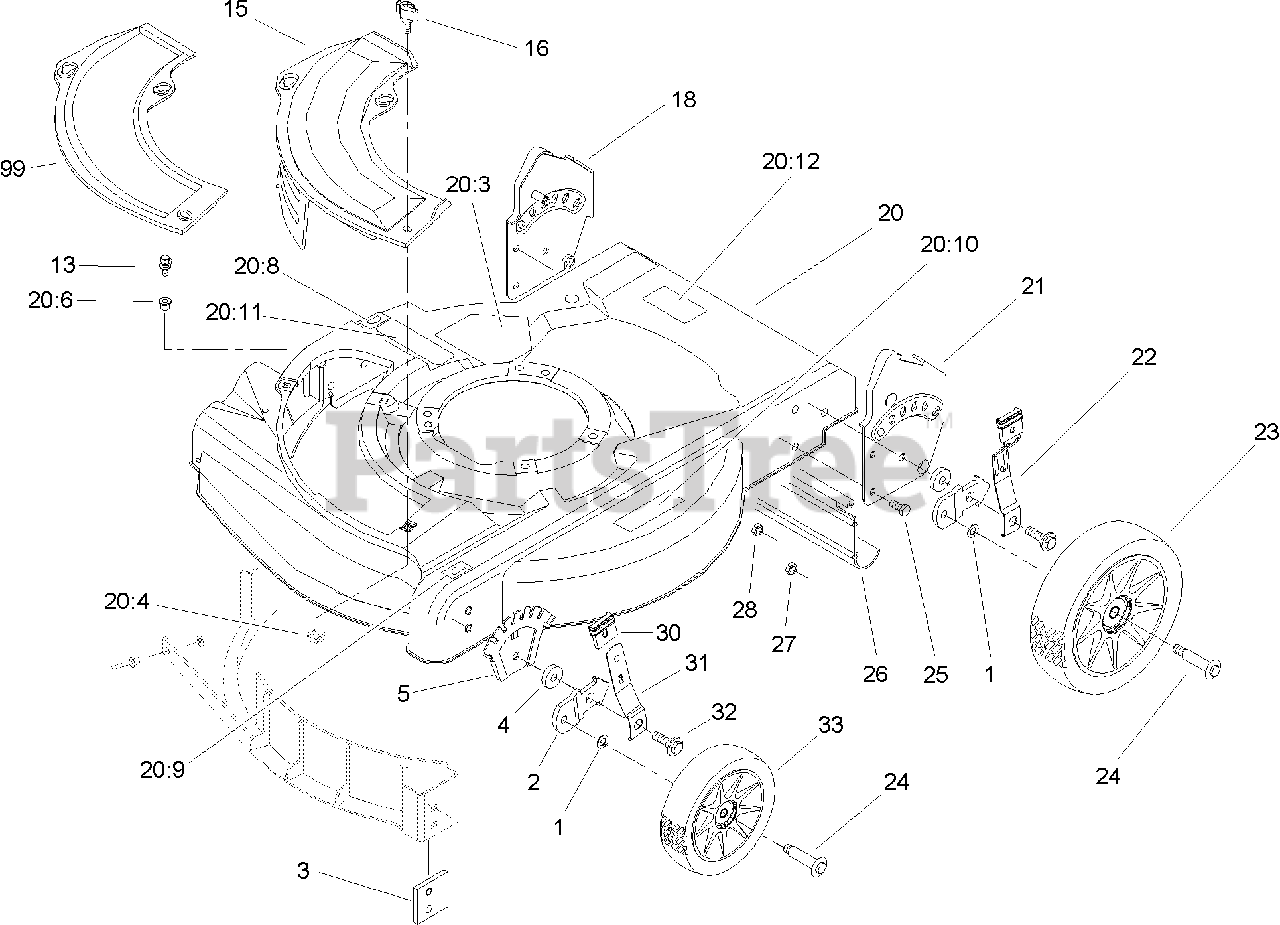

HOUSING, HANDLE BRACKET AND WHEEL ASSEMBLY Parts Diagram

  • Title
1

$2.99

$

In Stock, Qty 18

0

2

Lawn-Boy 95-7403-03

BRACKET-HEIGHT ADJUSTMENT, WHEEL

$

$

Not available

3

Lawn-Boy 92-7731

PLATE-BAFFLE

$10.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-4890

WASHER-WHEEL

$8.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 92-4881-03

PLATE-HEIGHT, ADJUSTMENT

$29.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 614677

SCREW-SEMS

$4.49

$

In Stock, Qty 12

0

15

Lawn-Boy 92-8630

PLATE-MULCH

$

$

Not available

$5.49

$

In Stock, Qty 15

0

18

Lawn-Boy 92-7742

RH HANDLE BRACKET ASM

$

$

Not available

20

$

$

Not available

20:3

Lawn-Boy 56-6270

DECAL-DANGER

$

$

Not available

20:4

Lawn-Boy 613765

NUT-CAGE

$9.99

$

In Stock, Qty 9

0

20:6

Lawn-Boy 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 7

0

20:8

Lawn-Boy 104-7616

DECAL-HOC, LH

$

$

Not available

20:9

Lawn-Boy 104-7617

DECAL-HOC, RH

$

$

Not available

20:10

Lawn-Boy 104-7627

DECAL-WARNING

$

$

Not available

20:11

Lawn-Boy 104-7629

DECAL-WARNING

$

$

Not available

20:12

Lawn-Boy 104-7634

DECAL-MANUAL

$

$

Not available

21

Lawn-Boy 92-7743

LH HANDLE BRACKET ASM

$

$

Not available

22

Lawn-Boy 92-1005

REAR SPRING ARM ASM

$21.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 95-7437

WHEEL AND TIRE ASM

$27.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 92-1099

BOLT-SHOULDER

$8.49

$

In Stock, Qty 20+

0

25

Lawn-Boy 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

26

Lawn-Boy 92-8647

SHIELD-TRAILING

$41.99

$

In Stock, only 1 left!

0

27

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

28

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$14.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 614687

ARM-FRONT SPRING

$21.99

$

In Stock, only 3 left!

0

32

Lawn-Boy 614672

BOLT-SHOULDER

$2.99

$

In Stock, Qty 6

0

33

Lawn-Boy 95-7436

WHEEL AND TIRE ASM

$

$

Not available

99

Lawn-Boy 95-7052

PLATE-OPENING, CHUTE

$36.99

$

In Stock, only 1 left!

0
