10272 C - Lawn-Boy Silver Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) ENGINE ASSEMBLY NO. 1 TECUMSEH MODEL LV195EA-362005B Parts Diagram

Silver Series Walk-Behind Mower

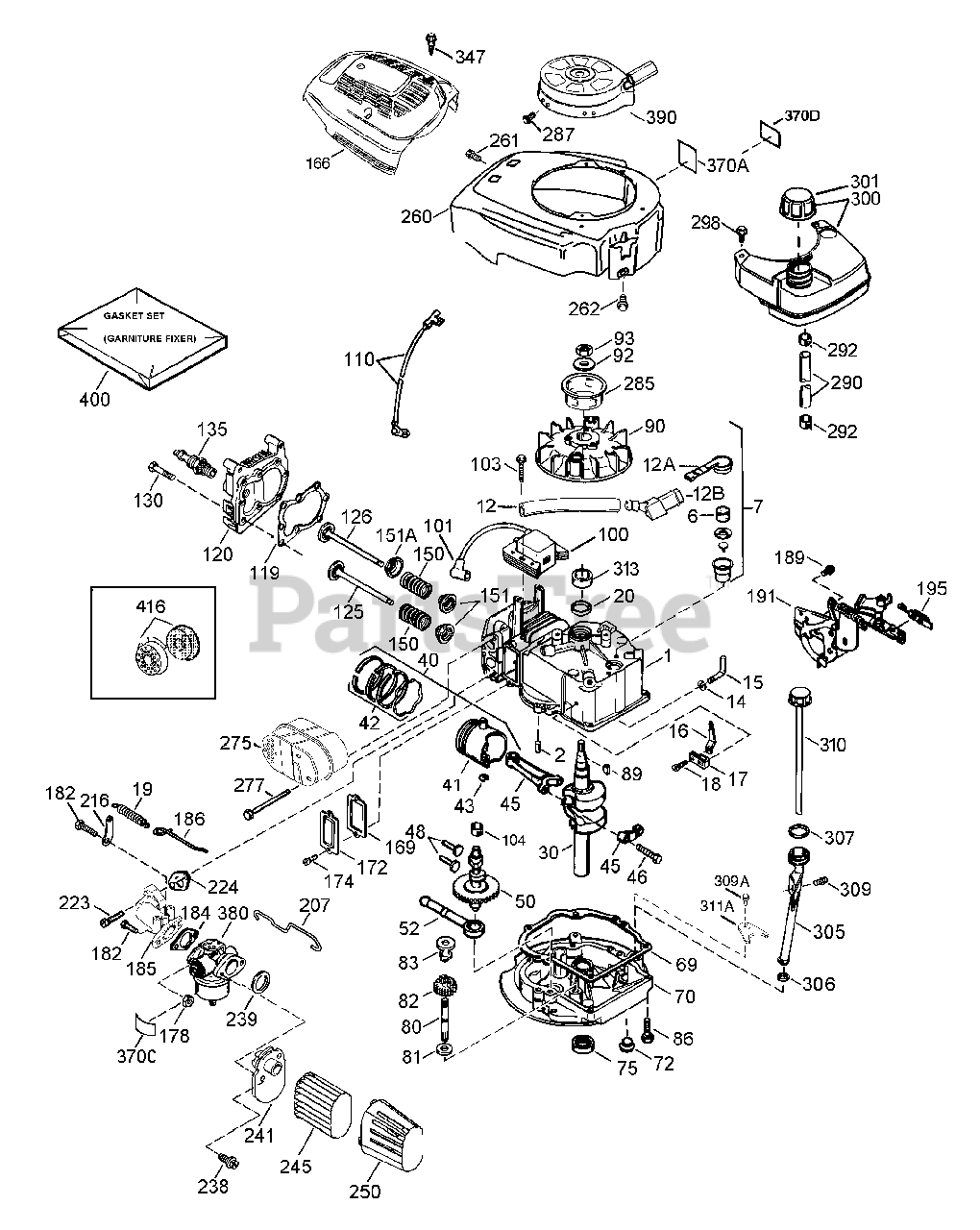

ENGINE ASSEMBLY NO. 1 TECUMSEH MODEL LV195EA-362005B Parts Diagram

  • Title

1

Lawn-Boy 37465

Cylinder(Incl. REF. #2, 20 and 150)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 26727

Pin-Dowel

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 33734

Element-Breather

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 36557

Breather ASM (Incl. REF. #6 AND 12A)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

12

Lawn-Boy 36775

Tube-Breather

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

12A

Lawn-Boy 36558

Breather Cover And Tube (Incl. REF. #12B)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

12B

Lawn-Boy 36694

Elbow-Breather Tube
(Superseded to 704856)

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

14

Lawn-Boy 28277

Washer

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

15

Lawn-Boy 30589

Governor Rod (Incl. REF. #14)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

16

Lawn-Boy 34839A

Lever-Governor

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

17

Lawn-Boy 31335

Lever Clamp-Governor

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

18

Lawn-Boy 651018

Screw, T-15, 8-32 x 19/64in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

19

Lawn-Boy 36281

Spring-Extension
(Superseded to 700777)

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

20

Lawn-Boy 32600

Seal-Oil

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

30

Lawn-Boy 37692

Crankshaft

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

40

Lawn-Boy 40027

Piston, Pin and Ring Set (Std.)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

41

Lawn-Boy 40042

Piston and Pin ASM (Std.) (Incl. REF. #43)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

42

Lawn-Boy 40006

Ring Set (Std.)

Note: Obtain parts from your local Tecumseh dealer

$86.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 20381

Piston Pin Retaining Ring

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

45

Lawn-Boy 36777

Connecting Rod ASM (Incl. REF. #46)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

46

Lawn-Boy 32610A

Bolt-Connecting Rod

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

48

Lawn-Boy 27241

Valve-Lifter

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

50

Lawn-Boy 37460

Camshaft (Exhaust MCR) (Incl. REF. #104)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

52

Lawn-Boy 29914

Oil Pump ASM.

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

69

Lawn-Boy 37609

Gasket-Mounting Flange

Note: Included in Repair Kit No. 632809 Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

70

Lawn-Boy 37608

Mounting Flange (Incl. REF. #72-83, 306, 309A and 311A)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

72

Lawn-Boy 37614

Plug-Oil Drain
(Superseded to 700905)

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

75

Lawn-Boy 27897

Seal-Oil

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

80

Lawn-Boy 30574A

Shaft-Governor

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

81

Lawn-Boy 30590A

Washer

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

82

Lawn-Boy 30591

Governor Gear ASM (Incl. REF. # 81)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

83

Lawn-Boy 30588A

Spool-Governor

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

86

Lawn-Boy 650488

Screw, 1/4-20 x 1-1/4in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

89

Lawn-Boy 611004

Key-Flywheel

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

90

Lawn-Boy 611112

Flywheel
(Superseded to 611113)

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

92

Lawn-Boy 650815

Washer-Belleville

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

93

Lawn-Boy 650816

Nut-Flywheel

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

100

Lawn-Boy 34443C

Ignition-Solid State

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

101

Lawn-Boy 610118

Cover-Spark Plug

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

103

Lawn-Boy 651007

Screw, T-15, 10-24 x 15/16in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

104

Lawn-Boy 37480

Bushing-Cam

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

110

Lawn-Boy 37047

Wire-Ground

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

119

Lawn-Boy 36787

Gasket-Cylinder Head

Note: Included in Repair Kit No. 632809 Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

120

Lawn-Boy 37714

Cylinder Head
(Superseded to 741027)

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

125

Lawn-Boy 36780

Exhaust Valve (1/32" OS) (Incl. REF. #151)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

125

Lawn-Boy 37288

Exhaust Valve (Std.) (Incl. REF. #151)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

126

Lawn-Boy 37289

Intake Valve (Std.) (Incl. REF. #151and 151A)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

130

Lawn-Boy 6021A

Screw, 5/16-18 x 1-7/16in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

135

Lawn-Boy 35395

Resistor Spark Plug (RJ19LM)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

150

Lawn-Boy 31672

Spring-Valve

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

151

Lawn-Boy 31673

Cap-Valve Spring
(Superseded to 742357)

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

151A

Lawn-Boy 40017

Seal-Intake Valve

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

166

Lawn-Boy 37813

Engine Shroud (Green)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

169

Lawn-Boy 36783

Gasket-Valve Cover

Note: Included in Repair Kit No. 632809 Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

172

Lawn-Boy 36784

Cover-Valve

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

174

Lawn-Boy 30200

Screw, 10-24 x 9/16in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

178

Lawn-Boy 29752

Nut & Lock Washer, 1/4-28

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

182

Lawn-Boy 6201

Screw, 1/4-28 x 7/8in
(Superseded to 111-1250)

Note: Obtain parts from your local Tecumseh dealer

$

$

Not available

184

Lawn-Boy 26756

Carburetor To Intake Pipe Gasket

Note: Included in Repair Kit No. 632809 Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

185

Lawn-Boy 37466

Pipe-Intake

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

186

Lawn-Boy 32653

Link-Governor

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

189

Lawn-Boy 650839

Screw, 1/4-20 x 3/8in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

191

Lawn-Boy 36559A

S.E. Brake Bracket (Incl. REF. #195)

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

195

Lawn-Boy 610973

Terminal

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

207

Lawn-Boy 34336A

Link-Throttle

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

216

Lawn-Boy 33086

Lever-R.P.M. Adjusting

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

223

Lawn-Boy 650451

Screw, 1/4-20 x 1in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

224

Lawn-Boy 36786

Gasket-Intake Pipe

Note: Included in Repair Kit No. 632809 Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

238

Lawn-Boy 650932

Screw, 10-32 x 49/64in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

239

Lawn-Boy 34338

Gasket-Air Cleaner

Note: Included in Repair Kit No. 632809 Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

241

Lawn-Boy 36919

Collar-Air Cleaner

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

245

Lawn-Boy 36905

Filter-Air Cleaner

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

250

Lawn-Boy 37122

Cover-Air Cleaner

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

260

Lawn-Boy 37696A

Housing-Blower

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

261

Lawn-Boy 30200

Screw, 10-24 x 9/16in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

262

Lawn-Boy 650831

Screw, 1/4-20 x 1/2in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

275

Lawn-Boy 37498

Muffler

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

277

Lawn-Boy 650988

Screw, 1/4-20 x 2-9/32in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

285

Lawn-Boy 35000A

Cup-Starter

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

287

Lawn-Boy 650926

Screw, 8-32 x 21/64in

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

290

Lawn-Boy 29774

Line-Fuel

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

292

Lawn-Boy 26460

Clamp-Line, Fuel

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable

298

Lawn-Boy 28763

Screw

Note: Obtain parts from your local Tecumseh dealer

$

$

Currently unavailable
