10270 C - Lawn-Boy Silver Series Walk-Behind Mower (SN: 220000001 - 220999999) (2002) ENGINE AND BLADE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

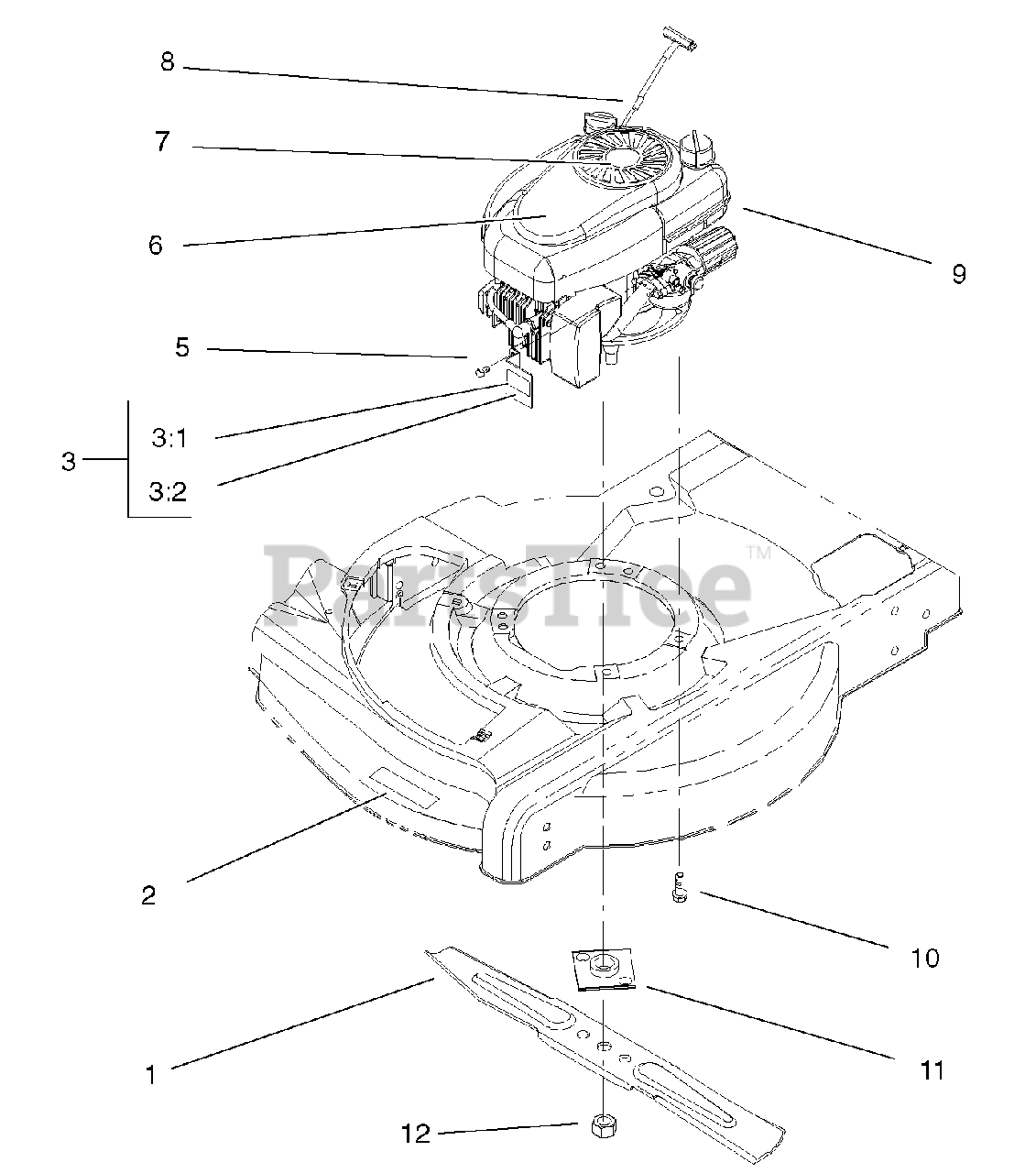

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

$33.99

$

In Stock, Qty 18

0

2

Lawn-Boy 104-7958

Decal-Deck

$

$

Not available

3

Lawn-Boy 105-1278

Muffler Guard ASM

$

$

Not available

3:1

Lawn-Boy 104-8065

Decal-Surface, Hot

$

$

Not available

3:2

Lawn-Boy 94-6066-03

Guard-Muffler

$

$

Not available

5

$1.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 98-1593

Applique

$31.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 104-7684

Decal-Recoil, 5hp

$

$

Not available

8

Lawn-Boy 92-1701

Stop-Rope
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

9

Engine Lev120-361545B

Note: Not serviced separately

$

$

Not available

10

Lawn-Boy 95-1726

Screw-Taptite W/Patch

$2.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 105-1256

Blade Retainer ASM

$42.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 11

0
