1027 LD (1697184-00) - Briggs & Stratton 27" Snow Thrower, 9.5 Gross TP (2019) Chute Rotation Group Parts Diagram

27" Snow Thrower, 9.5 Gross TP

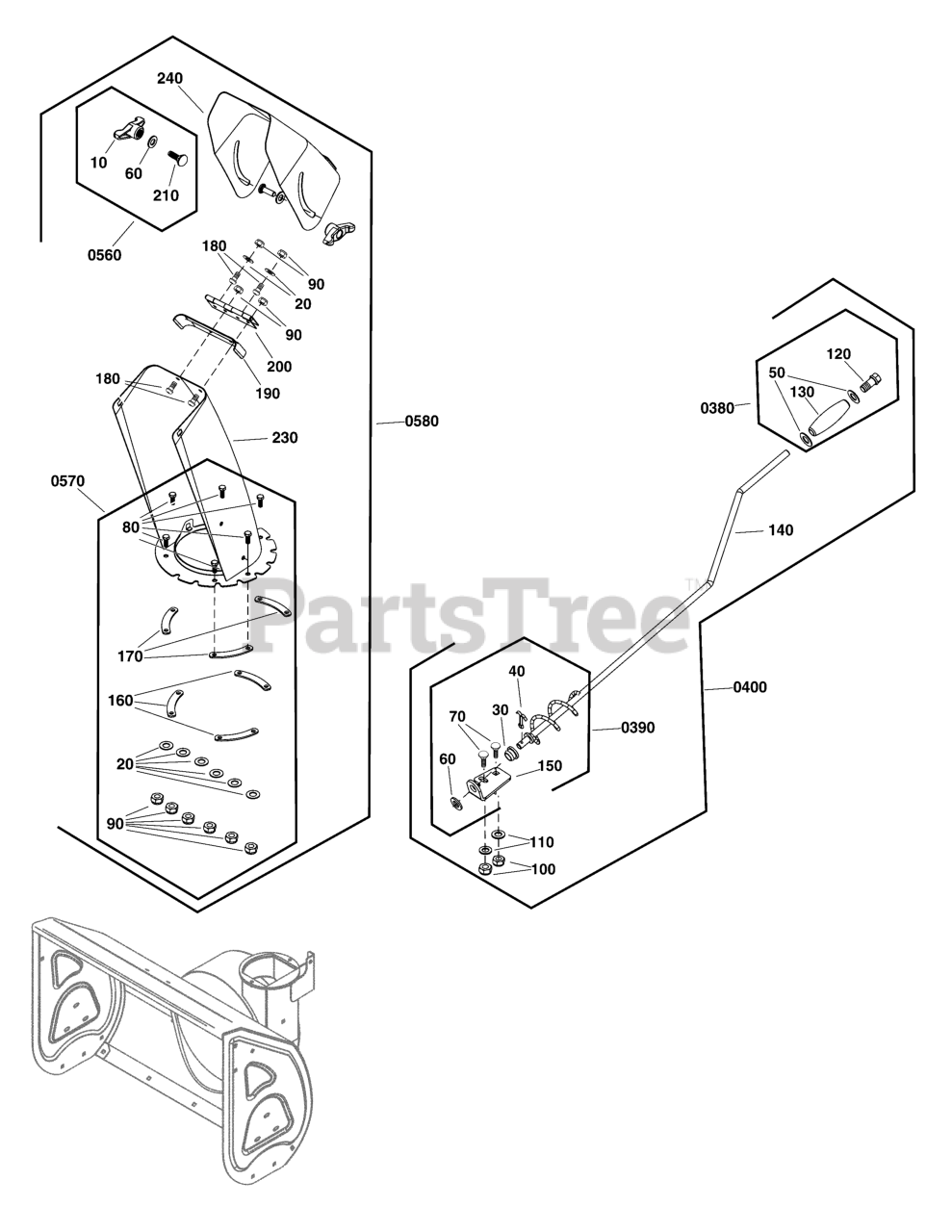

Chute Rotation Group Parts Diagram

  • Title

0380

Briggs & Stratton 707820

KIT-HANDLE, CHUTE ROD

Note: (Incl. Ref. No. 50, 120, 130)

$17.99

$

Usually ships in 2-12 days

0

50

WASHER, Flat, 10 X 20 X 1

$

$

Not available

120

HEX SCREW, Flange, M6X10

$

$

Not available

130

HANDLE, Barrel, LD

$

$

Not available

0390

Briggs & Stratton 707821

KIT-MOUNTING PLATE, CHUTE ROTATION

Note: (Incl. Ref. No. 30, 40, 60, 70, 150)

$18.99

$

In Stock, only 1 left!

0

30

RING, SJ Mounting Plate, Plastic

$

$

Not available

40

PIN, Cotter, 2.2X25

$

$

Not available

60

WASHER, Flat, 10 X 20 X 2

$

$

Not available

70

BOLT, Carriage, M8 X 18

$

$

Not available

150

BRACKET, Chute Rod, LD

$

$

Not available

0400

Briggs & Stratton 707822

KIT-CHUTE ROTATION

Note: (Incl. Ref. No. 100, 110, 140, 0380, 0390)

$296.99

$

Usually ships in 2-12 days

0

100

NUT, Lock, M8

$

$

Not available

110

WASHER, FLAT, 8X16X1.2

$

$

Not available

140

ROD, Crank, LD

$

$

Not available

0560

Briggs & Stratton 707759

KIT-WING KNOB, CHUTE

Note: (Incl. Ref. No. 10, 60, 210)

$20.99

$

Usually ships in 2-12 days

0

10

KNOB, Wing, M8

$

$

Not available

60

WASHER, Flat, 10 X 20 X 2

$

$

Not available

210

BOLT, Carriage, M8 X 25

$

$

Not available

0570

Briggs & Stratton 84002370

KIT, Hardware, Chute Rotation

Note: (Incl. Ref. No. 20, 80, 90, 170, 180)

$23.99

$

Usually ships in 2-12 days

0

20

WASHER, 6x12x.7, Flat

$

$

Not available

80

SCREW, Hex Head, M6X16

$

$

Not available

90

NUT, Lock, M6

$

$

Not available

160

PLATE, Chute Mounting, LD

$

$

Not available

170

GASKET, Chute Mounting, LD

$

$

Not available

0580

Briggs & Stratton 707831

KIT-CHUTE ASSEMBLY, BLACK, NA

Note: (Incl. Ref. No. 20, 90, 180, 190, 200, 230, 240, 0560, 0570)

$182.99

$

Usually ships in 2-12 days

0

20

WASHER, 6x12x.7, Flat

$

$

Not available

90

NUT, Lock, M6

$

$

Not available

180

BOLT, Phillips Head, M6X10

$

$

Not available

190

GASKET, Chute Deflector, LD

$

$

Not available

200

HINGE, Chute

$

$

Not available

230

WELDMENT, Chute, LD

$

$

Not available

240

WELDMENT, Chure Deflector, LD

$

$

Not available

--

Briggs & Stratton 1737865YP

DECAL, Danger Chute Warning, FR/ENG

Note: (Not Illustrated)

$11.99

$

Usually ships in 2-12 days

0
