1027 LD (1697184-00) - Briggs & Stratton 27" Snow Thrower, 9.5 Gross TP (2019) Auger Drive Group Parts Diagram

27" Snow Thrower, 9.5 Gross TP

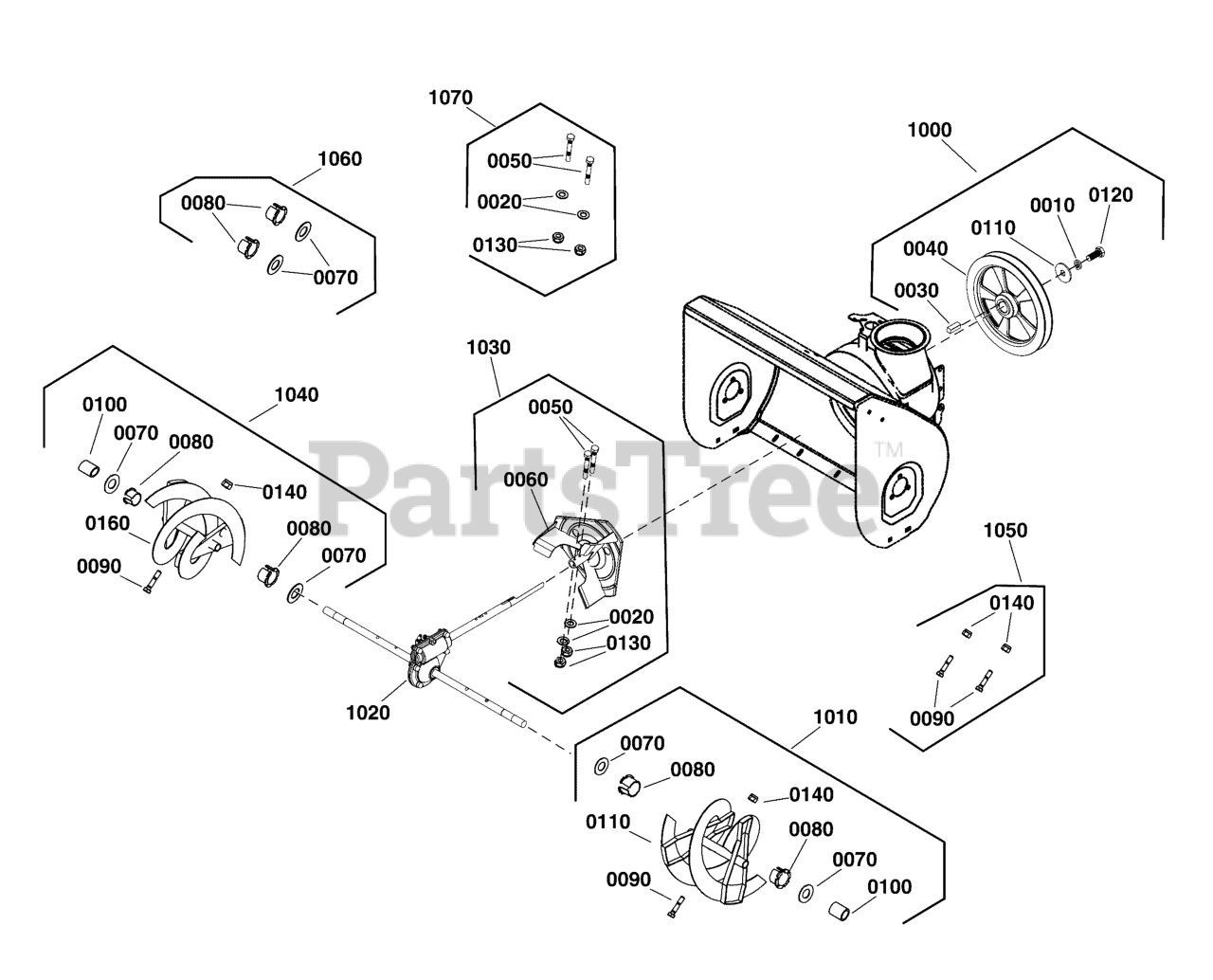

Auger Drive Group Parts Diagram

  • Title

1000

Briggs & Stratton 770803

KIT, Auger Pulley

Note: (Incl. Ref. Nos. 0010, 0030, 0040, 0110, 0120)

$64.99

$

Usually ships in 2-12 days

0

0010

WASHER, Lock, M8

$

$

Not available

0030

KEY, Flat, 6 X 6 X 17

$

$

Not available

0040

PULLEY

$

$

Not available

0110

WASHER, Flat, 8 X 28 X 3

$

$

Not available

0120

SCREW, Hex Head, M8X20

$

$

Not available

1010

Briggs & Stratton 771730

KIT, Auger Assembly, Left

Note: (Incl. Ref. Nos. 0070, 0080, 0090, 0110, 0140)

$164.99

$

Usually ships in 2-12 days

0

0070

WASHER, Flat

$

$

Not available

0080

BEARING, Auger Shaft

$

$

Not available

0090

BOLT, Hex, M8 X 38

$

$

Not available

0110

AUGER, 27", Left, Black

$

$

Not available

0140

NUT, Lock, M8

$

$

Not available

1020

Briggs & Stratton 84001671

KIT, Gear Box, Auger

Note: (Refer to Auger Gear Box Assembly)

$378.99

$

Usually ships in 2-12 days

0

1030

Briggs & Stratton 707560

KIT, Impeller Assembly

Note: (Incl. Ref. Nos. 0020, 0050, 0060, 0130)

$93.99

$

In Stock, only 4 left!

0

0020

WASHER, 6x12x.7, Flat

$

$

Not available

0050

BOLT, Hex, M6 X 38

$

$

Not available

0060

IMPELLER

$

$

Not available

0130

NUT, Lock, M6

$

$

Not available

1040

Briggs & Stratton 771729

KIT, Auger Assembly, Right

Note: (Incl. Ref. Nos. 0070, 0080, 0090, 0140, 0160)

$164.99

$

Usually ships in 2-12 days

0

0070

WASHER, Flat

$

$

Not available

0080

BEARING, Auger Shaft

$

$

Not available

0090

BOLT, Hex, M8 X 38

$

$

Not available

0140

NUT, Lock, M8

$

$

Not available

0160

AUGER, 27", Right, Black

$

$

Not available

1050

Briggs & Stratton 707555

KIT, SHEAR PIN, AUGER

Note: (Incl. Ref. Nos. 0090, 0140)

$12.99

$

In Stock, Qty 16

0

0090

BOLT, Hex, M8 X 38

$

$

Not available

0140

NUT, Lock, M8

$

$

Not available

1060

Briggs & Stratton 707554

KIT, Auger Shaft Hardware

Note: (Incl. Ref. Nos. 0070, 0080)

$20.99

$

Usually ships in 2-12 days

0

0070

WASHER, Flat

$

$

Not available

0080

BEARING, Auger Shaft

$

$

Not available

1070

Briggs & Stratton 707561

KIT,Shear Pin, Impeller

Note: (Incl. Ref. Nos. 0020, 0050, 0130)

$15.99

$

In Stock, only 2 left!

0

0020

WASHER, 6x12x.7, Flat

$

$

Not available

0050

BOLT, Hex, M6 X 38

$

$

Not available

0130

NUT, Lock, M6

$

$

Not available
