1027 (13A-328-101) - Cub Cadet Rear-Engine Riding Mower (2001) Deck Assembly (Part 1) Parts Diagram

Rear-Engine Riding Mower

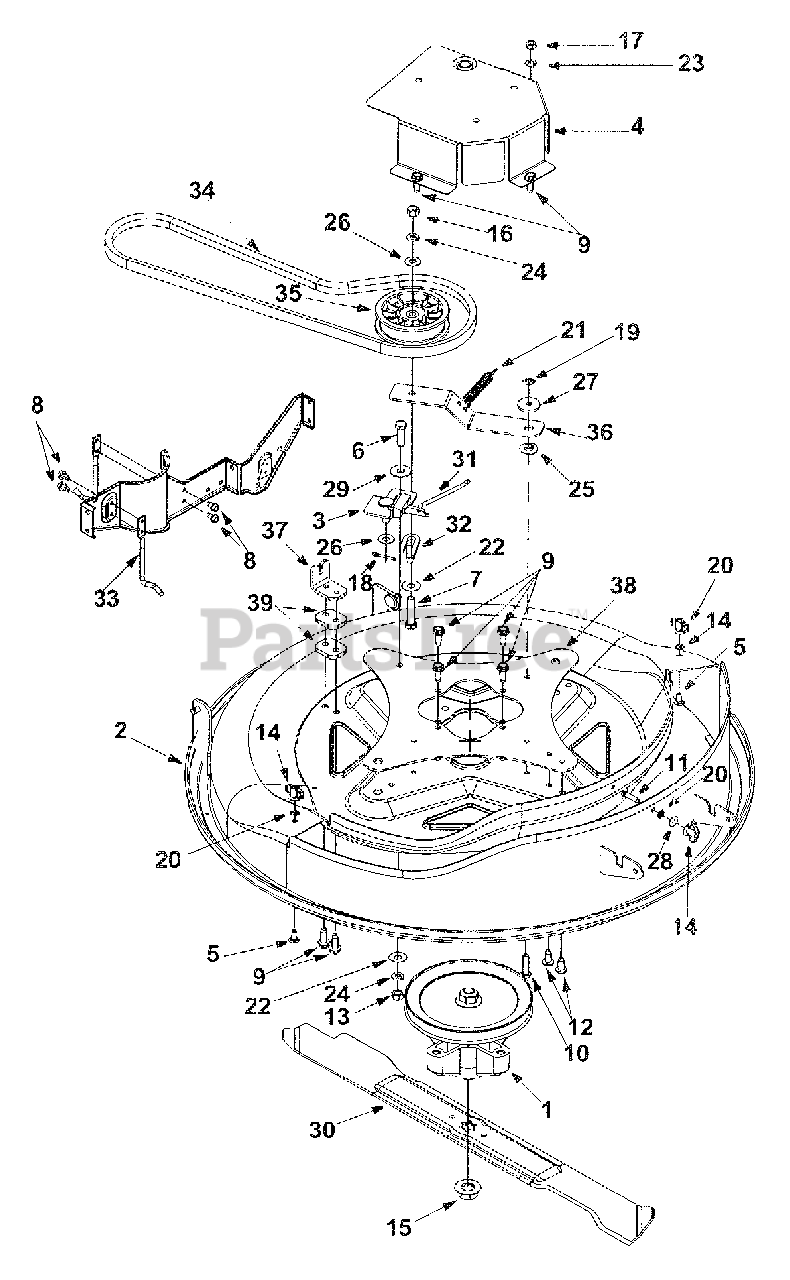

Deck Assembly (Part 1) Parts Diagram

  • Title
1

Cub Cadet 618-0250

Spindle Assembly
(Superseded to 618-0250P)

$402.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 683-0150C-0716

Deck Assembly: Yellow

$

$

Currently unavailable

3

Cub Cadet 683-0159

Brake Bracket Assembly
(Superseded to 983-0159)

$

$

Not available

4

Cub Cadet 683-0173

Deck Belt Cover

Variations

Cub Cadet 683-0173-0637

Deck Belt Cover Assembly, Black - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0173-0650

Deck Belt Cover Assembly, Black - RED METALLIC (0650)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0173-0665

Deck Belt Cover Assembly, Black - YARDMAN GREEN (0665)

$66.99

$

Usually ships in 3-6 days

0

$57.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0134

Carriage Screw 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0191

Hex Bolt 3/8-24 x 1.25 Grade 8

$4.99

$

In Stock, Qty 9

0

7

Cub Cadet 710-0347

Hex Screw 3/8-16 x 1.75 Gr. 5

$5.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0599

Self-Tapp. Screw 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0650

Self-Tapp. Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0672

Hex Cap Scr. 5/16-24 x 1.25

$4.49

$

In Stock, Qty 18

0

11

Cub Cadet 710-0932

Carriage Screw
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

12

Cub Cadet 710-1611

Torx Screw 5/16-18 x .75
(Superseded to 710-1611B)

$6.99

$

In Stock, only 2 left!

0

13

Cub Cadet 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

14

Cub Cadet 712-0397

Wing Nut With Bell Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0417A

Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3057

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

18

Cub Cadet 714-0115

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

19

Cub Cadet 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

20

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 732-0429A

Extension Spring
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0101

Flat Washer 3/8 x 1.00 x .030
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0289

Bushing
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

26

Cub Cadet 736-0300

Flat Washer .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0343

Flat Washer .330 x 1.25 x .120

$4.49

$

In Stock, Qty 7

0

28

Cub Cadet 736-3020

Flat Washer

$6.99

$

In Stock, Qty 9

0

29

Cub Cadet 738-0968

Spacer
(Superseded to 938-0968)

$5.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 742-0651

Three-in-one Blade
(Superseded to 942-0651)

Variations

Cub Cadet 742-0651-0637

Mower Blade, 27.56" Lg 3-Function Star - POWDER BLACK (0637)

$61.99

$

In Stock, only 1 left!

0

$

$

31

$

$

Not available

32

Cub Cadet 747-0972

Belt Keeper

$

$

Not available

33

Cub Cadet 747-1172

Belt Keeper

Variations

Cub Cadet 747-1172-0637

BELT KEEPER - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 754-0754

V Belt
(Superseded to 954-0754)

$65.99

$

In Stock, only 2 left!

0

35

Cub Cadet 756-0627

Flat Idler Pulley
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

36

Cub Cadet 783-0463

Idler Bracket

Variations

Cub Cadet 783-0463-0637

BRACKET-DE - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 783-0529

Cable Bracket

$

$

Not available

38

Cub Cadet 783-0569A

Deck Plate
(Superseded to 783-0569B-0637)

Variations

Cub Cadet 783-0569A-0637

USE 783-0569B-0637 PLATE-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

39

Cub Cadet 783-0781

Deck Skirt

$

$

Not available

?40

Cub Cadet 783-0594

Deck Cable Bracket
(Superseded to 783-0594-0637)

$

$

Not available
