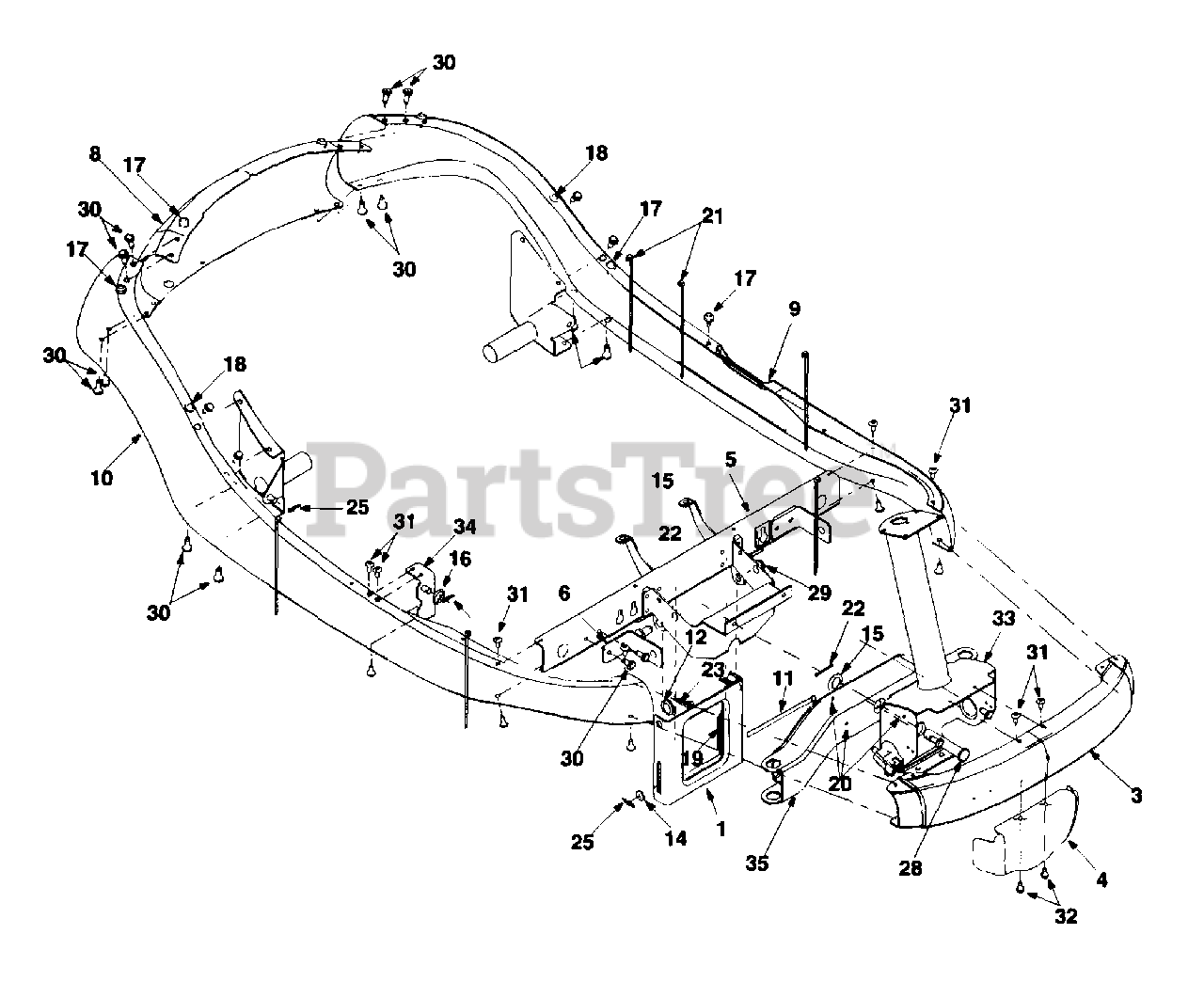

1027 (13A-328-101) - Cub Cadet Rear-Engine Riding Mower (2000) Frame Parts Diagram

Rear-Engine Riding Mower

Frame Parts Diagram

  • Title

1

Cub Cadet 783-0605

Deck Stabilizing Bracket
(Superseded to 783-0605-0637)

Variations

Cub Cadet 783-0605-0637

BRACKET-STABILIZER - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 783-0564A

Front Frame: Upper

Variations

Cub Cadet 783-0564A-0498

UPPER FRAME FRONT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0564A-0637

UPPER FRAME FRONT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0564A-0648

UPPER FRAME FRONT - TECH GRAY (0648)

$

$

Not available

Cub Cadet 783-0564A-0650

UPPER FRAME FRONT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0564A-0674

UPPER FRAME FRONT - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 783-0564A-0716

UPPER FRAME FRONT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

Cub Cadet 783-0811-0716

Steering Gear Cover

$

$

Currently unavailable

5

Cub Cadet 683-0264

Front Channel Assembly
(Superseded to 683-0264A-0637)

Variations

Cub Cadet 683-0264-0637

USE 683-0264A-0637 CHANNEL AS - POWDER BLACK (0637)

$147.99

$

Usually ships in 3-6 days

0

$147.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 783-0554

Cam Bracket

Variations

Cub Cadet 783-0554-0637

CAM BRACKET - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0554-0665

CAM BRACKET - YARDMAN GREEN (0665)

$

$

Not available

$

$

8

Cub Cadet 783-0414A

Frame Rail: Rear

Variations

Cub Cadet 783-0414A-0498

FRAME-UPPER REAR - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0414A-0637

FRAME-UPPER REAR - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0414A-0648

UPPER REAR FRAME - TECH GRAY (0648)

$

$

Not available

Cub Cadet 783-0414A-0650

FRAME-UPPER REAR - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0414A-0674

FRAME-UPPER REAR - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 783-0414A-0716

UPPER REAR FRAME - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0414A-0721

USE 783-0414A-4044 FRAME-UPPE - SEARS RED (0721)

$

$

Not available

Cub Cadet 783-0414A-4044

FRAME-UPPER REAR - CRAFTSMAN RED (4044)

$

$

Not available

$

$

9

Cub Cadet 783-0413

Frame Rail -- LH.

Variations

Cub Cadet 783-0413-0498

FRAME RAIL (LH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0413-0637

FRAME RAIL (LH) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0413-0648

FRAME RAIL (LH) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 783-0413-0650

FRAME RAIL (LH) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0413-0674

FRAME RAIL (LH) - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 783-0413-0716

FRAME RAIL (LH) - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0413-0721

USE 783-0413-4044 RAIL FRAME - SEARS RED (0721)

$

$

Not available

Cub Cadet 783-0413-4044

RAIL FRAME LH - CRAFTSMAN RED (4044)

$

$

Not available

$

$

10

Cub Cadet 783-0412A

Frame Rail -- R.H.
(Superseded to 783-0412B)

Variations

Cub Cadet 783-0412A-0498

FRAME RAIL (RH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0412A-0637

USE 783-0412B-0637 RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0412A-0648

FRAME RAIL (RH) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 783-0412A-0650

FRAME RAIL (RH) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0412A-0674

FRAME RAIL (RH) - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 783-0412A-0716

FRAME RAIL (RH) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

11

Cub Cadet 747-0985

Deck Rod

$

$

Not available

12

Cub Cadet 736-3019

Flat Washer .531 X 1.062 X .134

$5.99

$

In Stock, Qty 11

0

14

Cub Cadet 736-0275

Flat Washer 5/16

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0187

Flat Washer .64 I.D. X 1.24 X .06

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0101

Flat Washer 3/8 X 1.00 X .030
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 735-0271

Rubber Bumper
(Superseded to 735-0271A)

$8.99

$

In Stock, only 2 left!

0

18

Cub Cadet 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

19

Cub Cadet 732-0829

Extension Spring
(Superseded to 932-0829)

$

$

Not available

20

Cub Cadet 737-3007

Grease

$

$

Currently unavailable

21

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 714-0470

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 714-0147

Hairpin Clip

$4.99

$

In Stock, Qty 6

0

25

Cub Cadet 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 711-1165

Clevis Pin

$13.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 711-0332

Lift Bracket Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

30

Cub Cadet 710-1611

TT Screw 5/16-18 x .75
(Superseded to 710-1611B)

$6.99

$

In Stock, only 2 left!

0

31

Cub Cadet 710-1017

Torx Mach. AB Scr. 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 9

0

32

Cub Cadet 710-0599

Hex TT Screw 1/4-20

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 683-0163A

Steering Support Bracket

$

$

Not available

34

Cub Cadet 683-0160

Pivot Bracket Ass'y.: Hood

$

$

Not available

35

Cub Cadet 683-0142

Pivot Bar Assembly

Variations

Cub Cadet 683-0142-0637

PIVOT BAR ASSEMBLY(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-0142-0665

PIVOT BAR ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

$

$
