10262 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) HOUSING HANDLE BRACKET & WHEEL ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

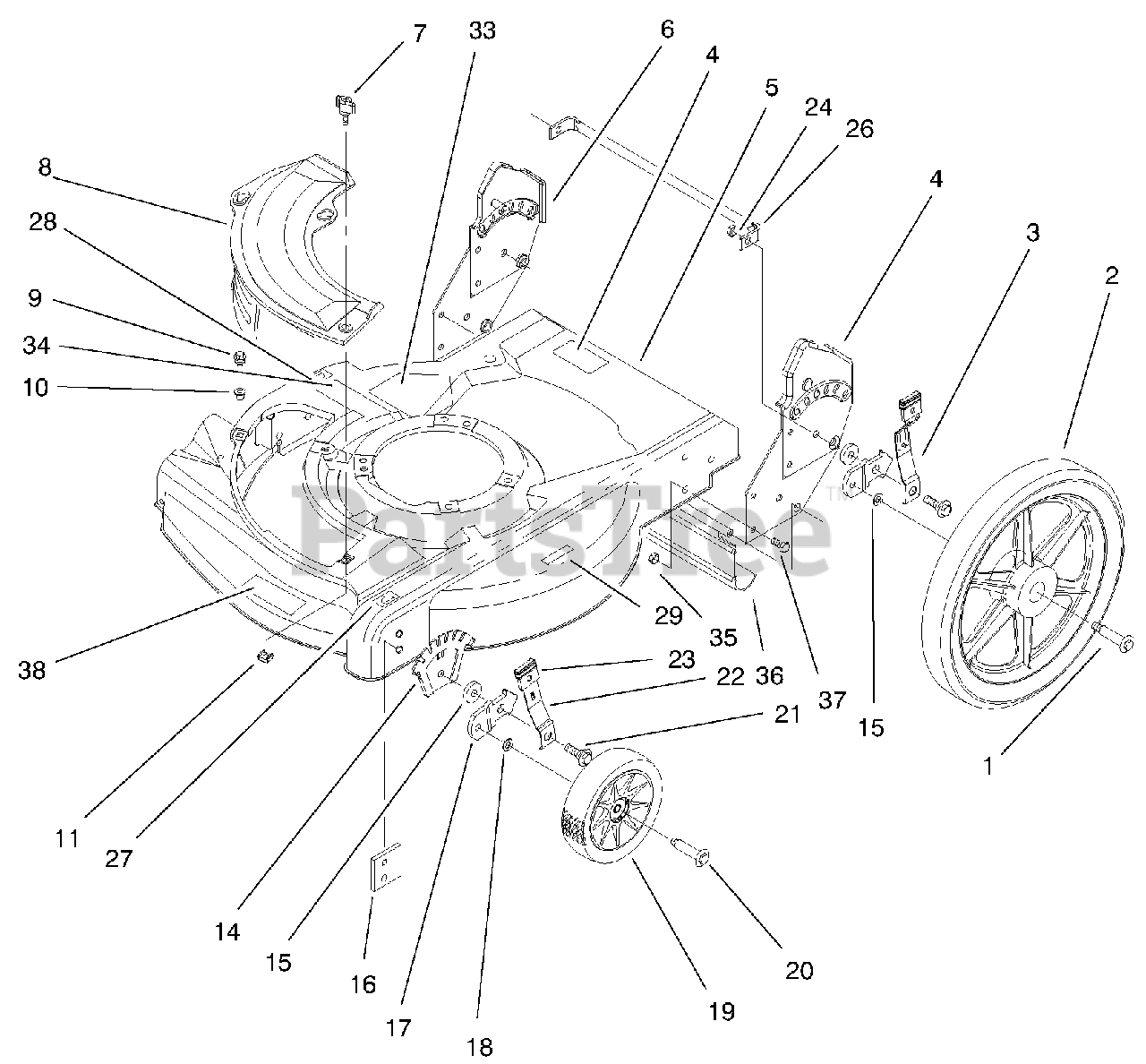

HOUSING HANDLE BRACKET & WHEEL ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 99-5211

Shoulder Bolt

$

$

Not available

2

Lawn-Boy 99-5220

Wheel-14 Inch

$

$

Not available

3

Lawn-Boy 99-5224

Assy-Spring Arm

$

$

Not available

4

Lawn-Boy 99-5214-03

Assy-Bracket Handle,LH

$

$

Not available

5

Lawn-Boy 95-7425-02

Asm-Housing/Baffle HP
(Superseded to 98-4471)

$

$

Not available

6

Lawn-Boy 99-5213-03

Assy-Bracket Handle,Rh

$

$

Not available

$5.49

$

In Stock, Qty 13

0

8

Lawn-Boy 92-8630

Plate-Mulch

$

$

Not available

9

Lawn-Boy 614677

Screw-Sems

$4.49

$

In Stock, Qty 12

0

10

Lawn-Boy 94-1610

Grommet-Plastic

$1.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 613765

Nut-Cage

$9.99

$

In Stock, Qty 7

0

14

Lawn-Boy 92-4881-03

Plate-Hght Adj

$29.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 92-4890

Washer-Wheel

$8.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 92-7731

Plate-Baffle

$10.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 95-7403-03

Brkt-Whl Ht Adj

$

$

Not available

18

Lawn-Boy 40-1940

Washer-Wheel Bolt

$2.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 684776

6" Wheel & Tire ASM

$37.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 92-1099

Bolt-Shoulder 6" Wheel

$8.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, only 4 left!

0

22

Lawn-Boy 614687

Arm-Front Spring

$21.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 92-1008

Knob-Height Adj Lever

$14.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 3296-39

Nut-Lock Ni

$2.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 99-5212-03

Brace-Handle Bracket

$

$

Not available

27

Lawn-Boy 92-2915

Decal-HOC L

$6.49

$

Usually ships in 3-6 days

0

28

Lawn-Boy 92-2914

Decal-HOC R

$

$

Not available

29

Lawn-Boy 93-7250

Decal-Safety Instruct

$15.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 43-8480

Decal-Danger

$6.99

$

In Stock, Qty 6

0

34

Lawn-Boy 99-6018

Decal-Warning

$2.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 3296-29

Nut-Lock Ni

$2.49

$

In Stock, Qty 20+

0

36

Lawn-Boy 92-8647

Shield-Trailing

$41.99

$

In Stock, only 1 left!

0

37

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 20+

0

38

Lawn-Boy 99-6122

Decal-Deck

$

$

Not available

Lawn-Boy 95-7052

Plate-Chute Opening

Note: Not illustrated

$36.99

$

In Stock, only 3 left!

0
