10262 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) HANDLE & CONTROL ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

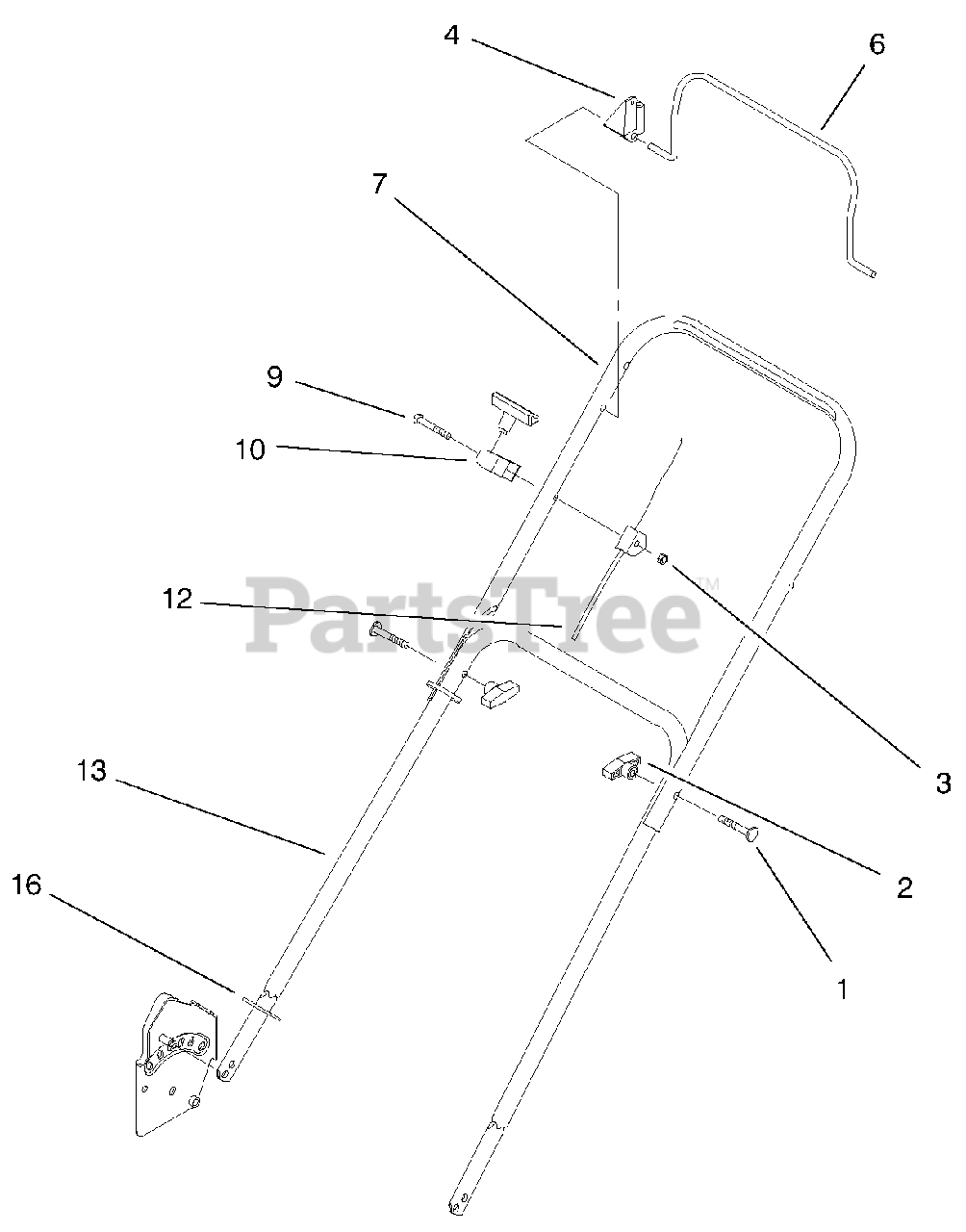

HANDLE & CONTROL ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 614697

Screw-HH

$2.49

$

In Stock, Qty 13

0

2

Lawn-Boy 98-7134

Knob-Handle

$2.99

$

In Stock, Qty 15

0

3

Lawn-Boy 3296-73

Nut-Lock Ni

$5.49

$

In Stock, only 3 left!

0

4

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

6

Lawn-Boy 93-4184-03

Bail-Brake

$41.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 95-1713-05

Handle-Upper

$

$

Not available

9

Lawn-Boy 321-50

Screw-HH

$1.99

$

In Stock, Qty 8

0

10

Lawn-Boy 93-7383

Rope-Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

12

Lawn-Boy 99-6361

Cable-Flywheel Brake Hi Wheel 4 Cyc

$86.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 614643-05

Section-Lower Handle

$

$

Not available

16

Lawn-Boy 93-3653

Guard-Handle
(Superseded to 104-1013)

$

$

Not available
