10262 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) ENGINE & BLADE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

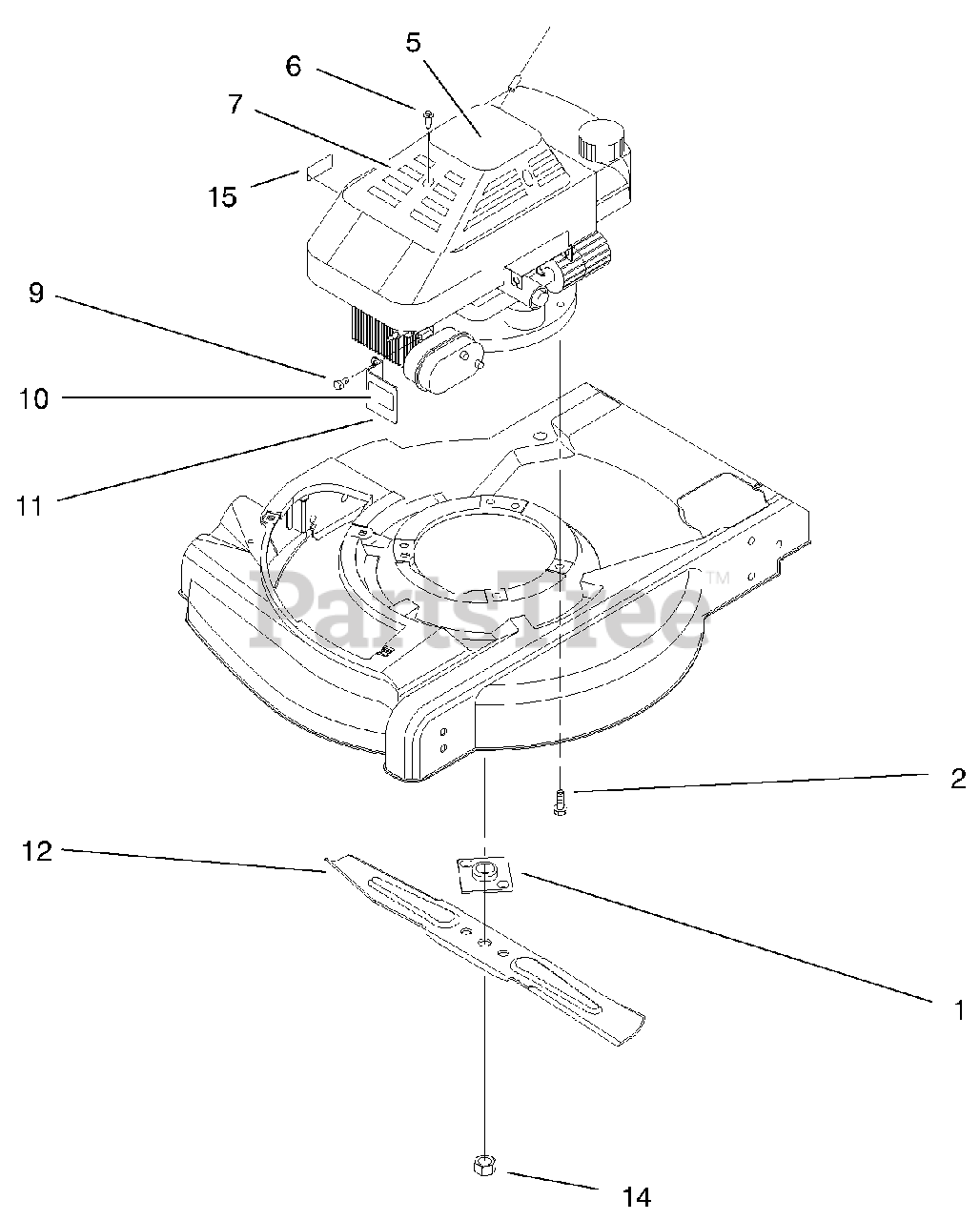

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 677525

Plate & Collar S

$51.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 95-1726

Screw-Taptite w/Patch

$2.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 95-7449

Decal-Recoil

$

$

Not available

6

Lawn-Boy 92-4852

Screw-Cover Recoil

$

$

Not available

7

Lawn-Boy 92-4854

Cover-Starter

$

$

Not available

9

Lawn-Boy 32144-85

Screw-TAP

$1.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 65-2690

Decal-Hot Surface

$5.49

$

In Stock, only 4 left!

0

11

Lawn-Boy 94-6066-03

Guard-Muffler

$

$

Not available

12

Lawn-Boy 612543

Blade-21" Whirl
(Superseded to 612543-03)

$33.99

$

In Stock, Qty 18

0

14

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 11

0

15

Lawn-Boy 92-4851

Decal-Oil Instr. F/W Eng

$1.99

$

In Stock, only 1 left!

0
