1026 (1697329-00) - Briggs & Stratton 26" Snow Thrower, 9.5 Gross TP (2020) Controls Group Parts Diagram

26" Snow Thrower, 9.5 Gross TP

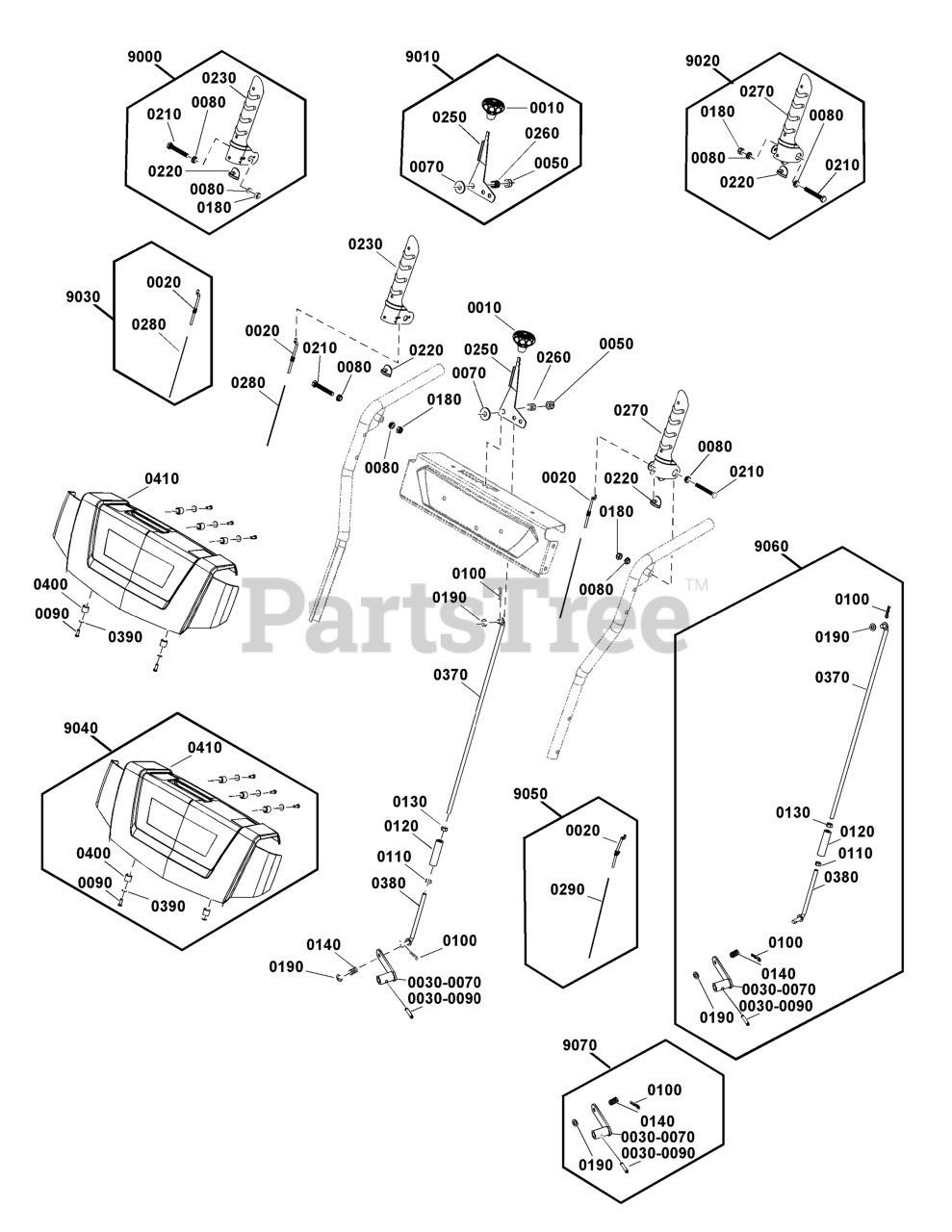

Controls Group Parts Diagram

  • Title

9000

Murray 707800

KIT, RIGHT HAND LEVER, TRACTION DRIVE

Note: (Incl. Ref. Nos. 0080, 0180, 0210, 0220, 0230)

$29.99

$

Usually ships in 2-12 days

0

0080

SPACER, Idler Plate, Small

$

$

Not available

0180

NUT, Lock, M8

$

$

Not available

0210

SCREW, Hex Head, M8X55

$

$

Not available

0220

CAP, Rubber

$

$

Not available

0230

*LEVER, Traction Drive

$

$

Not available

9010

Murray 707794

KIT, LEVER, SPEED

Note: (Incl. Ref. Nos. 0010, 0050, 0070, 0250, 0260)

$31.99

$

In Stock, only 2 left!

0

0010

KNOB, Speed Control Lever

$

$

Not available

0050

NUT, Lock, M10

$

$

Not available

0070

WASHER, 10x28x3, Flat

$

$

Not available

0250

LEVER, Speed Control

$

$

Not available

0260

SPRING, Speed Control

$

$

Not available

9020

Murray 707802

KIT, LEFT HAND LEVER, AUGER DRIVE

Note: (Incl. Ref. Nos. 0080, 0180, 0210, 0220, 0270)

$29.99

$

Usually ships in 2-12 days

0

0080

SPACER, Idler Plate, Small

$

$

Not available

0180

NUT, Lock, M8

$

$

Not available

0210

SCREW, Hex Head, M8X55

$

$

Not available

0220

CAP, Rubber

$

$

Not available

0270

LEVER, Auger Engagement

$

$

Not available

9030

Murray 707766

KIT, CABLE, TRACTION DRIVE

Note: (Incl. Ref. Nos. 0020, 0280)

$54.99

$

Usually ships in 2-12 days

0

0020

KIT, Cable Hardware

$

$

Not available

0280

CABLE, Traction Drive

$

$

Not available

9040

Murray 707796

KIT, DASH, BRIGGS

Note: (Incl. Ref. Nos. 0090, 0390, 0400, 0410)

$139.99

$

Usually ships in 2-12 days

0

0090

SCREW, Phillips Head, ST4, 2 X 14

$

$

Not available

0390

WASHER, Flat

$

$

Not available

0400

BUCKLE, Lamp

$

$

Not available

0410

PANEL, Dash

$

$

Not available

9050

Murray 707803

KIT, Cable, Auger Drive

Note: (Incl. Ref. Nos. 0020, 0290)

$158.99

$

Usually ships in 2-12 days

0

0020

KIT, Cable Hardware

$

$

Not available

0290

CABLE, Auger Drive

$

$

Not available

9060

Murray 707818

KIT, SHIFT ROD

Note: (Incl. Ref. Nos. 0030-0070, 0030-0090, 0100, 0110, 0120, 0130, 0140, 0190, 0370, 0380)

$54.99

$

Usually ships in 2-12 days

0

0030-0070

ARM, Speed Select

$

$

Not available

0030-0090

PIN, Spring, 6 X 30

$

$

Not available

0100

PIN, Hair, Cotter

$

$

Not available

0110

NUT, Hex, M8

$

$

Not available

0120

SLEEVE, Adjustment, M8

$

$

Not available

0130

NUT, Hex, M8

$

$

Not available

0140

SPRING, Speed Select

$

$

Not available

0190

WASHER, FLAT, 8X16X1.2

$

$

Not available

0370

ROD, Upper, Speed Control

$

$

Not available

0380

ROD, Lower, Speed Control

$

$

Not available

9070

Murray 709539

KIT, SHIFT ROD HARDWARE

Note: (Incl. Ref. Nos. 0030-0070, 0030-0090, 0100, 0140, 0190)

$15.99

$

Usually ships in 2-12 days

0

0030-0070

ARM, Speed Select

$

$

Not available

0030-0090

PIN, Spring, 6 X 30

$

$

Not available

0100

PIN, Hair, Cotter

$

$

Not available

0140

SPRING, Speed Select

$

$

Not available

0190

WASHER, FLAT, 8X16X1.2

$

$

Not available
