1026 (1697329-00) - Briggs & Stratton 26" Snow Thrower, 9.5 Gross TP (2020) Auger Housing Group Parts Diagram

26" Snow Thrower, 9.5 Gross TP

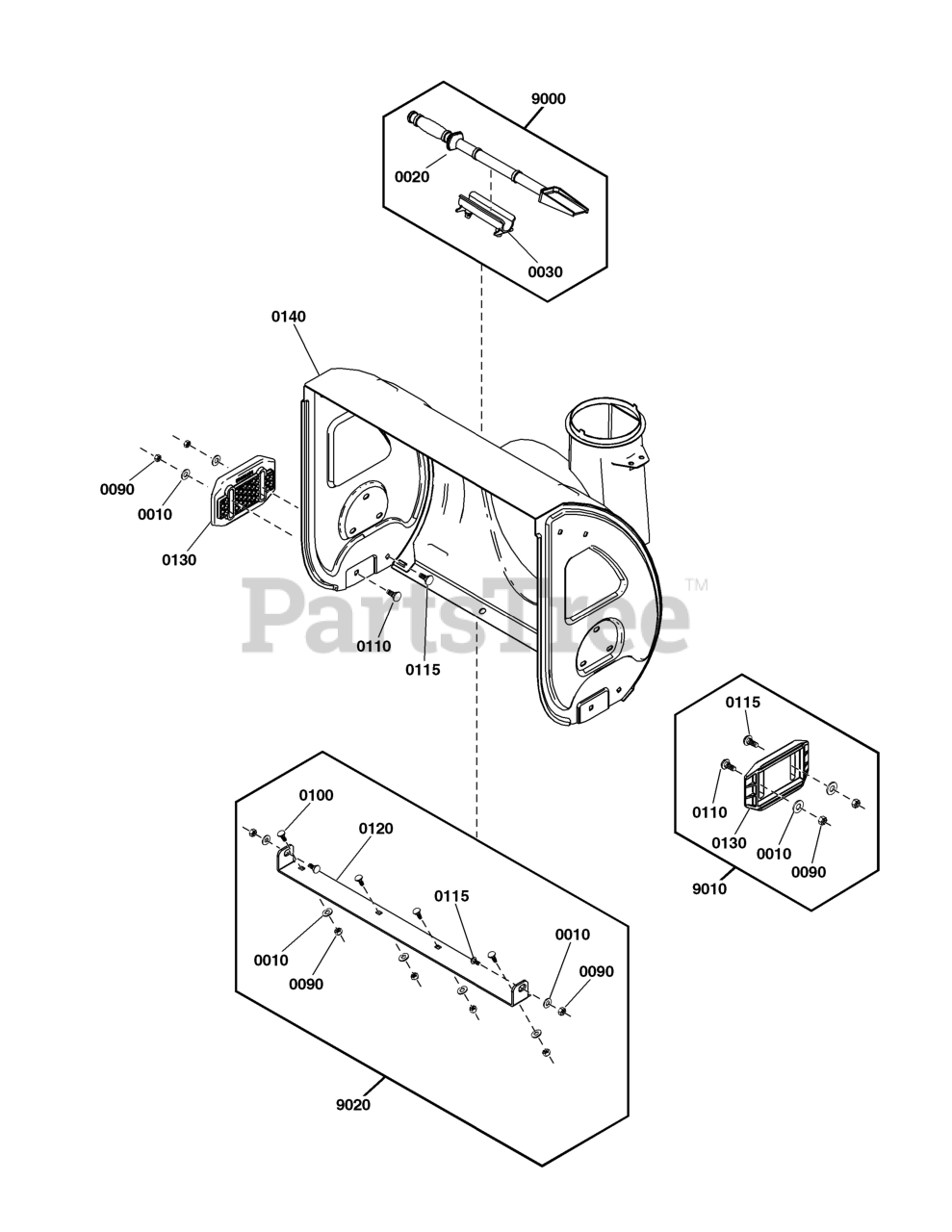

Auger Housing Group Parts Diagram

  • Title
0140

AUGER HOUSING, 26"

Note: (Refer to Note:*)

$

$

Not available

9000

Murray 707549

KIT, CLEANOUT BRUSH STICK

Note: (Incl. Ref. Nos. 0020, 0030)

$28.99

$

Usually ships in 2-12 days

0

0020

SHOVEL, Cleanout

$

$

Not available

0030

CLAMP, Cleanout

$

$

Not available

9010

Murray 84004733

KIT, Skid Shoe

Note: (Incl. Ref. Nos. 0010, 0090, 0110, 0115, 0130)

$39.99

$

Usually ships in 2-12 days

0

0010

WASHER, 8x22x2, Flat

$

$

Not available

0090

NUT, Lock, M8

$

$

Not available

0110

BOLT, Carriage, M8 X 25

$

$

Not available

0115

BOLT, Carriage, M8 X 30

$

$

Not available

0130

SHOE, Skid, Reversible

$

$

Not available

9020

Murray 84006037

KIT, Scraper Bar

Note: (Incl. Ref. Nos. 0090, 0100, 0115, 0120)

$

$

Currently unavailable

0090

NUT, Lock, M8

$

$

Not available

0100

BOLT, Carriage, M8 X 18

$

$

Not available

0115

BOLT, Carriage, M8 X 30

$

$

Not available

0120

BLADE, Scraper, 26"

$

$

Not available
