10252 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE AND BLADE ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

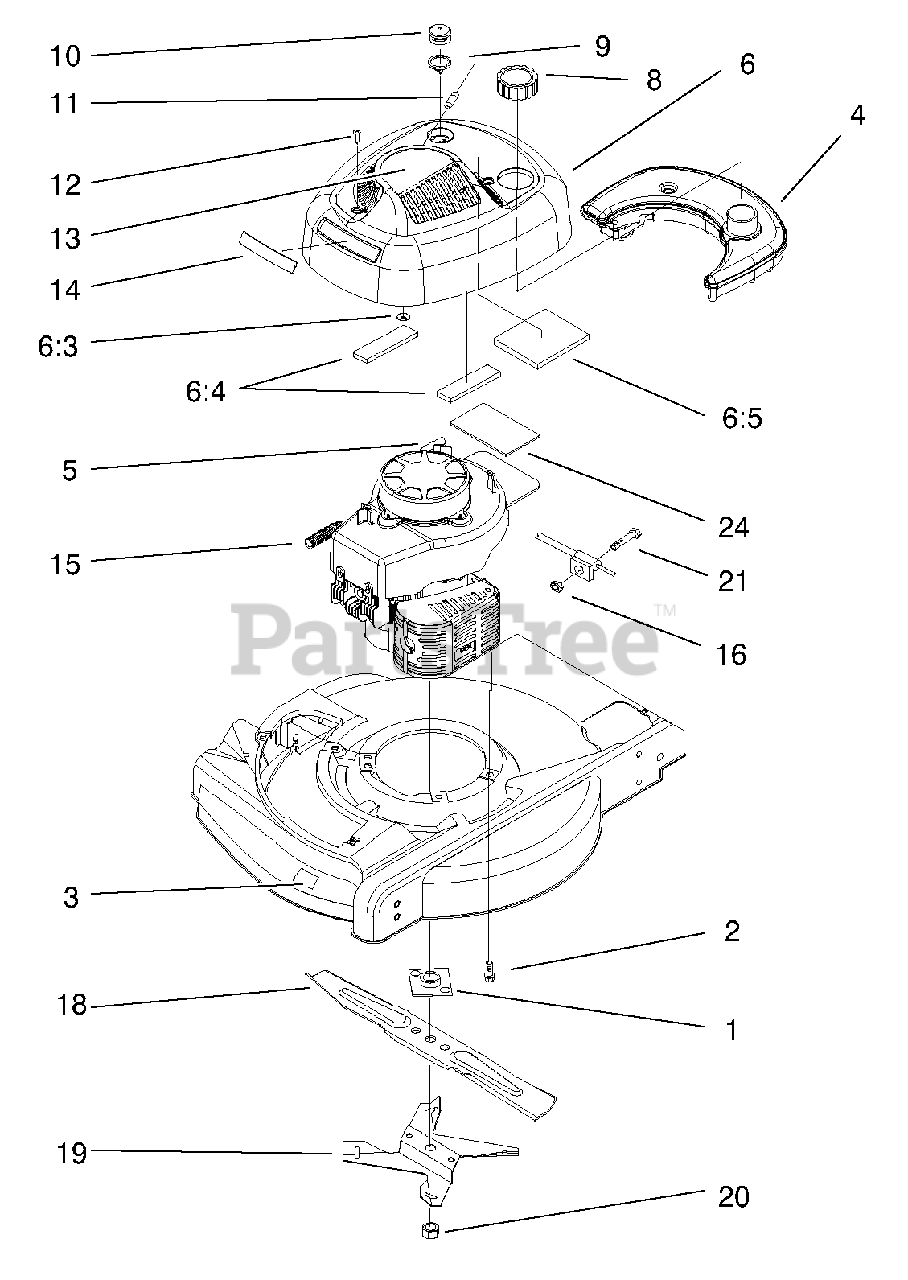

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 677525

PLATE & COLLAR ASM

$51.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 611774

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

3

Lawn-Boy 100-6389

DECAL-DECK

$

$

Not available

4

Lawn-Boy 95-1897

TANK

$67.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 612782

LINE-FUEL

$7.49

$

In Stock, Qty 9

0

6

Lawn-Boy 100-6398

SHROUD & RECOIL COVER ASM

$

$

Not available

6:3

Lawn-Boy 613329

NUT-PUSH

$2.49

$

Usually ships in 3-6 days

0

6:4

Lawn-Boy 99-1522

STRIP-FOAM

$2.99

$

In Stock, Qty 9

0

6:5

Lawn-Boy 99-1521

STRIP-FOAM

$10.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 98-8344

FUEL & OIL CAP ASM

$24.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 92-1701

STOP-ROPE
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 95-7621

SCREW-SEMS, PAN

$1.99

$

In Stock, Qty 19

0

13

Lawn-Boy 95-7417

DECAL - RECOIL

$

$

Not available

14

Lawn-Boy 92-8615

APPLIQUE-SHROUD

$31.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 93-4306

SPRING-COMPRESSION

$6.49

$

In Stock, only 1 left!

0

16

Lawn-Boy 306531

Nut
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 612543

Blade
(Superseded to 612543-03)

$33.99

$

In Stock, Qty 18

0

19

Lawn-Boy 99-6351-03

FAN-MULCHING

$37.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 11

0

21

Lawn-Boy 314576

SCREW

$1.99

$

In Stock, Qty 6

0

24

Lawn-Boy 98-1386

PAD-FOAM S

$

$

Not available
