10252 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) CARBURETOR ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

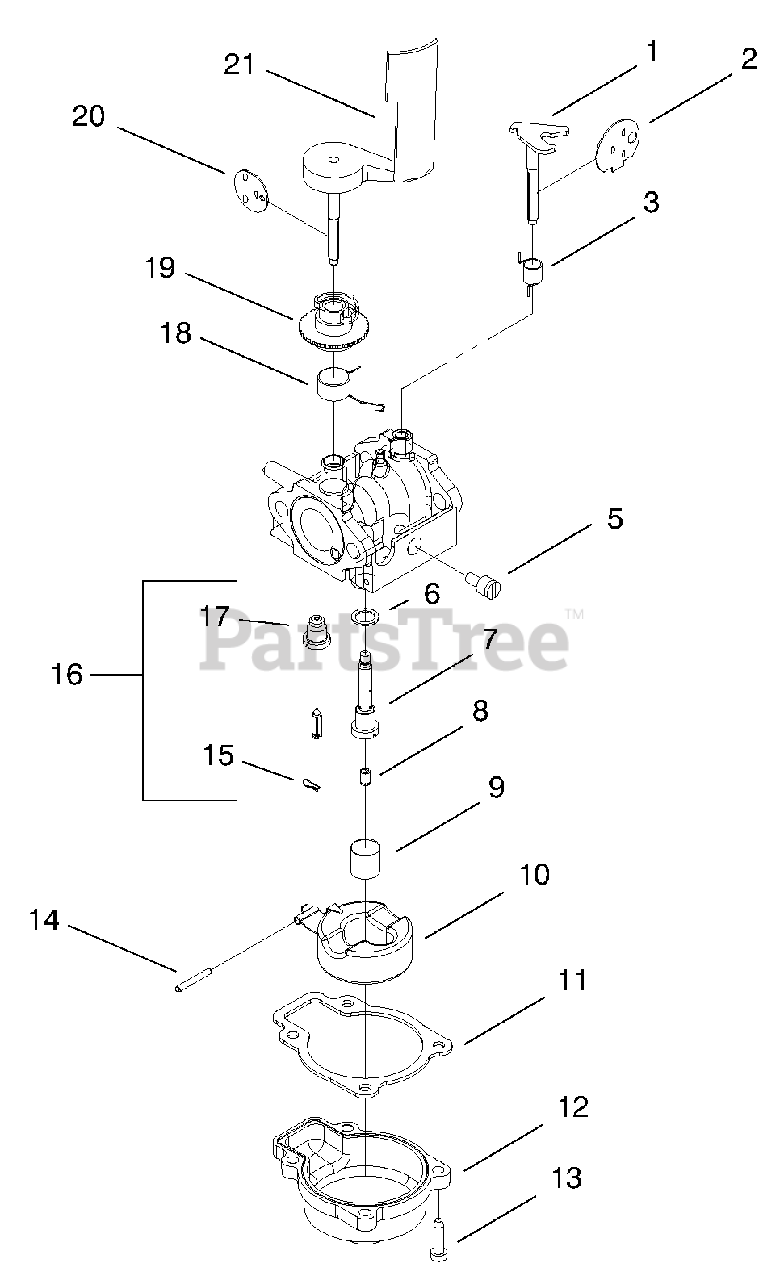

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 95-5581

Shaft-Choke

$3.99

$

In Stock, only 4 left!

0

2

Lawn-Boy 94-5788

Disc-Choke

$3.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 95-5583

Spring-Choke Return

$4.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 98-7041

Pilot-Jet

$15.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 612383

Washer

$1.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 98-7001

Nozzle

$37.99

$

In Stock, Qty 5

0

8

Lawn-Boy 98-1357

Mainjet 77.5

$14.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 94-5787

Filter-Fuel

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 95-1899

Float & Arm ASM

$19.99

$

In Stock, Qty 8

0

11

Lawn-Boy 98-1362

Gasket-Float Chamber

$3.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 92-9691

Float Chamber

$42.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 608850

Screw

$2.49

$

In Stock, only 3 left!

0

14

Lawn-Boy 92-6389

Pin

$5.99

$

In Stock, only 1 left!

0

15

Clip

$

$

Not available

16

Lawn-Boy 92-9697

Float & Valve ASM

$27.99

$

In Stock, Qty 20+

0

17

ASM-Seat

$

$

Not available

18

Lawn-Boy 98-7011

Spring-Throttle

$3.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 610834

Collar Adjustment

$4.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 98-7047

Disc-Throttle

$1.99

$

In Stock, Qty 10

0

21

Lawn-Boy 92-6376

Air Vane & Shaft
(Superseded to 104-4430)

$12.99

$

In Stock, Qty 14

0
