10252 EGC - Homelite Expert Gardner String Trimmer General Assembly Parts Diagram

Expert Gardner String Trimmer

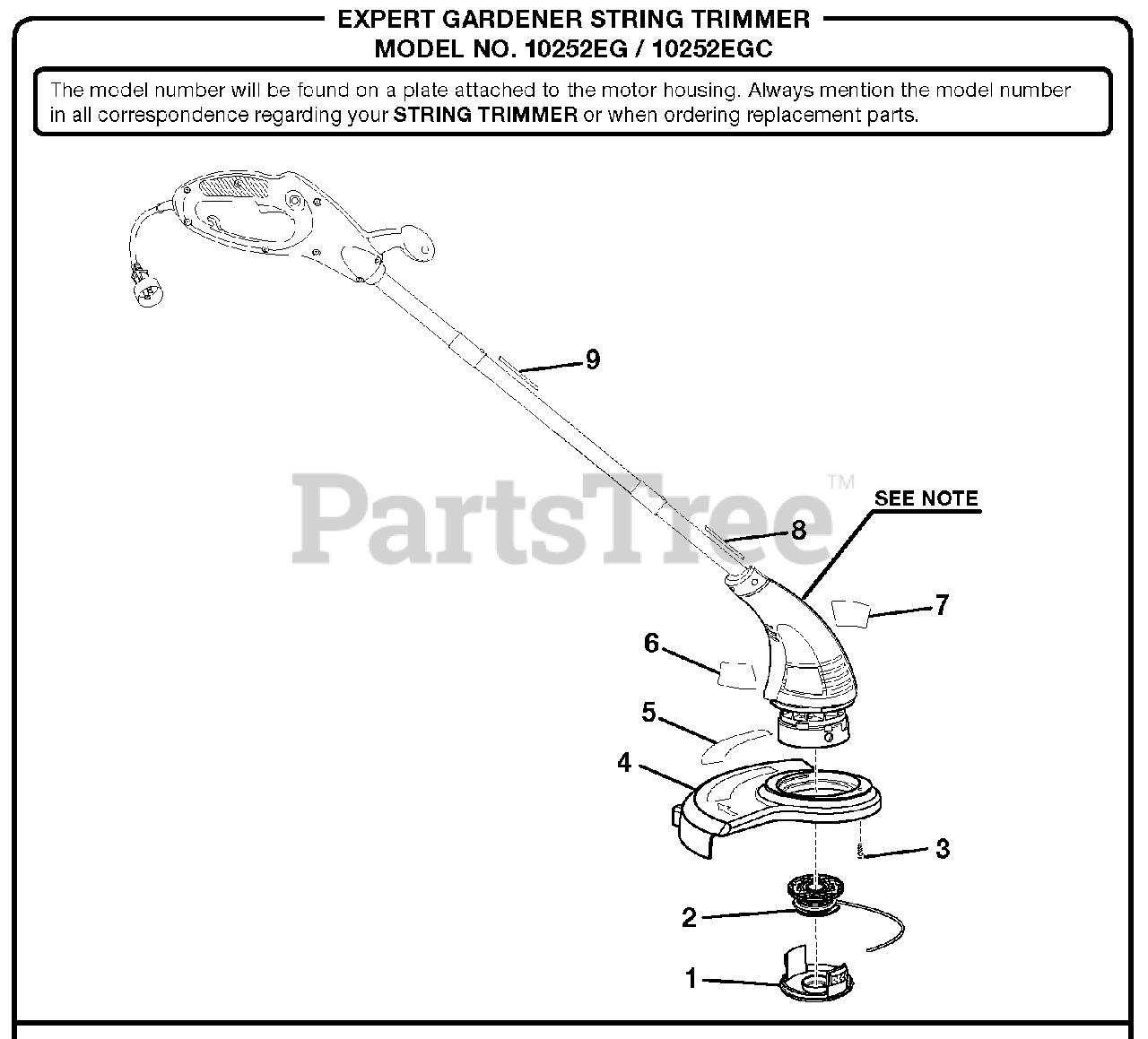

General Assembly Parts Diagram

  • Title
1

Homelite 3411546A-2G

Spool Cap
(Superseded to 3411546BG)

$

$

Not available

2

Homelite 3110382G

Spool w/Line
(Superseded to 3110382AG)

$

$

Not available

3

Homelite 3220811G

Screw (M4 x 16 mm)

$

$

Not available

4

Homelite 31103712G

Grass Shield

$

$

Not available

5

Homelite 941113001

Guard Label

$

$

Not available

6

Homelite 941588004

Data Label

$

$

Not available

7

Homelite 941112001

Logo Label

$

$

Not available

8

Homelite 940749009

Warning Label

$

$

Not available

9

Homelite 940657052

Warning Icon Label

$

$

Not available

Homelite 988000755

Operator's Manual

$

$

Not available
