10249 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) HANDLE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

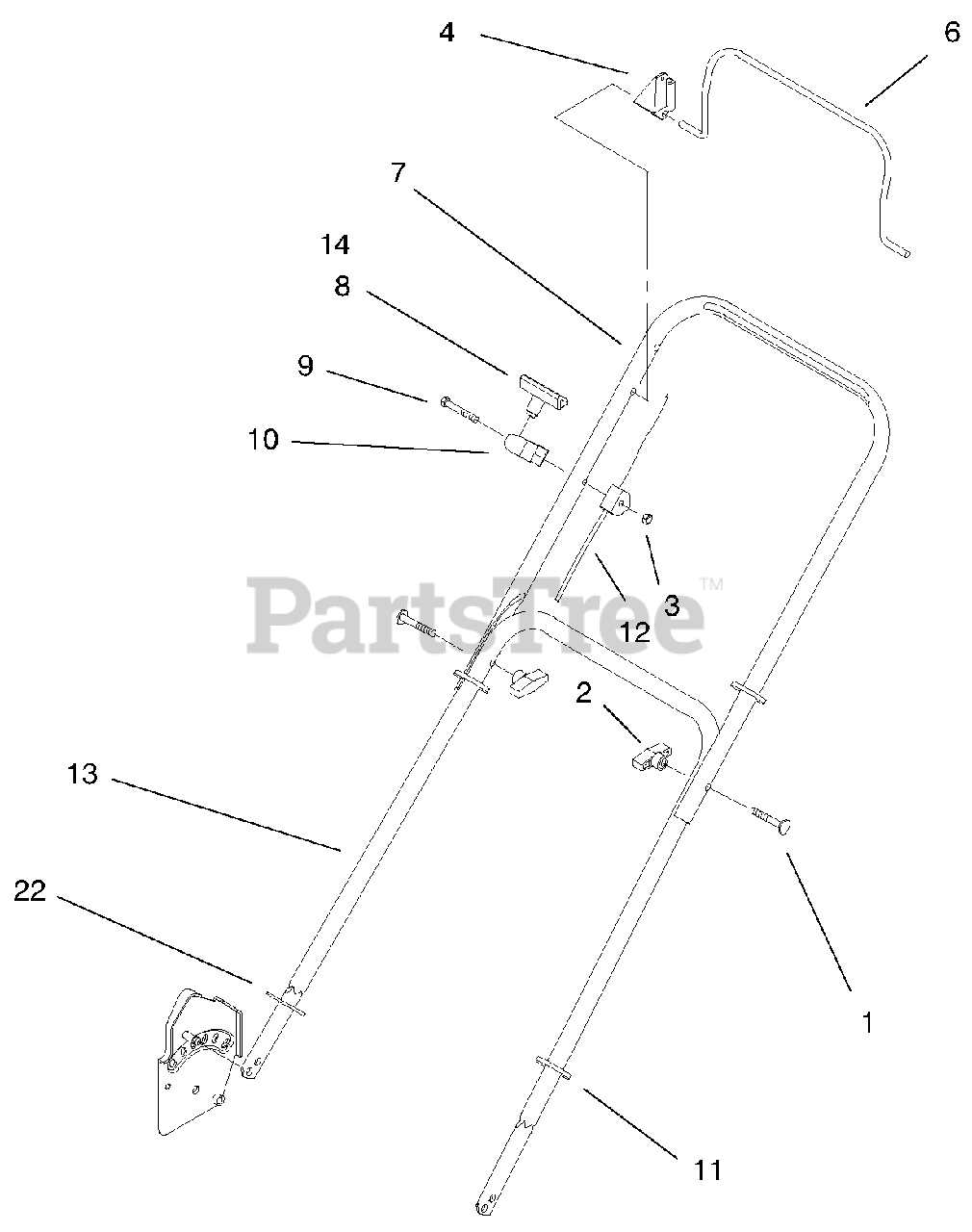

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 20+

0

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 8

0

4

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$5.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 93-4184

Bail-Flywheel Brake
(Superseded to 93-4184-03)

$41.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 95-1713

Handle Section-Upper
(Superseded to 95-1713-05)

$

$

Not available

8

Lawn-Boy 92-4853

Handle-Starter

$9.49

$

In Stock, only 3 left!

0

9

$1.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, only 2 left!

0

12

Lawn-Boy 98-1560

ASM-Brake Cable

$41.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 614643

Handle Section-Lower
(Superseded to 614643-05)

$

$

Not available

14

Lawn-Boy 92-5424

Staple-Handle

$1.49

$

In Stock, Qty 5

0

22

Lawn-Boy 93-3653

Handle-Guard
(Superseded to 104-1013)

$

$

Not available
