10249 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) ENGINE LEV120-361003A Parts Diagram

Silver Series Walk-Behind Mower

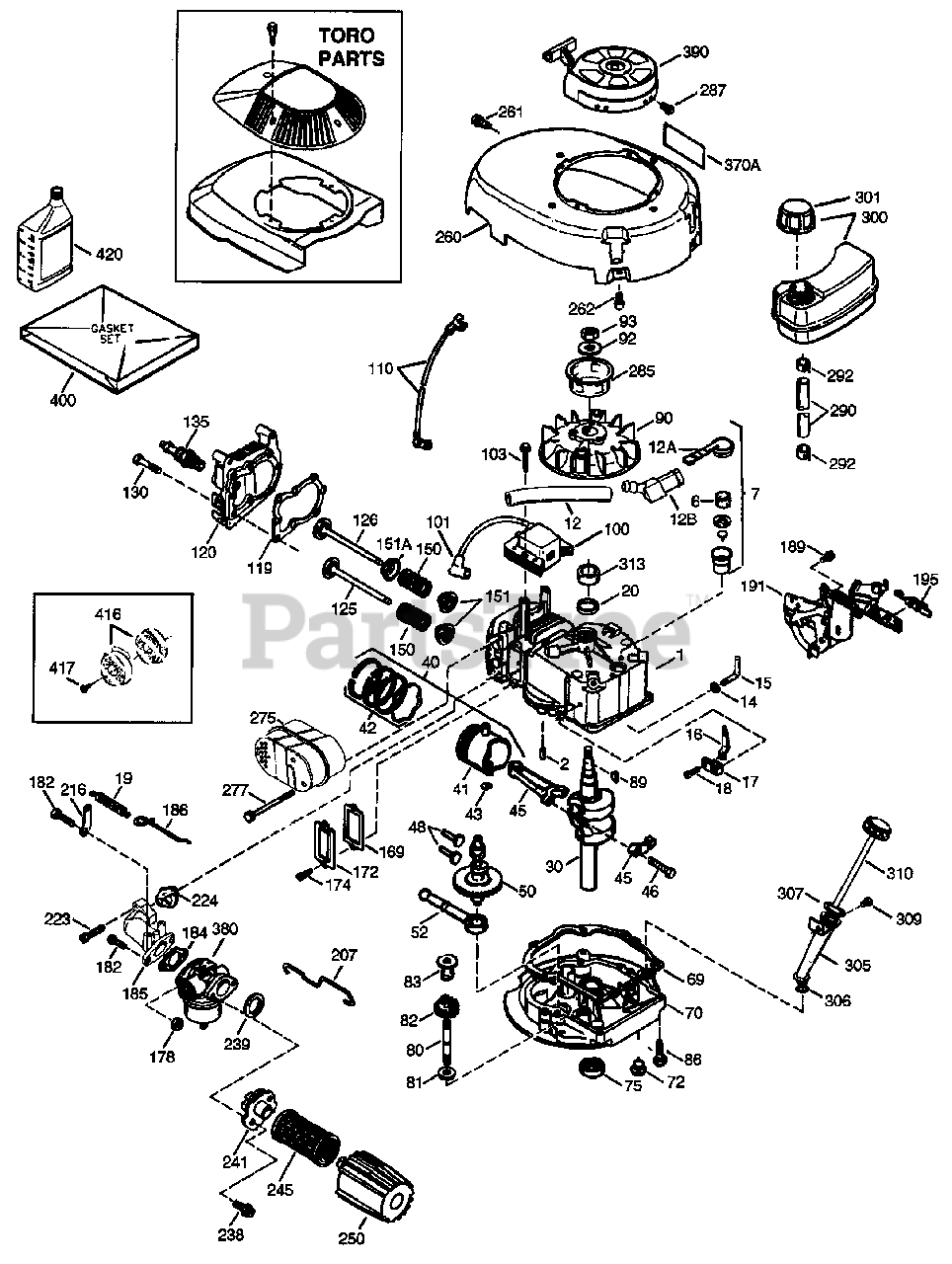

ENGINE LEV120-361003A Parts Diagram

  • Title

1

Lawn-Boy 36774

Cylinder (Incl. 2 & 20)

$

$

Currently unavailable

2

Lawn-Boy 26727

Dowel Pin

$

$

Currently unavailable

6

Lawn-Boy 33734

Breather Element

$

$

Currently unavailable

7

Lawn-Boy 36557

Breather Body Ass'y. (Incl. 6 & 12A)

$

$

Currently unavailable

12

Lawn-Boy 36775

Breather Tube

$

$

Currently unavailable

12A

Lawn-Boy 36558

Breather Cover & Tube (Incl. 12B)

$

$

Currently unavailable

12B

Lawn-Boy 36694

Breather Tube Elbow
(Superseded to 704856)

$

$

Not available

14

Lawn-Boy 28277

Washer

$

$

Currently unavailable

15

Lawn-Boy 30589

Governor Rod (Incl. 14)

$

$

Currently unavailable

16

Lawn-Boy 34839A

Governor Lever

$

$

Currently unavailable

17

Lawn-Boy 31335

Governor Lever Clamp

$

$

Currently unavailable

18

Lawn-Boy 651018

Screw

$

$

Currently unavailable

19

Lawn-Boy 36281

Extension Spring
(Superseded to 700777)

$

$

Not available

20

Lawn-Boy 32600

Oil Seal

$

$

Currently unavailable

30

Lawn-Boy 36597

Crankshaft

$

$

Currently unavailable

40

Lawn-Boy 40027

Piston, Pin & Ring Set (Std.)

$

$

Currently unavailable

40

Lawn-Boy 40028

Piston, Pin & Ring Set (.010" OS)

$

$

Currently unavailable

41

Lawn-Boy 40025

Piston & Pin Ass'y. (Std.) (Incl. 43)

$

$

Currently unavailable

41

Lawn-Boy 40026

Piston & Pin Ass'y. (.010" OS)(Incl. 43)

$

$

Currently unavailable

42

Lawn-Boy 40006

Ring Set (Std.)

$86.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 40007

Ring Set (.010" OS)

$

$

Not available

43

Lawn-Boy 20381

Piston Pin Retaining Ring

$

$

Currently unavailable

45

Lawn-Boy 36777

Connecting Rod Ass'y. (Incl. 46)

$

$

Currently unavailable

46

Lawn-Boy 32610A

Connecting Rod Bolt

$

$

Currently unavailable

48

Lawn-Boy 27241

Valve Lifter

$

$

Currently unavailable

50

Lawn-Boy 36778

Camshaft (MCR)

$

$

Currently unavailable

52

Lawn-Boy 29914

Oil Pump Ass'y.

$

$

Currently unavailable

69

Lawn-Boy 35261

Mounting Flange Gasket

$

$

Currently unavailable

70

Lawn-Boy 36995

Mounting Flange (Incl. 72 thru 83)

$

$

Currently unavailable

72

Lawn-Boy 36083

Oil Drain Plug

$

$

Currently unavailable

75

Lawn-Boy 27897

Oil Seal

$

$

Currently unavailable

80

Lawn-Boy 30574A

Governor Shaft

$

$

Currently unavailable

81

Lawn-Boy 30590A

Washer

$

$

Currently unavailable

82

Lawn-Boy 30591

Governor Gear Ass'y. (Incl. 81)

$

$

Currently unavailable

83

Lawn-Boy 30588A

Governor Spool

$

$

Currently unavailable

86

Lawn-Boy 650488

Screw

$

$

Currently unavailable

89

Lawn-Boy 611004

Flywheel Key

$

$

Not available

90

Lawn-Boy 611112

Flywheel
(Superseded to 611113)

$

$

Not available

92

Lawn-Boy 650815

Belleville Washer

$

$

Currently unavailable

93

Lawn-Boy 650816

Flywheel Nut

$

$

Currently unavailable

100

Lawn-Boy 34443B

Solid State Ignition

$

$

Currently unavailable

101

Lawn-Boy 610118

Spark Plug Cover

$

$

Currently unavailable

103

Lawn-Boy 651007

Screw, Torx T-15,

$

$

Currently unavailable

110

Lawn-Boy 37047

Ground Wire

$

$

Currently unavailable

119

Lawn-Boy 36787

Cylinder Head Gasket

$

$

Currently unavailable

120

Lawn-Boy 36825

Cylinder Head

$

$

Currently unavailable

125

Lawn-Boy 36779

Exhaust Valve (Std.) (Incl. 151)

$

$

Currently unavailable

125

Lawn-Boy 36780

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Currently unavailable

126

Lawn-Boy 36781

Intake Valve (Std.) (Incl. 151)

$

$

Currently unavailable

126

Lawn-Boy 36782

Intake Valve (1/32" OS) (Incl. 151)

$

$

Currently unavailable

130

Lawn-Boy 6021A

Screw

$

$

Currently unavailable

135

Lawn-Boy 35395

Resistor Spark Plug (RJ19LM)

$

$

Currently unavailable

150

Lawn-Boy 35991

Valve Spring

$

$

Currently unavailable

151

Lawn-Boy 31673

Valve Spring Cap
(Superseded to 742357)

$

$

Not available

151A

Lawn-Boy 40017

Intake Valve Seal

$

$

Not available

169

Lawn-Boy 36783

Valve Cover Gasket

$

$

Currently unavailable

172

Lawn-Boy 36784

Valve Cover

$

$

Not available

174

Lawn-Boy 30200

Screw

$

$

Currently unavailable

178

Lawn-Boy 29752

Nut & Lock Washer

$

$

Currently unavailable

182

Lawn-Boy 6201

Screw
(Superseded to 111-1250)

$

$

Not available

184

Lawn-Boy 26756

Carburetor To Intake Pipe Gasket

$

$

Currently unavailable

185

Lawn-Boy 36785

Intake Pipe

$

$

Not available

186

Lawn-Boy 32653

Governor Link

$

$

Currently unavailable

189

Lawn-Boy 650839

Screw

$

$

Currently unavailable

191

Lawn-Boy 36559

S.E. Brake Bracket (Incl. 195)
(Superseded to 704849)

$

$

Not available

195

Lawn-Boy 610973

Terminal

$

$

Currently unavailable

207

Lawn-Boy 34336

Throttle Link

$

$

Currently unavailable

216

Lawn-Boy 33086

R.P.M. Adjusting Lever

$

$

Currently unavailable

223

Lawn-Boy 650451

Screw

$

$

Currently unavailable

224

Lawn-Boy 36786

Intake Pipe Gasket

$

$

Currently unavailable

238

Lawn-Boy 650932

Screw

$

$

Currently unavailable

239

Lawn-Boy 34338

Air Cleaner Gasket

$

$

Currently unavailable

241

Lawn-Boy 35797

Air Cleaner Collar

$

$

Currently unavailable

245

Lawn-Boy 35066

Air Cleaner Filter

$

$

Currently unavailable

250

Lawn-Boy 35986

Air Cleaner Cover

$

$

Currently unavailable

260

Lawn-Boy 36999

Blower Housing

$

$

Currently unavailable

261

Lawn-Boy 30200

Screw

$

$

Currently unavailable

262

Lawn-Boy 650831

Screw

$

$

Currently unavailable

275

Lawn-Boy 36790

Muffler

$

$

Not available

277

Lawn-Boy 650988

Screw

$

$

Currently unavailable

285

Lawn-Boy 35000A

Starter Cup

$

$

Currently unavailable

287

Lawn-Boy 650926

Screw

$

$

Currently unavailable

290

Lawn-Boy 34357

Fuel Line

$

$

Currently unavailable

292

Lawn-Boy 26460

Fuel Line Clamp

$

$

Currently unavailable

300

Lawn-Boy 35586

Fuel Tank (Incl. 292 & 301)
(Superseded to 704776)

$

$

Not available

301

Lawn-Boy 36246

Fuel Cap

$

$

Currently unavailable

305

Lawn-Boy 35819A

Oil Fill Tube

$

$

Currently unavailable

306

Lawn-Boy 36996

"O"-Ring

$

$

Currently unavailable

307

Lawn-Boy 35499

"O"-Ring

$

$

Currently unavailable

309

Lawn-Boy 651014

Screw

$

$

Currently unavailable

310

Lawn-Boy 36259

Dipstick

$

$

Currently unavailable

313

Lawn-Boy 34080

Spacer

$

$

Currently unavailable

370A

Lawn-Boy 36261

Lubrication Decal

$

$

Currently unavailable

380

Lawn-Boy 640119

Carburetor (Incl. 184)

$

$

Currently unavailable

390

Lawn-Boy 590702

Rewind Starter (NOTE: This engine could have been built with 590739 starter. Refer to the design of the rope pulley strength ribs for part identification. Individual starter parts do not interchange. Refer to service bulletin 116.)

$

$

Currently unavailable

400

Lawn-Boy 36792B

Gasket Set (Incl. Items Marked PK in Notes) Incl. part #'s 26756 (1), 28833 (1) 34338 (1), 36783 (1), 36786 (1), 36787 (1), 36832 (1), 36996 (1), 37130 (1).

$

$

Currently unavailable

416

Lawn-Boy 36085

Spark Arrestor Kit (Incl. 417) (Optional)

$

$

Currently unavailable

417

Lawn-Boy 650760

Screw (Optional)

$

$

Currently unavailable

420

Lawn-Boy 730225

SAE 30 4-Cycle Engine Oil (Quart)

$

$

Currently unavailable
