10248 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) ENGINE & BLADE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

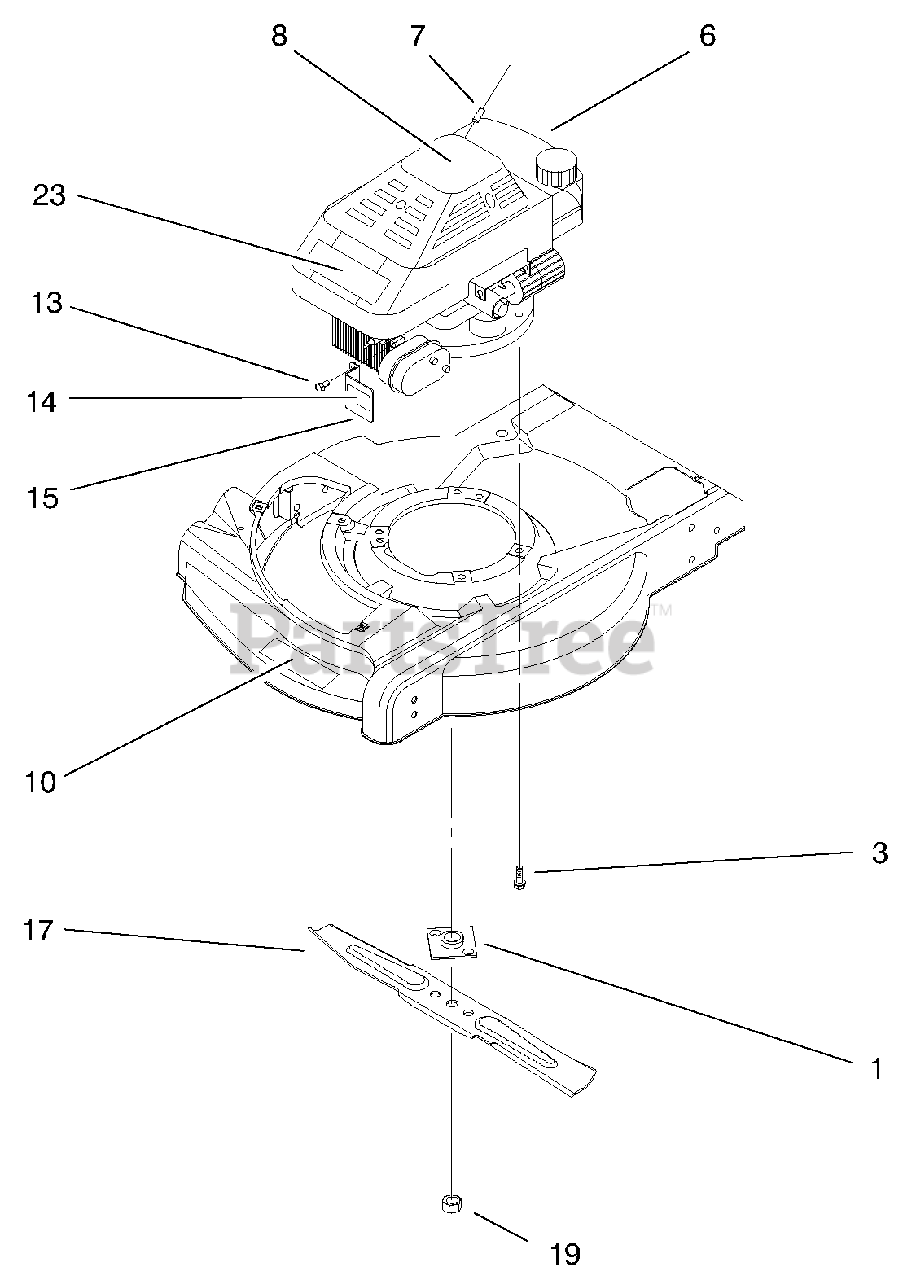

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 677525

ASM-Plate & Collar

$51.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 95-1726

Screw-Engine Mount

$2.99

$

In Stock, Qty 20+

0

6

ASM-Engine

$

$

Not available

7

Lawn-Boy 92-1701

Rope-Stop
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 95-7448

Decal-Shroud Top

$

$

Not available

10

Lawn-Boy 98-1566

Decal-Deck

$

$

Not available

13

$1.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 65-2690

Decal-Hot Surface

$5.49

$

In Stock, only 4 left!

0

15

Lawn-Boy 94-6066

Guard-Muffler
(Superseded to 94-6066-03)

$

$

Not available

17

Lawn-Boy 612543

Blade-21" Whirl
(Superseded to 612543-03)

$33.99

$

In Stock, Qty 18

0

19

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 11

0

23

Lawn-Boy 98-1593

Applique

$31.99

$

In Stock, only 1 left!

0
