10247 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) ENGINE & BLADE ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

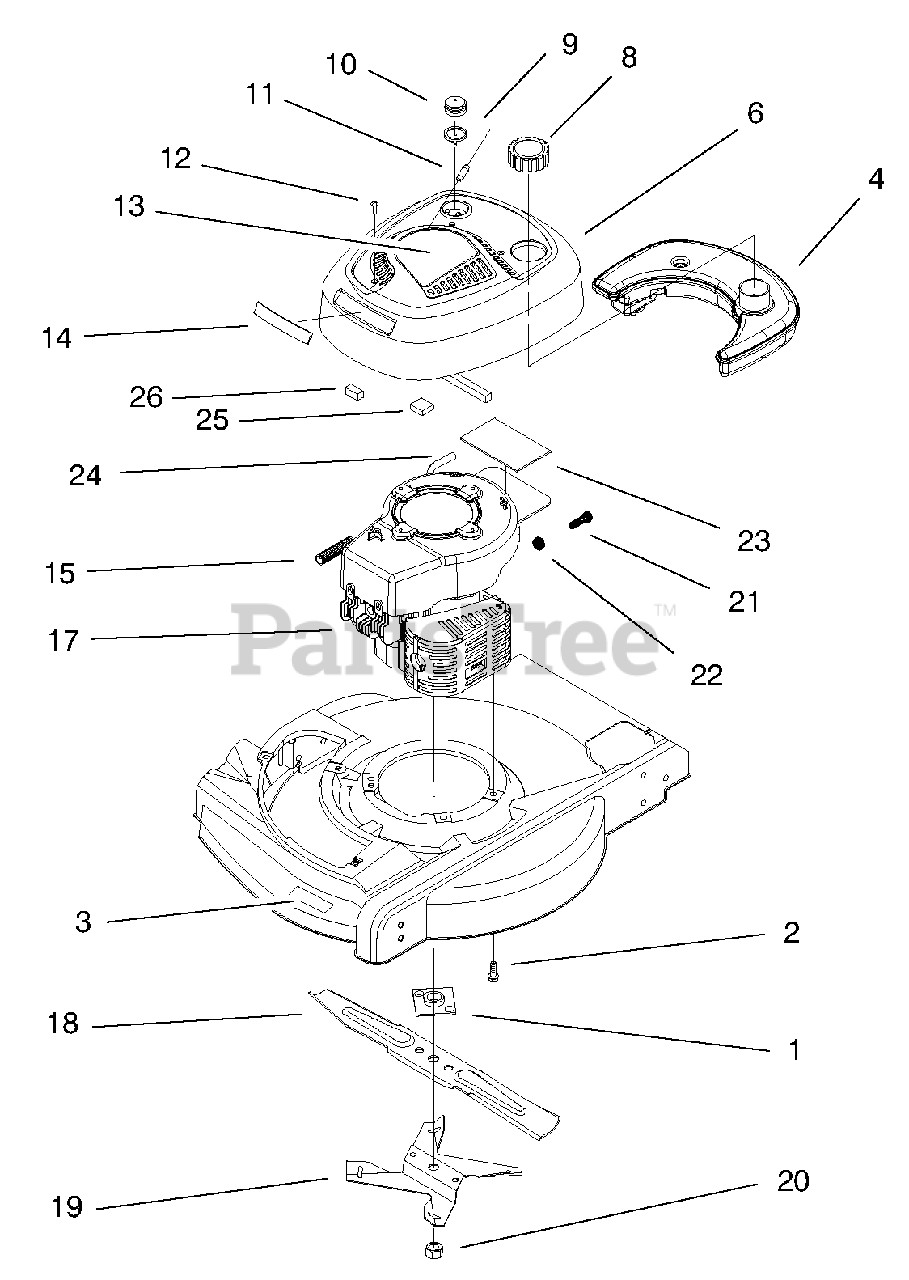

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 677525

Plate & Collar ASM

$23.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 611774

Screw-HH

$3.99

$

In Stock, only 2 left!

0

4

Lawn-Boy 95-1897

Tank

$57.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 98-7033

ASM-Shroud/Recoil Cover
(Superseded to 100-6398)

$

$

Not available

8

Lawn-Boy 98-8344

Assembly-Cap, Fuel/Oil

$23.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 92-1701

Rope-Stop
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 95-7621

Screw-Pan Sems

$1.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 95-7417

Decal-Recoil

$

$

Not available

14

Lawn-Boy 92-8615

Applique-Shroud

$24.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 93-4306

Spring-Compression

$5.49

$

In Stock, only 1 left!

0

17

Engine Ay HP E Silver

$

$

Not available

18

Lawn-Boy 612543

Blade-21" Whirl
(Superseded to 612543-03)

$29.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 99-6351-03

Fan-Mulching

$32.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 314576

Screw-Sems

$1.49

$

In Stock, Qty 6

0

22

Lawn-Boy 306531

Nut-Hex
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 98-1386

Pad-Foam

$

$

Not available

24

Lawn-Boy 612782

Line-Gas

$6.49

$

In Stock, Qty 9

0

25

Lawn-Boy 99-1521

Strip-Foam

$8.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 99-1522

Strip-Foam

$2.99

$

In Stock, Qty 9

0
