10247 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) HANDLE ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

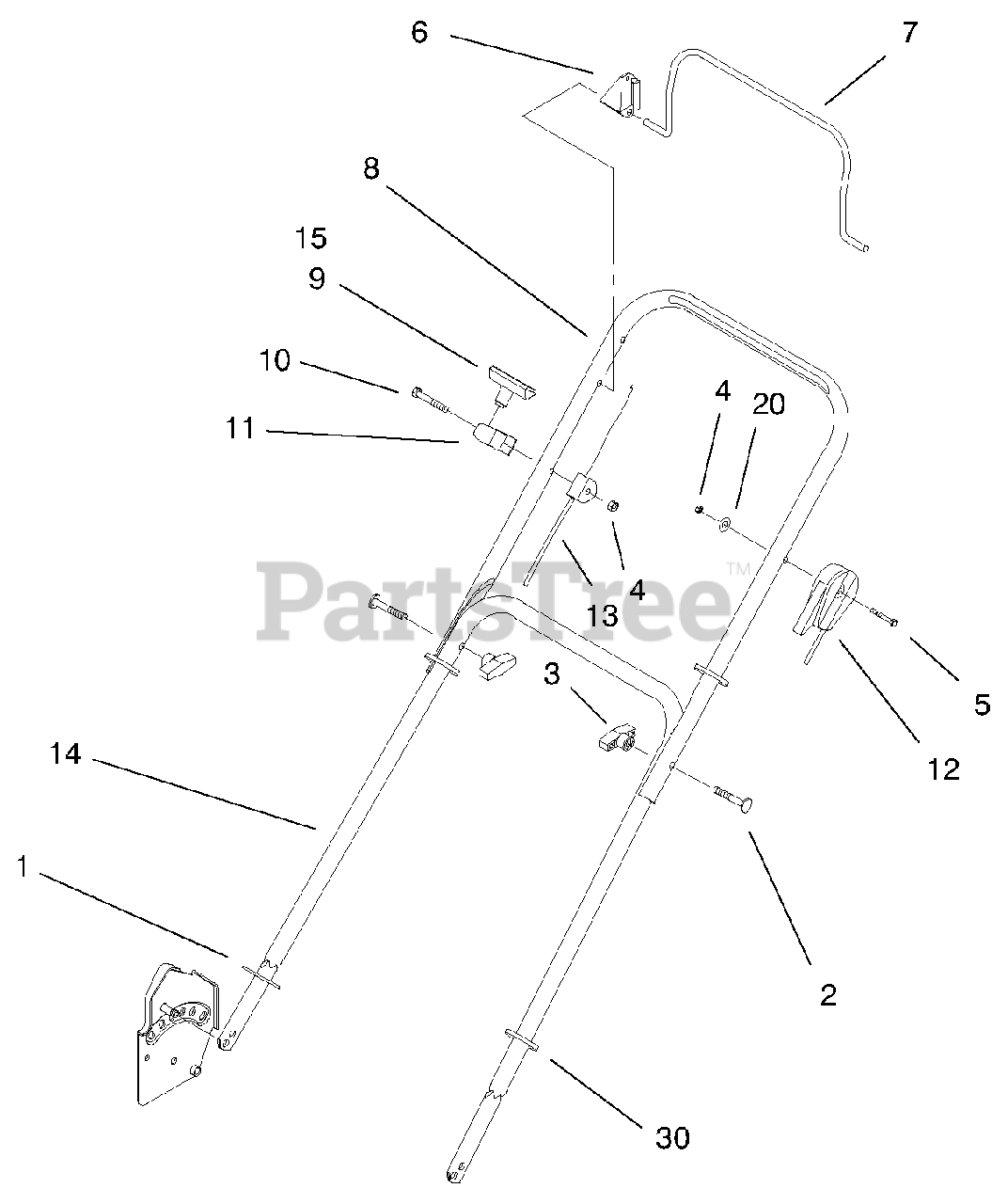

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 93-3653

Handle-Guard
(Superseded to 104-1013)

$

$

Not available

2

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 13

0

3

Lawn-Boy 98-7134

Knob

$2.99

$

In Stock, Qty 15

0

4

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 321-48

Screw-HH

$1.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

7

Lawn-Boy 93-4184

Bail-Flywheel Brake
(Superseded to 93-4184-03)

$41.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 95-1713

Handle Section-Upper
(Superseded to 95-1713-05)

$

$

Not available

9

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 321-50

Screw

$1.99

$

In Stock, Qty 8

0

11

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

12

Lawn-Boy 95-7415

Cable-Throttle 2 Cycle

$27.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 92-7738

Cable-Flywheel Brake

$33.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 614643

Handle Section-Lower
(Superseded to 614643-05)

$

$

Not available

15

Lawn-Boy 612824

Clip-Rope

$4.49

$

In Stock, Qty 10

0

20

Lawn-Boy 92-8632

Washer
(Superseded to 115-0995)

$6.99

$

In Stock, only 3 left!

0

30

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, Qty 6

0
