10243 - Lawn-Boy Green Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) COVER ASSEMBLY Parts Diagram

Green Series Walk-Behind Mower

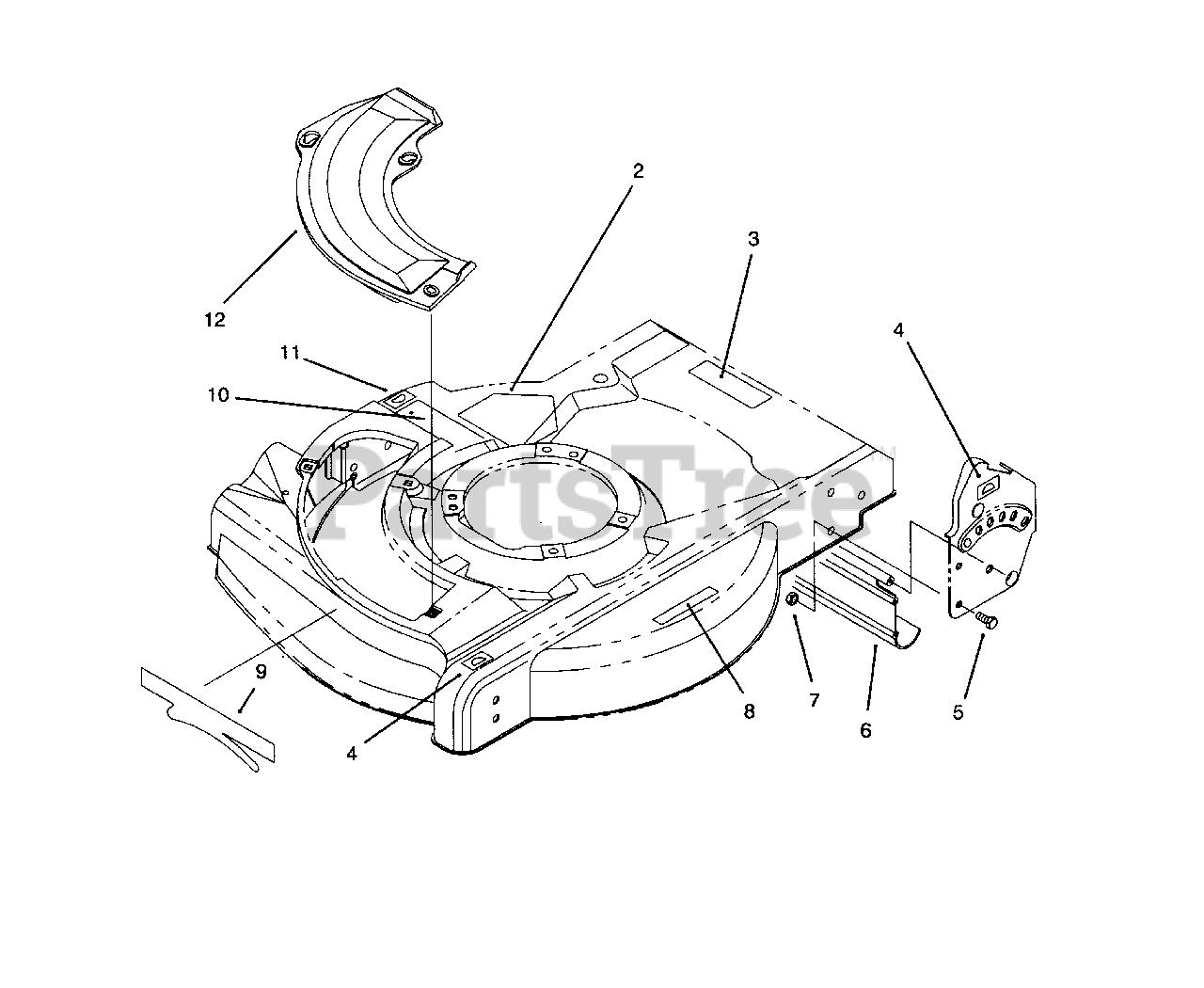

COVER ASSEMBLY Parts Diagram

  • Title
2

Lawn-Boy 39-5770

Decal-Danger

$8.99

$

In Stock, Qty 8

0

3

Lawn-Boy 92-4981

Decal-Warning

$

$

Not available

4

Lawn-Boy 92-2915

Decal-H.O.C.

$6.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 322-3

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 16

0

6

Lawn-Boy 92-8647

Shield-Trailing

$41.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 71-1280

Decal-Danger

$31.99

$

In Stock, Qty 13

0

9

Lawn-Boy 92-8006

Decal-Deck

$

$

Not available

10

Lawn-Boy 92-1097

Decal-Discharge

$

$

Not available

11

Lawn-Boy 92-2914

Decal-H.O.C.

$

$

Not available

12

Lawn-Boy 607560

Plate-Cover
(Superseded to 95-7052)

$36.99

$

In Stock, only 1 left!

0
