24" Snow Thrower, 9.5 Gross TP

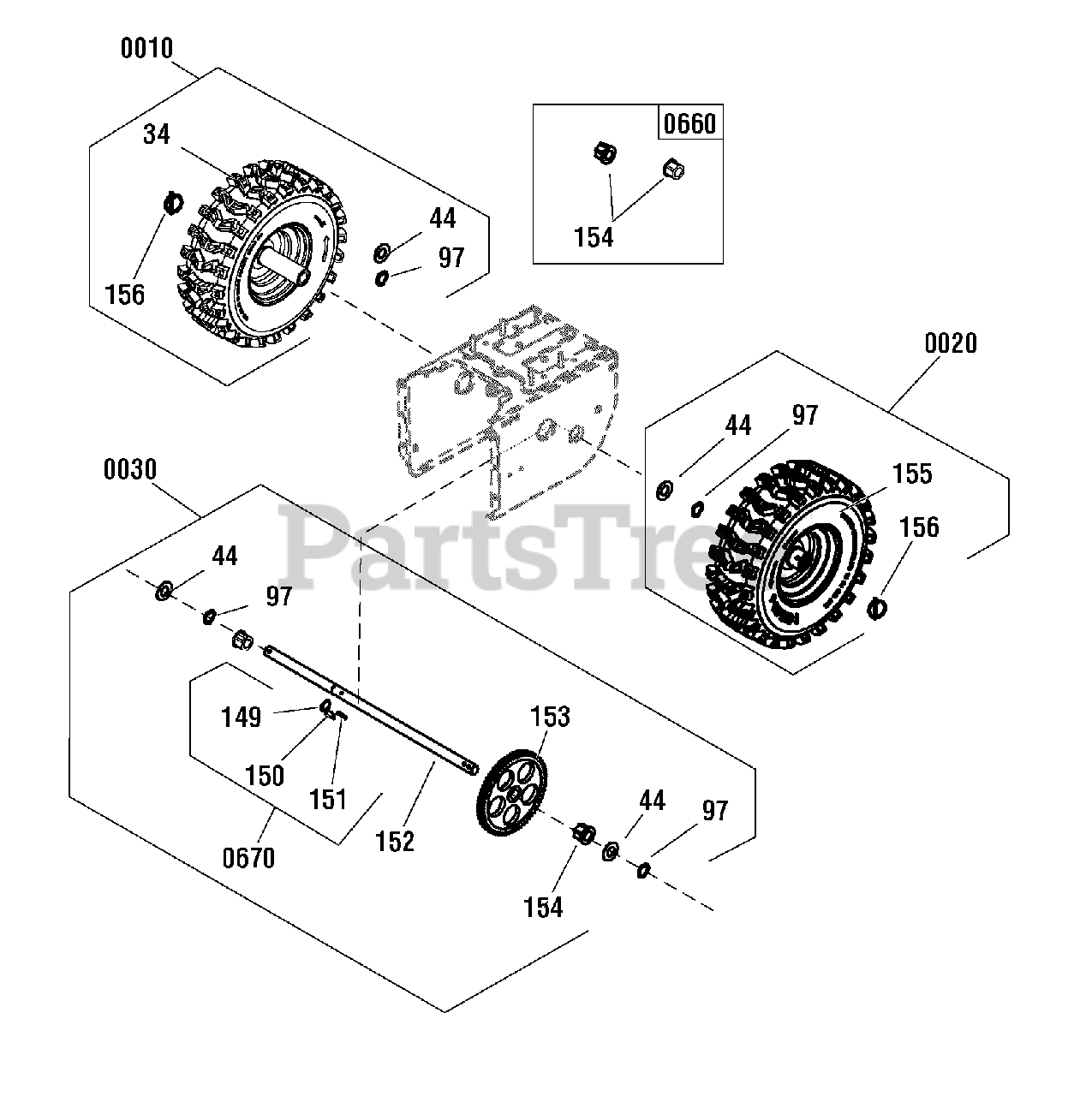

Wheels & Tires Group (6966Y_6967YSS) Parts Diagram

  • Title
0010

Murray 707534

KIT, Wheel & Tire, Right

Note: (Incl. Ref. Nos. 34, 44, 97 & 156)

$152.99

$

Usually ships in 2-12 days

0

34

-----

*TIRE, Assembly, Right

Note: (Included with Ref. No. 0010)

$

$

Not available

44

-----

*WASHER, Flat

Note: (Included with Ref. No. 0010)

$

$

Not available

97

-----

*GASKET, Corrugated

Note: (Included with Ref. No. 0010)

$

$

Not available

156

-----

*PIN, Klik

Note: (Included with Ref. No. 0010)

$

$

Not available

0020

Murray 707533

KIT, Wheel & Tire, Left

Note: (Incl. Ref. Nos. 44, 97, 155 & 156)

$152.99

$

Usually ships in 2-12 days

0

44

-----

*WASHER, Flat

Note: (Included with Ref. No. 0020)

$

$

Not available

97

-----

*GASKET, Corrugated

Note: (Included with Ref. No. 0020)

$

$

Not available

155

-----

*TIRE, Assembly, Left

Note: (Included with Ref. No. 0020)

$

$

Not available

156

Murray 709530

*PIN, Klik

Note: (Included with Ref. No. 0020)

$12.99

$

Usually ships in 2-12 days

0

0030

Murray 707531

KIT, Axle & Sprocket

Note: (Incl. Ref. Nos. 44, 97, 149, 150, 151, 152, 153 & 154)

$107.99

$

Usually ships in 2-12 days

0

44

-----

*WASHER, Flat

Note: (Included with Ref. No. 0030)

$

$

Not available

97

-----

*GASKET, Corrugated

Note: (Included with Ref. No. 0030)

$

$

Not available

149

-----

*C-CLIP, Shaft

Note: (Included with Ref. No. 0030 & 0670)

$

$

Not available

150

-----

*KEY, Woodruff

Note: (Included with Ref. No. 0030 & 0670)

$

$

Not available

151

-----

*PIN, Spring

Note: (Included with Ref. No. 0030 & 0670)

$

$

Not available

152

-----

*SHAFT, Drive Wheel

Note: (Included with Ref. No. 0030)

$

$

Not available

153

-----

*GEAR,Drive

Note: (Included with Ref. No. 0030)

$

$

Not available

154

-----

*SLEEVE, Axle

Note: (Included with Ref. No. 0030 & 0660)

$

$

Not available

0660

Murray 707532

KIT, Axle Sleeve

Note: (Incl. Ref. Nos. 154)

$15.99

$

Usually ships in 2-12 days

0

154

-----

*SLEEVE, Axle

Note: (Included with Ref. No. 0030 & 0660)

$

$

Not available

0670

Murray 707530

KIT, Bearing Hardware, Axle

Note: (Incl. Ref. Nos. 149, 150, & 151)

$9.49

$

Usually ships in 2-12 days

0

149

-----

*C-CLIP, Shaft

Note: (Included with Ref. No. 0030 & 0670)

$

$

Not available

150

-----

*KEY, Woodruff

Note: (Included with Ref. No. 0030 & 0670)

$

$

Not available

151

-----

*PIN, Spring

Note: (Included with Ref. No. 0030 & 0670)

$

$

Not available
