1024 MD (1696618-00) - Briggs & Stratton 24" Snow Thrower, 9.5 Gross TP (2016) Engine & Frame Group (1696615engine) Parts Diagram

24" Snow Thrower, 9.5 Gross TP

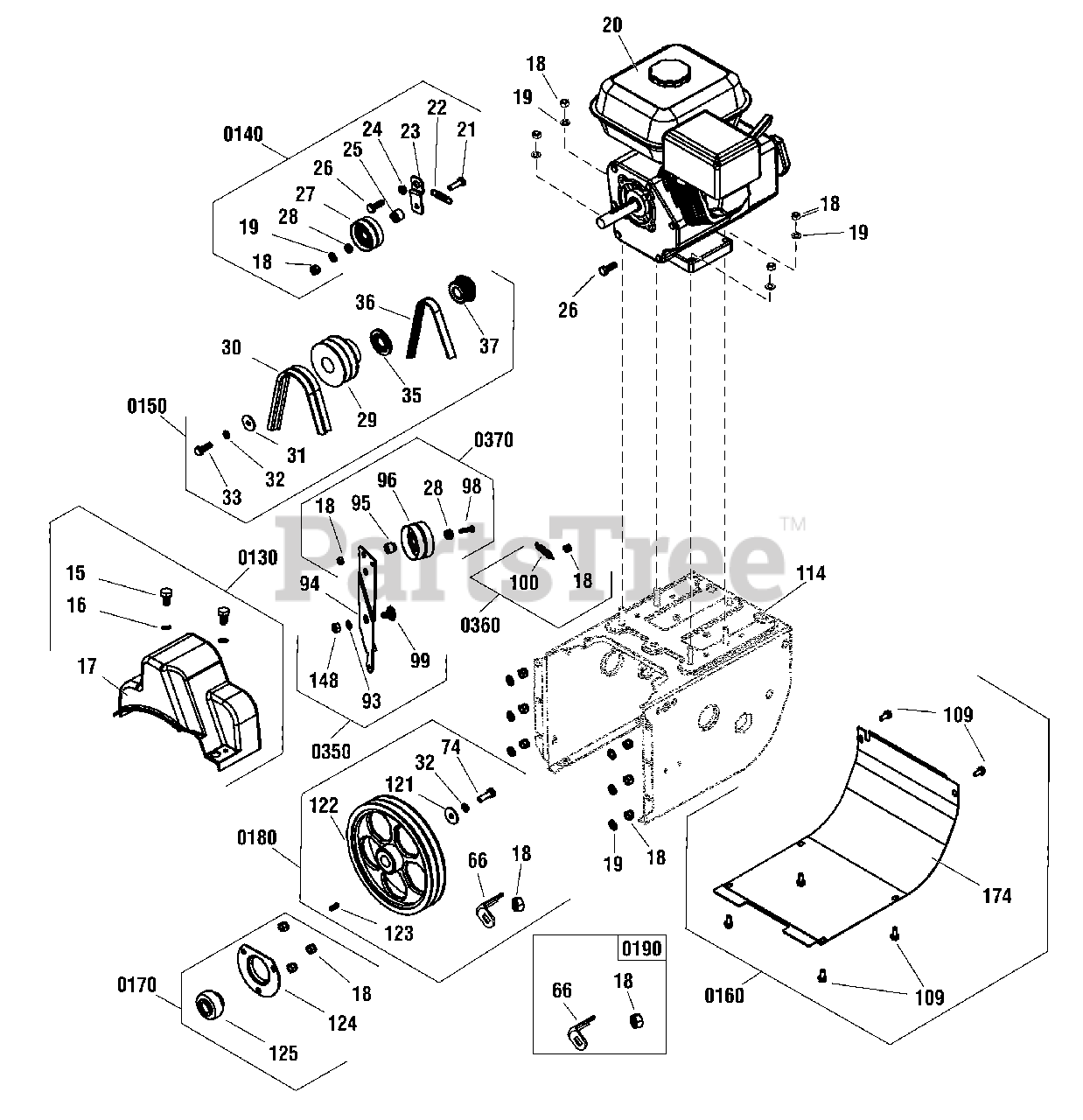

Engine & Frame Group (1696615engine) Parts Diagram

  • Title

20

Murray 13D137-0023-F1

**ENGINE, 9.5 Gross TP Briggs & Stratton

Note: (Engine Model: 13D137-0023-F1)

$

$

Currently unavailable

18

-----

*NUT, Hex Head Lock, Non-metal

$

$

Not available

19

-----

*WASHER, Flat

$

$

Not available

26

-----

*SCREW, Hex Head

$

$

Not available

0130

Murray 707567

KIT, Belt Cover
(Superseded to 84003838)

Note: (Incl. Ref. Nos. 15, 16 & 17)

$42.99

$

Usually ships in 2-12 days

0

15

-----

*SCREW, Hex Head

Note: (Included with Ref. No. 0130)

$

$

Not available

16

-----

*WASHER, Flat

Note: (Included with Ref. No. 0130)

$

$

Not available

17

-----

*COVER, Belt

Note: (Included with Ref. No. 0130)

$

$

Not available

0140

Murray 707568

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 18, 19, 21, 22, 23, 24, 25, 26, 27 & 28)

$55.99

$

In Stock, only 1 left!

0

18

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0140)

$

$

Not available

19

-----

*WASHER, Flat

Note: (Included with Ref. No. 0140)

$

$

Not available

21

-----

*SCREW, Hex Head

Note: (Included with Ref. No. 0140)

$

$

Not available

22

-----

*SPRING

Note: (Included with Ref. No. 0140)

$

$

Not available

23

-----

*PLATE, Tensioning, Small

Note: (Included with Ref. No. 0140)

$

$

Not available

24

-----

*PAD, Tensioning Plate, Small

Note: (Included with Ref. No. 0140)

$

$

Not available

25

-----

*PAD, Tensioning Wheel, Small

Note: (Included with Ref. No. 0140)

$

$

Not available

26

-----

*SCREW, Hex Head

Note: (Included with Ref. No. 0140)

$

$

Not available

27

-----

*WHEEL, Tensioning Assembly, Small

Note: (Included with Ref. No. 0140)

$

$

Not available

28

-----

*Washer

Note: (Included with Ref. No. 0140)

$

$

Not available

30

Murray 707584

BELT, Auger Drive

$41.99

$

In Stock, Qty 11

0

36

Murray 707585

BELT, Traction Drive

$22.99

$

In Stock, Qty 16

0

0150

Murray 770141

KIT, Engine Pulley

Note: (Incl. Ref. Nos. 29, 31, 32, 33, 35 & 37)

$64.99

$

In Stock, only 1 left!

0

29

-----

*PULLEY, Impeller Drive

Note: (Included with Ref. No. 0150)

$

$

Not available

31

-----

*WASHER, Flat

Note: (Included with Ref. No. 0150)

$

$

Not available

32

-----

*WASHER, Spring

Note: (Included with Ref. No. 0150)

$

$

Not available

33

-----

*SCREW, Hex Head

Note: (Included with Ref. No. 0150)

$

$

Not available

35

-----

*RING, Retainer, Synch-pulley

Note: (Included with Ref. No. 0150)

$

$

Not available

37

-----

*SYNCH-PULLEY

Note: (Included with Ref. No. 0150)

$

$

Not available

0160

Murray 709537

KIT, Bottom Cover

Note: (Incl. Ref. Nos. 109 & 174)

$77.99

$

Usually ships in 2-12 days

0

109

-----

*SCREW, Hex Head

Note: (Included with Ref. No. 0160)

$

$

Not available

174

-----

*COVER, Motor Box, Lower

Note: (Included with Ref. No. 0160)

$

$

Not available

0170

Murray 707548

KIT, Bearing Hardware, Auger Pulley

Note: (Incl. Ref. Nos. 18, 124 & 125)

$24.99

$

In Stock, only 1 left!

0

18

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0170)

$

$

Not available

124

-----

*COVER, Round Bottom

Note: (Included with Ref. No. 0170)

$

$

Not available

125

-----

*BEARING, Ball

Note: (Included with Ref. No. 0170)

$

$

Not available

114

-----

*BOX, Frame

$

$

Not available

0180

Murray 707743

KIT, Auger Pulley

Note: (Incl. Ref. Nos. 18, 32, 66, 74, 121, 122 & 123)

$45.99

$

Usually ships in 2-12 days

0

18

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0180)

$

$

Not available

32

-----

*WASHER, Spring

Note: (Included with Ref. No. 0180)

$

$

Not available

66

-----

*BAFFLE, Belt

Note: (Included with Ref. No. 0180)

$

$

Not available

74

-----

*SCREW, Hex Head

Note: (Included with Ref. No. 0180)

$

$

Not available

121

-----

*WASHER, Flat

Note: (Included with Ref. No. 0180)

$

$

Not available

122

-----

*PULLEY, Drive

Note: (Included with Ref. No. 0180)

$

$

Not available

123

-----

*KEY, Flat

Note: (Included with Ref. No. 0180)

$

$

Not available

0190

Murray 707547

KIT, Belt Guide, Auger

Note: (Incl. Ref. Nos. 18 & 66)

$11.99

$

Usually ships in 2-12 days

0

18

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0190)

$

$

Not available

66

-----

*BAFFLE, Belt

Note: (Included with Ref. No. 0190)

$

$

Not available

0350

Murray 707565

KIT, Hardware, Idler Bracket

Note: (Incl. Ref. Nos. 93, 99 & 148)

$8.99

$

Usually ships in 2-12 days

0

93

-----

*WASHER, Flat

Note: (Included with Ref. No. 0350)

$

$

Not available

99

-----

*SCREW, Hex Head

Note: (Included with Ref. No. 0350)

$

$

Not available

148

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0350)

$

$

Not available

94

Murray 709965

PLATE, Large Tensioning

$

$

Currently unavailable

0360

Murray 707654

KIT, Spring, Idler Pulley
(Superseded to 707564)

Note: (Incl. Ref. Nos.18 & 100)

$6.99

$

Usually ships in 2-12 days

0

18

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0360)

$

$

Not available

100

-----

*SPRING

Note: (Included with Ref. No. 0360)

$

$

Not available

0370

Murray 707566

KIT, Idler Pulley, Tension Plate

Note: (Incl. Ref. Nos. 18, 28, 95, 96 & 98)

$41.99

$

Usually ships in 2-12 days

0

18

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0370)

$

$

Not available

28

-----

*WASHER

Note: (Included with Ref. No. 0370)

$

$

Not available

95

-----

*SLEEVE, Washer

Note: (Included with Ref. No. 0370)

$

$

Not available

96

-----

*WHEEL, Large Tensioning

Note: (Included with Ref. No. 0370)

$

$

Not available

98

-----

*SCREW, Hex Head

Note: (Included with Ref. No. 0370)

$

$

Not available
