1024 MD (1696618-00) - Briggs & Stratton 24" Snow Thrower, 9.5 Gross TP (2016) Discharge Chute Group (6966Y_6967YEX) Parts Diagram

24" Snow Thrower, 9.5 Gross TP

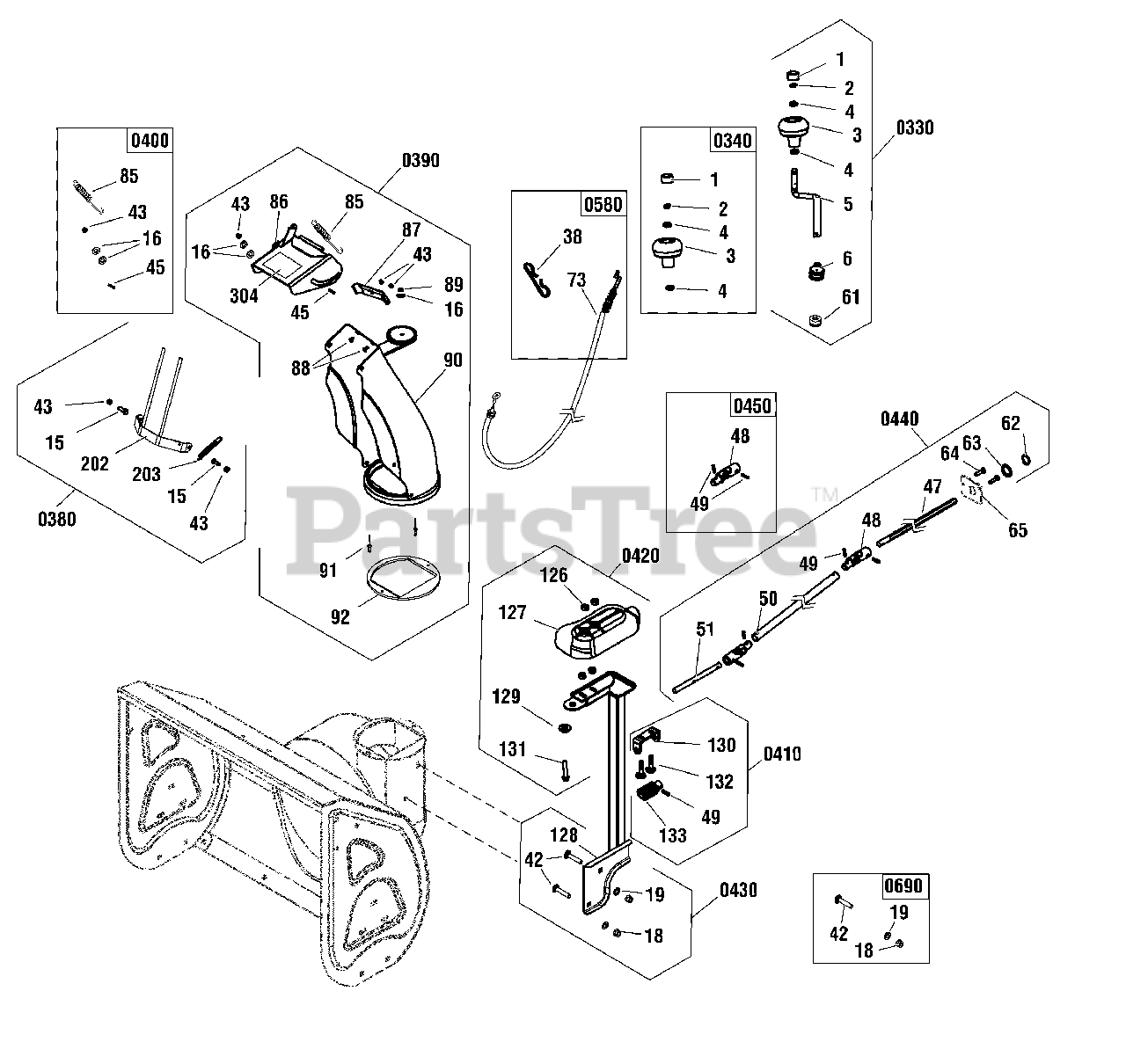

Discharge Chute Group (6966Y_6967YEX) Parts Diagram

  • Title

0330

Murray 707503

KIT, Chute Rotation

Note: (Incl. Ref. Nos. 1, 2, 3, 4, 5, 6 & 61)

$28.99

$

Usually ships in 2-12 days

0

1

-----

*COVER, Lever Knob, Chute Rotater

Note: (Included with Ref. No. 0330)

$

$

Not available

2

-----

*C-Clip, Shaft

Note: (Included with Ref. No. 0330)

$

$

Not available

3

-----

*KNOB, Lever, Chute Rotater

Note: (Included with Ref. No. 0330)

$

$

Not available

4

-----

*WASHER, Flat

Note: (Included with Ref. No. 0330)

$

$

Not available

5

-----

*LEVER, Chute Rotater

Note: (Included with Ref. No. 0330)

$

$

Not available

6

-----

*SLEEVE, Rubber

Note: (Included with Ref. No. 0330)

$

$

Not available

61

-----

*SLEEVE, Damping, Chute Rotater Lever

Note: (Included with Ref. No. 0330)

$

$

Not available

0340

Murray 707502

KIT, Chute Knob

Note: (Incl. Ref. Nos. 1, 2, 3 & 4)

$11.99

$

Usually ships in 2-12 days

0

1

-----

*COVER, Lever Knob, Chute Rotater

Note: (Included with Ref. No. 0340)

$

$

Not available

2

-----

*C-CLIP, Shaft

Note: (Included with Ref. No. 0340)

$

$

Not available

3

-----

*KNOB, Lever, Chute Rotater

Note: (Included with Ref. No. 0340)

$

$

Not available

4

-----

*WASHER, Flat

Note: (Included with Ref. No. 0340)

$

$

Not available

0380

Murray 707570

KIT, Chute Guard

Note: (Incl. Ref. Nos. 15, 43, 202 & 203)(CE/Export Only)

$21.99

$

Usually ships in 2-12 days

0

15

-----

*SCREW, Hex-Head

Note: (Included with Ref. No. 0380)(CE/Export Only)

$

$

Not available

43

-----

*Lock Nut, Hex Head, non-metal

Note: (Included with Ref. No. 0380)(CE/Export Only)

$

$

Not available

202

-----

*Chute Guard

Note: (Included with Ref. No. 0380)(CE/Export Only)

$

$

Not available

203

-----

*Spring

Note: (Included with Ref. No. 0380)(CE/Export ONly)

$

$

Not available

0390

Murray 707747

KIT, Chute Assembly

Note: (Domestic Only) (Incl. Ref. Nos. 4, 16, 43, 45, 85, 86, 87, 88, 89, 90, 91 & 92)

$158.99

$

Usually ships in 2-12 days

0

0390

Murray 707748

KIT, Chute Assembly

Note: (CE/Export Only) (Incl. Ref. Nos. 4, 16, 43, 45, 85, 86, 87, 88, 89, 90, 91 & 92)

$158.99

$

Usually ships in 2-12 days

0

16

-----

*WASHER, Flat

Note: (Included with Ref. No. 0390)

$

$

Not available

43

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0390)

$

$

Not available

45

-----

*SCREW, Non-standard

Note: (Included with Ref. No. 0390)

$

$

Not available

85

-----

*SPRING, Tensioned, Chute Deflector

Note: (Included with Ref. No. 0390)

$

$

Not available

86

-----

*DEFLECTOR, Chute

Note: (Included with Ref. No. 0390)

$

$

Not available

87

-----

*PAD, Chute Rubber

Note: (Included with Ref. No. 0390)

$

$

Not available

88

-----

*SCREW, Hex Head

Note: (Included with Ref. No. 0390)

$

$

Not available

89

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0390)

$

$

Not available

90

-----

*CHUTE

Note: (Included with Ref. No. 0390)

$

$

Not available

91

-----

*RIVET, Core

Note: (Included with Ref. No. 0390)

$

$

Not available

92

-----

*RING, Chute

Note: (Included with Ref. No. 0390)

$

$

Not available

304

Murray 1737865YP

*DECAL, Danger Chute

Note: (Included with Ref. No. 0390)

$11.99

$

Usually ships in 2-12 days

0

304

Murray 1727207SM

*DECAL, Danger Chute, Export

Note: (Included with Ref. No. 0390)

$18.99

$

Usually ships in 2-12 days

0

0400

Murray 707563

KIT, Spring, Chute

Note: (Incl. Ref. Nos. 16, 43, 45 & 85)

$10.99

$

Usually ships in 2-12 days

0

16

-----

*WASHER, Flat

Note: (Included with Ref. No. 0400)

$

$

Not available

43

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0400)

$

$

Not available

45

-----

*SCREW, Non-standard

Note: (Included with Ref. No. 0400)

$

$

Not available

85

-----

*SPRING, Tensioned, Chute Deflector

Note: (Included with Ref. No. 0400)

$

$

Not available

0410

Murray 707543

KIT, Worm Gear Hardware, Chute

Note: (Incl. Ref. Nos. 49, 126, 130, 132 & 133)

$34.99

$

Usually ships in 2-12 days

0

49

-----

*SPRING, Splitpin

Note: (Included with Ref. No. 0410)

$

$

Not available

130

-----

*BRACKET, Worm

Note: (Included with Ref. No. 0410)

$

$

Not available

126

-----

*NUT

Note: (Included with Ref. No. 0410)

$

$

Not available

132

-----

*BOLT

Note: (Included with Ref. No. 0410)

$

$

Not available

133

-----

*WORM, Turning

Note: (Included with Ref. No. 0410)

$

$

Not available

0420

Murray 707544

KIT, Cover, Chute Rotation

Note: (Incl. Ref. Nos. 126, 127, 129 & 131)

$34.99

$

Usually ships in 2-12 days

0

126

-----

*NUT

Note: (Included with Ref. No. 0420)

$

$

Not available

127

-----

*HEAD, Chute Rotation

Note: (Included with Ref. No. 0420)

$

$

Not available

129

-----

*SELF-LOCK, Assembly, Chute Deflector

Note: (Included with Ref. No. 0420)

$

$

Not available

131

-----

*SCREW, Hex Head

Note: (Included with Ref. No. 0420)

$

$

Not available

0430

Murray 707545

KIT, Bracket, Chute Rotation

Note: (Incl. Ref. Nos. 18, 19, 42 & 128)

$70.99

$

Usually ships in 2-12 days

0

18

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0430)

$

$

Not available

19

-----

*WASHER, Flat

Note: (Included with Ref. No. 0430)

$

$

Not available

42

-----

*BOLT, Square Neck, Cup Head

Note: (Included with Ref. No. 0430)

$

$

Not available

128

-----

*BRACKET, Chute Rotatation

Note: (Included with Ref. No. 0430)

$

$

Not available

0440

Murray 707525

KIT, Chute Rotaion Rod

Note: (Incl. Ref. Nos. 47, 48, 49, 50, 51 62, 63 & 64)

$122.99

$

Usually ships in 2-12 days

0

47

-----

*ROD, Hex, Chute Rotation

Note: (Included with Ref. No. 0440)

$

$

Not available

48

-----

*JOINT, Cardan

Note: (Included with Ref. No. 0440)

$

$

Not available

49

-----

*SPRING, Splitpin

Note: (Included with Ref. No. 0440)

$

$

Not available

50

-----

*ROD, Rotation, Chute

Note: (Included with Ref. No. 0440)

$

$

Not available

51

-----

*ROD, Rotation, Chute

Note: (Included with Ref. No. 0440)

$

$

Not available

62

-----

*C-CLIP, Shaft

Note: (Included with Ref. No. 0440)

$

$

Not available

63

-----

*WASHER, Flat

Note: (Included with Ref. No. 0440)

$

$

Not available

64

-----

*SCREW, Hex Head

Note: (Included with Ref. No. 0440)

$

$

Not available

65

-----

*SEAT, Bevel Gear

$

$

Not available

0450

Murray 707524

KIT, Cardan Joint

Note: (Incl. Ref. Nos. 48 & 49)

$67.99

$

Usually ships in 2-12 days

0

48

-----

*JOINT, Cardan

Note: (Included with Ref. No. 0450)

$

$

Not available

49

-----

*SPRING, Splitpin

Note: (Included with Ref. No. 0450)

$

$

Not available

0580

Murray 707516

KIT, Cable-Chute Deflector

Note: (Incl. Ref. Nos. 38 & 73)

$42.99

$

In Stock, only 2 left!

0

38

-----

*HOOK, Cable

Note: (Included with Ref. No. 0580)

$

$

Not available

73

-----

*CABLE, Chute Deflector

Note: (Included with Ref. No. 0580)

$

$

Not available

0690

Murray 709757

KIT, Hardware, Chute Rotation

Note: (Incl. Ref. Nos. 18, 19 & 42)

$10.99

$

Usually ships in 2-12 days

0

18

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0690)

$

$

Not available

19

-----

*WASHER, Flat

Note: (Included with Ref. No. 0690)

$

$

Not available

42

-----

*BOLT, Square Neck, Cup Head

Note: (Included with Ref. No. 0690)

$

$

Not available
