1024 MD (1696618-00) - Briggs & Stratton 24" Snow Thrower, 9.5 Gross TP (2016) Auger Drive Group (1696614augerdrive) Parts Diagram

24" Snow Thrower, 9.5 Gross TP

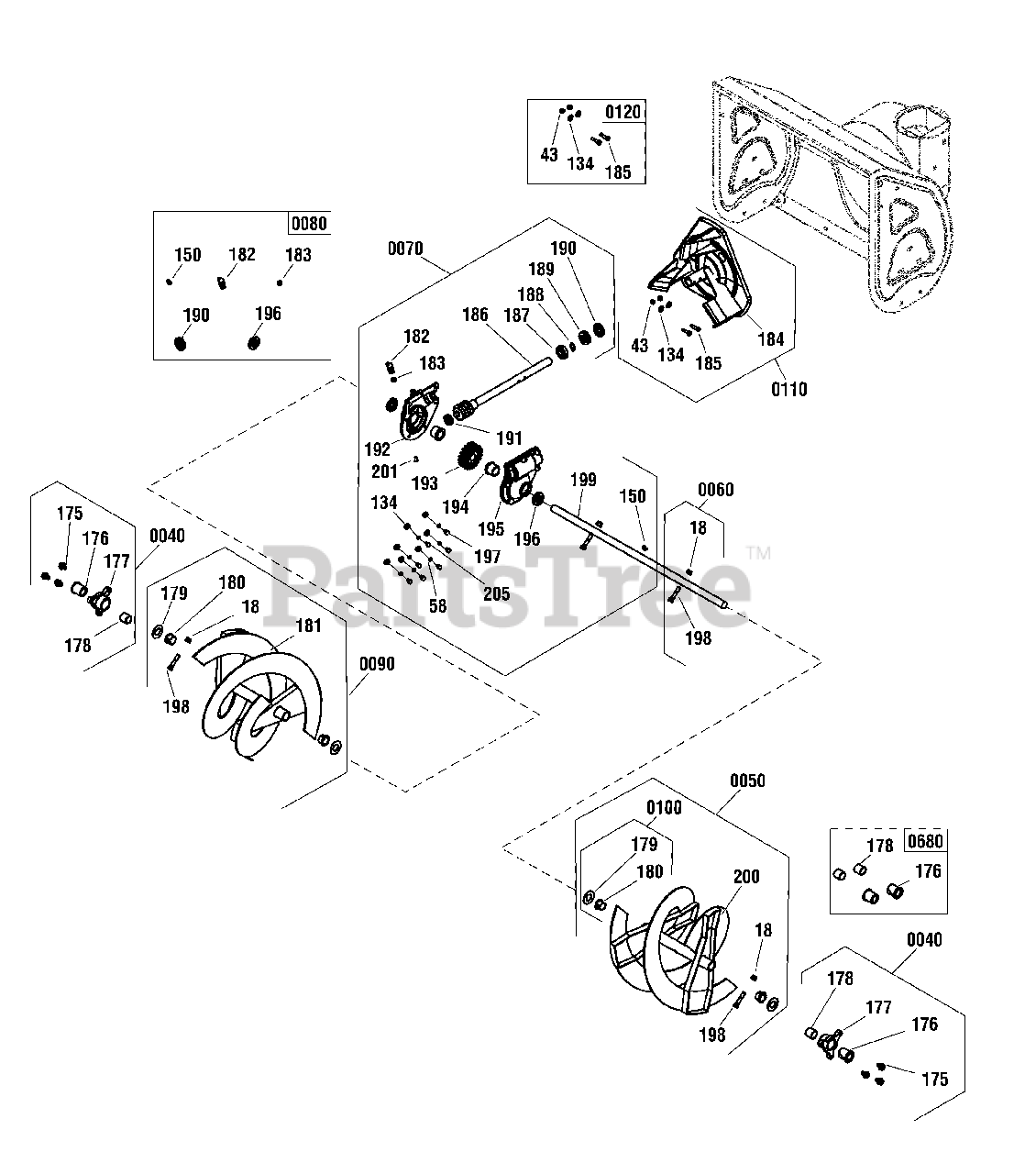

Auger Drive Group (1696614augerdrive) Parts Diagram

  • Title

0040

Murray 707553

KIT, Mounting Plate, Auger Housing

Note: (Incl. Ref. Nos. 175, 176, 177 & 178)

$48.99

$

Usually ships in 2-12 days

0

175

-----

*SCREW, Hex Head

Note: (Included with Ref. No. 0040)

$

$

Not available

176

-----

*BEARING, Nylon

Note: (Included with Ref. No. 0040)

$

$

Not available

177

-----

*BASE, Auger

Note: (Included with Ref. No. 0040)

$

$

Not available

178

-----

*PAD, Auger

Note: (Included with Ref. No. 0040)

$

$

Not available

0050

Murray 707744

KIT, Auger Assembly, Left

Note: (Incl. Ref. Nos. 18, 179, 180, 198 & 200)

$102.99

$

Usually ships in 2-12 days

0

18

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0050)

$

$

Not available

179

-----

*WASHER, Flat

Note: (Included with Ref. No. 0050)

$

$

Not available

180

-----

*SLEEVE, Output Shaft 24-2

Note: (Included with Ref. No. 0050)

$

$

Not available

198

-----

*BOLT, Auger Shear

Note: (Included with Ref. No. 0050)

$

$

Not available

200

-----

*AUGER, Left

Note: (Included with Ref. No. 0050)

$

$

Not available

0060

Murray 707555

Kit, Shear Pin, Auger

Note: (Incl. Ref. Nos. 18 & 198)

$12.99

$

In Stock, Qty 16

0

18

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0060)

$

$

Not available

198

-----

*BOLT, Auger Shear

Note: (Included with Ref. No. 0060)

$

$

Not available

0070

Murray 707745

KIT, Gear Box, Auger
(Superseded to 84003700)

Note: (Incl. Ref. Nos. 18, 75, 58, 134, 150, 182, 183, 185, 186, 187, 188, 189, 190, 191, 192, 193, 194, 195, 196, 197, 199, 201 & 205)

$271.99

$

Usually ships in 2-12 days

0

18

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0070)

$

$

Not available

75

-----

*WASHER, Flat

Note: (Included with Ref. No. 0070)

$

$

Not available

58

-----

*WASHER, Spring

Note: (Included with Ref. No. 0070)

$

$

Not available

134

-----

*WASHER, Flat

Note: (Included with Ref. No. 0070)

$

$

Not available

150

-----

*KEY, Woodruff

Note: (Included with Ref. No. 0070)

$

$

Not available

182

-----

*NIPPLE, Oil

Note: (Included with Ref. No. 0070)

$

$

Not available

183

-----

*GASKET, Corrugated

Note: (Included with Ref. No. 0070)

$

$

Not available

185

-----

*SCREW, Fixed, Impeller

Note: (Included with Ref. No. 0070)

$

$

Not available

186

-----

*SHAFT, Worm

Note: (Included with Ref. No. 0070)

$

$

Not available

187

-----

*BEARING, Deep Groove Ball

Note: (Included with Ref. No. 0070)

$

$

Not available

188

-----

*SPACER

Note: (Included with Ref. No. 0070)

$

$

Not available

189

-----

*BEARING, Single Thrust Ball

Note: (Included with Ref. No. 0070)

$

$

Not available

190

-----

*SEAL, Oil

Note: (Included with Ref. No. 0070)

$

$

Not available

191

-----

*BEARING, Deep Groove Ball

Note: (Included with Ref. No. 0070)

$

$

Not available

192

-----

*BOX, Gear, Right

Note: (Included with Ref. No. 0070)

$

$

Not available

193

-----

*GEAR, Worm

Note: (Included with Ref. No. 0070)

$

$

Not available

194

-----

*SLEEVE, Output Shaft

Note: (Included with Ref. No. 0070)

$

$

Not available

195

-----

*BOX, Gear, Left

Note: (Included with Ref. No. 0070)

$

$

Not available

196

-----

*SEAL, Oil

Note: (Included with Ref. No. 0070)

$

$

Not available

197

-----

*SCREW, Hex Head

Note: (Included with Ref. No. 0070)

$

$

Not available

199

-----

*SHAFT, Auger

Note: (Included with Ref. No. 0070)

$

$

Not available

201

-----

*BOLT, Phillips Head

Note: (Included with Ref. No. 0070)

$

$

Not available

205

-----

*SCREW, Hex Head

Note: (Included with Ref. No. 0070)

$

$

Not available

0080

Murray 707558

KIT, Seal, Gear Box
(Superseded to 84001647)

Note: (Incl. Ref. Nos. 150, 182, 183, 190 & 196)

$7.49

$

Usually ships in 2-12 days

0

182

-----

*NIPPLE, Oil

Note: (Included with Ref. No. 0080)

$

$

Not available

183

-----

*GASKET, Corrugated

Note: (Included with Ref. No. 0080)

$

$

Not available

196

-----

*SEAL, Oil

Note: (Included with Ref. No. 0080)

$

$

Not available

0090

Murray 707763

KIT, Auger Assembly, Right

Note: (Incl. Ref. Nos. 18, 179, 180, 181 & 198)

$109.99

$

Usually ships in 2-12 days

0

18

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0090)

$

$

Not available

179

-----

*WASHER, Flat

Note: (Included with Ref. No. 0090)

$

$

Not available

180

-----

*SLEEVE, Output Shaft 24-2

Note: (Included with Ref. No. 0090)

$

$

Not available

181

-----

*AUGER, Right

Note: (Included with Ref. No. 0090)

$

$

Not available

198

-----

*BOLT, Auger Shear

Note: (Included with Ref. No. 0090)

$

$

Not available

0100

Murray 707554

KIT, Auger Shaft Hardware

Note: (Incl. Ref. Nos. 179 & 180)

$20.99

$

Usually ships in 2-12 days

0

179

-----

*WASHER, Flat

Note: (Included with Ref. No. 0100)

$

$

Not available

180

-----

*SLEEVE, Output Shaft 24-2

Note: (Included with Ref. No. 0100)

$

$

Not available

0110

Murray 707560

KIT, Impeller Assembly

Note: (Incl. Ref. Nos. 43, 134, 184, & 185)

$93.99

$

In Stock, only 4 left!

0

43

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0110)

$

$

Not available

134

-----

*WASHER, Flat

Note: (Included with Ref. No. 0110)

$

$

Not available

184

-----

*BLADE, Impeller

Note: (Included with Ref. No. 0110)

$

$

Not available

185

-----

*SCREW, Fixed, Impeller

Note: (Included with Ref. No. 0110)

$

$

Not available

0120

Murray 707561

KIT,Shear Pin, Impeller

Note: (Incl. Ref. Nos. 18, 134 & 185)

$15.99

$

In Stock, only 2 left!

0

43

-----

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0120)

$

$

Not available

134

-----

*WASHER, Flat

Note: (Included with Ref. No. 0120)

$

$

Not available

185

-----

*SCREW, Fixed,Impeller

Note: (Included with Ref. No. 0120)

$

$

Not available

0680

Murray 707552

KIT, Bearing, Mounting Plate

Note: (Incl. Ref. Nos. 176 & 178)

$30.99

$

Usually ships in 2-12 days

0

176

-----

*BEARING, Nylong

Note: (Included with Ref. No. 0680)

$

$

Not available

178

-----

*PAD, Auger

Note: (Included with Ref. No. 0680)

$

$

Not available
