1024 LD (1696610-01) - Briggs & Stratton 24" Snow Thrower, 9.5 Gross TP (2017) Auger Drive Group Parts Diagram

24" Snow Thrower, 9.5 Gross TP

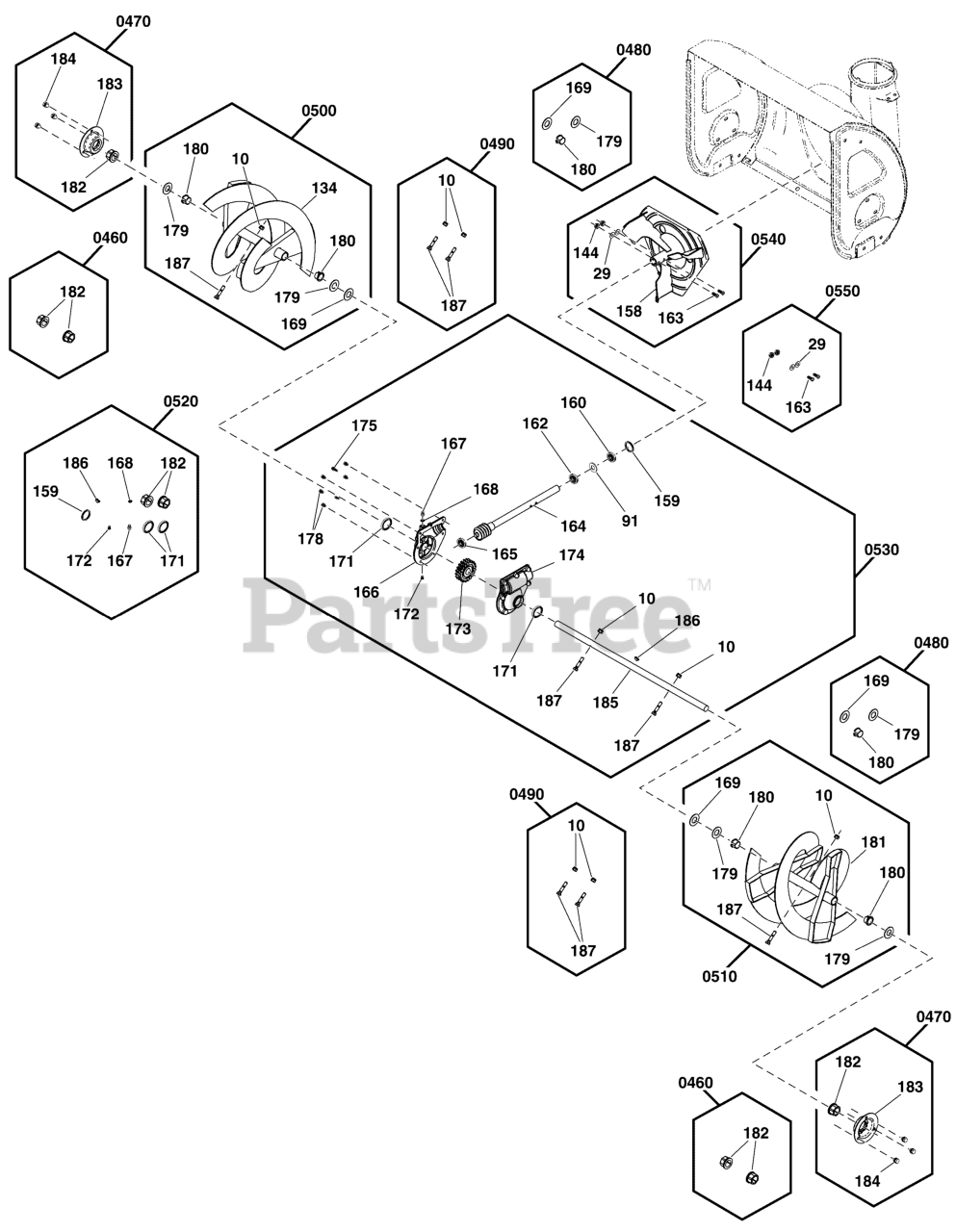

Auger Drive Group Parts Diagram

  • Title

0460

Murray 707755

KIT, BUSHING, AUGER

Note: (Incl. Ref. No. 182)

$11.99

$

In Stock, only 1 left!

0

182

BEARING, Auger Shaft

$

$

Not available

0470

Murray 707824

KIT, MOUNTING PLATE, AUGER HOUSING

Note: (Incl. Ref. Nos. 182, 183, 184)

$32.99

$

In Stock, only 1 left!

0

182

BEARING, Auger Shaft

$

$

Not available

183

CAP, Bearing

$

$

Not available

184

SCREW, Hex Head, M8 X 10

$

$

Not available

0480

Murray 707756

KIT, AUGER SHAFT HARDWARE

Note: (Incl. Ref. Nos. 169, 179, 180)

$26.99

$

Usually ships in 2-12 days

0

169

WASHER, Flat

$

$

Not available

179

WASHER, Flat

$

$

Not available

180

BEARING, Auger Shaft

$

$

Not available

0490

Murray 707555

KIT, SHEAR PIN, AUGER

Note: (Incl. Ref. Nos. 10, 187)

$12.99

$

In Stock, Qty 18

0

10

NUT, Lock, M8

$

$

Not available

187

BOLT, Hex, M8 X 38

$

$

Not available

0500

Murray 707825

KIT, AUGER ASSEMBLY, RIGHT

Note: (Incl. Ref. Nos. 10, 134, 169, 179, 180, 187)

$108.99

$

Usually ships in 2-12 days

0

10

NUT, Lock, M8

$

$

Not available

134

AUGER, 24", Right, Black

$

$

Not available

169

WASHER, Flat

$

$

Not available

179

WASHER, Flat

$

$

Not available

180

BEARING, Auger Shaft

$

$

Not available

187

BOLT, Hex, M8 X 38

$

$

Not available

0510

Murray 707826

KIT, AUGER ASSEMBLY, LEFT

Note: (Incl. Ref. Nos. 10, 169, 179, 180, 181, 187)

$101.99

$

Usually ships in 2-12 days

0

10

NUT, Lock, M8

$

$

Not available

169

WASHER, Flat

$

$

Not available

179

WASHER, Flat

$

$

Not available

180

BEARING, Auger Shaft

$

$

Not available

181

AUGER, 24", Left, Black

$

$

Not available

187

BOLT, Hex, M8 X 38

$

$

Not available

0520

Murray 84001632

KIT, Seal, Gearbox

Note: (Incl. Ref. Nos. 159, 167, 168, 171, 172, 182, 186)

$22.99

$

In Stock, only 1 left!

0

159

SEAL, Oil

$

$

Not available

167

ZERK, Grease Fitting

$

$

Not available

168

WASHER, Wave

$

$

Not available

171

SEAL, Oil

$

$

Not available

172

BOLT, Phillips Head, M5 X 10

$

$

Not available

182

BEARING, Auger Shaft

$

$

Not available

186

KEY, WOODRUFF

$

$

Not available

0530

Murray 84001626

KIT, Gear Box, Auger

Note: (Incl. Ref. Nos. 10, 91, 159, 160, 162, 164, 165, 166, 167, 168, 171, 172, 173, 174, 175, 178, 185, 186, 187)

$341.99

$

Usually ships in 2-12 days

0

10

NUT, Lock, M8

$

$

Not available

91

WASHER, Flat

$

$

Not available

159

SEAL, Oil

$

$

Not available

160

BEARING

$

$

Not available

162

BEARING

$

$

Not available

164

SHAFT, Impeller Wormgear

$

$

Not available

165

BEARING

$

$

Not available

166

GEAR CASE, Right

$

$

Not available

167

ZERK, Grease Fitting

$

$

Not available

168

WASHER, Wave

$

$

Not available

171

SEAL, Oil

$

$

Not available

172

BOLT, Phillips Head, M5 X 10

$

$

Not available

173

GEAR, Worm

$

$

Not available

174

GEAR CASE, Left

$

$

Not available

175

BOLT, Hex, M6 X 25

$

$

Not available

178

SCREW, Hex Head, M6 X 20

$

$

Not available

185

SHAFT, Auger Out

$

$

Not available

186

KEY, WOODRUFF

$

$

Not available

187

BOLT, Hex, M8 X 38

$

$

Not available

0540

Murray 707828

KIT, IMPELLER ASSEMBLY

Note: (Incl. Ref. Nos. 29, 144, 158, 163)

$86.99

$

Usually ships in 2-12 days

0

29

WASHER, 6x12x.7, Flat

$

$

Not available

144

NUT, Lock, M6

$

$

Not available

158

IMPELLAR

$

$

Not available

163

BOLT, Hex, M6 X 38

$

$

Not available

0550

Murray 707758

KIT, SHEAR PIN, IMPELLER

Note: (Incl. Ref. Nos. 29, 144, 163)

$14.99

$

In Stock, only 1 left!

0

29

WASHER, 6x12x.7, Flat

$

$

Not available

144

NUT, Lock, M6

$

$

Not available

163

BOLT, Hex, M6 X 38

$

$

Not available
