1024 L (1697439-01) - Briggs & Stratton 24" Snow Thrower, 9.5 Gross TP (2021) Traction Drive Group Parts Diagram

24" Snow Thrower, 9.5 Gross TP

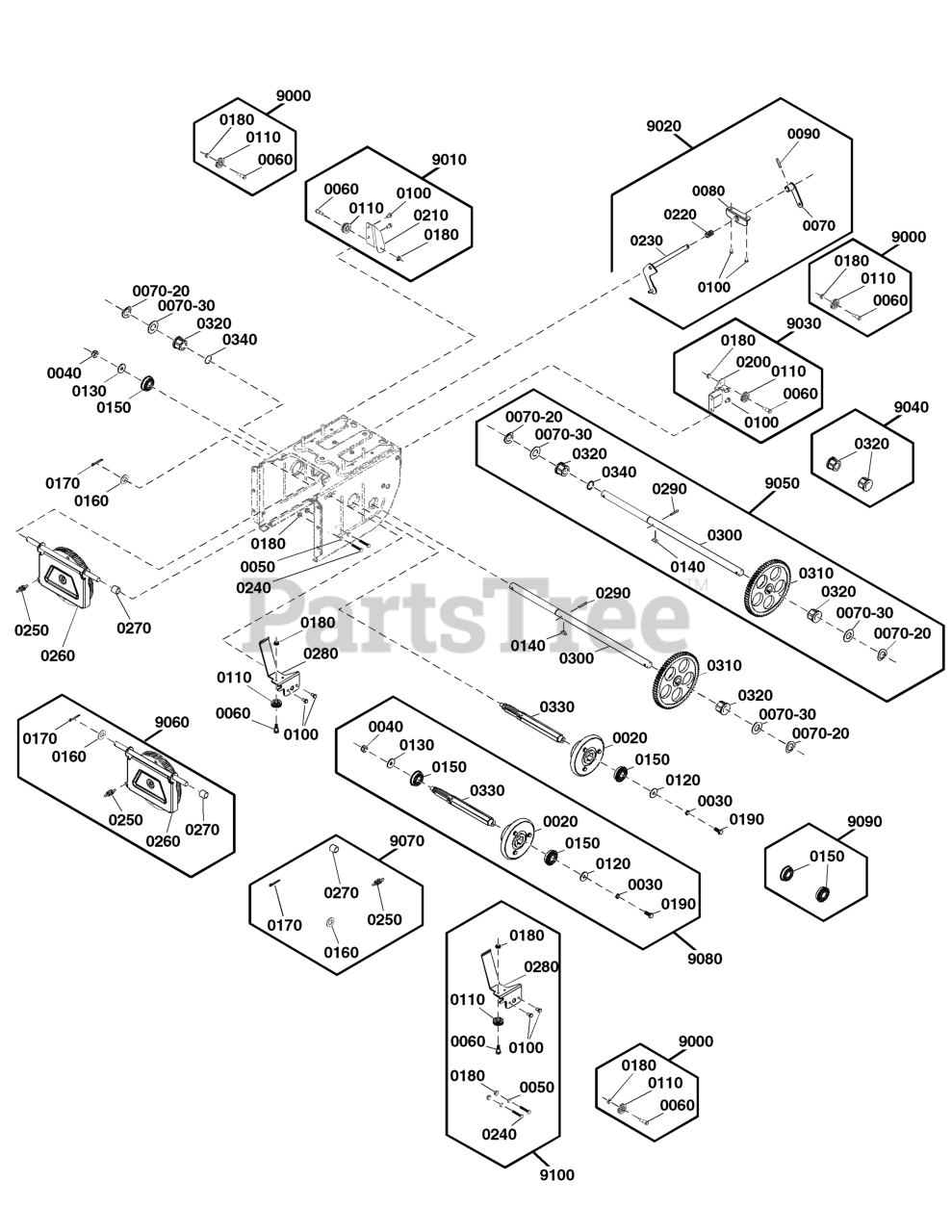

Traction Drive Group Parts Diagram

  • Title

9000

Briggs & Stratton 707541

KIT, Pulley, Cable

Note: (Incl. Ref. Nos. 0060, 0110, 0180)

$17.99

$

Usually ships in 2-12 days

0

0060

SCREW, M6 X 12, Hex Head Shoulder

$

$

Not available

0110

PULLEY, Cable

$

$

Not available

0180

NUT, HEX FLANGE HEAD, M6

$

$

Not available

9010

Briggs & Stratton 707529

KIT, Cable Base, Traction Drive

Note: (Incl. Ref. Nos. 0060, 0100, 0110, 0180, 0210)

$26.99

$

Usually ships in 2-12 days

0

0060

SCREW, M6 X 12, Hex Head Shoulder

$

$

Not available

0100

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0110

PULLEY, Cable

$

$

Not available

0180

NUT, HEX FLANGE HEAD, M6

$

$

Not available

0210

BRACKET, Cable Guide, Traction Control

$

$

Not available

9020

Briggs & Stratton 707527

KIT, Shift Rod

Note: (Incl. Ref. Nos. 0070, 0080, 0090, 0100, 0220, 0230)

$26.99

$

Usually ships in 2-12 days

0

0070

ARM, Speed Select

$

$

Not available

0080

BRACKET, Speed Select

$

$

Not available

0090

PIN, Spring, 6 X 30

$

$

Not available

0100

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0220

SPRING, Compression

$

$

Not available

0230

ROD, Speed Select, Fork

$

$

Not available

9030

Briggs & Stratton 707528

KIT, Cable Base, Auger Drive

Note: (Incl. Ref. Nos. 0060, 0100, 0110, 0180, 0200)

$18.99

$

Usually ships in 2-12 days

0

0060

SCREW, M6 X 12, Hex Head Shoulder

$

$

Not available

0100

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0110

PULLEY, Cable

$

$

Not available

0180

NUT, HEX FLANGE HEAD, M6

$

$

Not available

0200

BRACKET, Cable Guide, Auger Control

$

$

Not available

9040

Briggs & Stratton 707532

KIT, AXLE SLEEVE

Note: (Incl. Ref. No. 0320)

$15.99

$

Usually ships in 2-12 days

0

0320

SLEEVE, Axle

$

$

Not available

9050

Briggs & Stratton 770078

KIT, Axle & Sprocket

Note: (Incl. Ref. Nos. 0070-20, 0070-30, 0140, 0290, 0300, 0310, 0320, 0340)

$125.99

$

Usually ships in 2-12 days

0

0070-20

WASHER, Wave, 20

$

$

Not available

0070-30

WASHER, Flat

$

$

Not available

0140

KEY, WOODRUFF

$

$

Not available

0290

PIN, Spring, 4 X 30

$

$

Not available

0300

AXLE

$

$

Not available

0310

GEAR, Drive

$

$

Not available

0320

SLEEVE, Axle

$

$

Not available

0340

RING, External Retaining

$

$

Not available

9060

Briggs & Stratton 84006347

KIT, SWINGING PLATE

Note: (Incl. Ref. Nos. 0160, 0170, 0250, 0260, 0270)

$

$

Currently unavailable

0160

WASHER, Flat, 13 X 24 X 2

$

$

Not available

0170

PIN, Cotter, 2.5 X 30

$

$

Not available

0250

SPRING, Extension

$

$

Not available

0260

ASSEMBLY, Friction Swing Plate

$

$

Not available

0270

SLEEVE, Spacer

$

$

Not available

9070

Briggs & Stratton 707538

KIT, SPRING, SWINGING PLATE

Note: (Incl. Ref. Nos. 0160, 0170, 0250, 0270)

$9.99

$

Usually ships in 2-12 days

0

0160

WASHER, Flat, 13 X 24 X 2

$

$

Not available

0170

PIN, Cotter, 2.5 X 30

$

$

Not available

0250

SPRING, Extension

$

$

Not available

0270

SLEEVE, Spacer

$

$

Not available

9080

Briggs & Stratton 84006348

KIT, Friction Wheel & Shaft

Note: (Incl. Ref. Nos. 0020, 0030, 0040, 0120, 0130, 0150, 0190, 0330)

$104.99

$

Usually ships in 2-12 days

0

0020

FRICTION WHEEL ASSEMBLY

$

$

Not available

0030

WASHER, Lock, M8

$

$

Not available

0040

NUT, Lock, M10

$

$

Not available

0120

WASHER, Flat, 8 X 28 X 2

$

$

Not available

0130

WASHER, Flat, 10 X 28 X 2

$

$

Not available

0150

BEARING, Ball

$

$

Not available

0190

SCREW, Hex Head, M8X20

$

$

Not available

0330

SHAFT, Hex

$

$

Not available

9090

Briggs & Stratton 707536

KIT, Bearing, Friction Wheel & Shaft

Note: (Incl. Ref. No. 0150)

$23.99

$

Usually ships in 2-12 days

0

0150

BEARING, Ball

$

$

Not available

9100

Briggs & Stratton 707815

KIT, BRACKET, SWINGING PLATE

Note: (Incl. Ref. Nos. 0050, 0060, 0100, 0110, 0180, 0240, 0280)

$34.99

$

Usually ships in 2-12 days

0

0050

WASHER, 6x12x.7, Flat

$

$

Not available

0060

SCREW, M6 X 12, Hex Head Shoulder

$

$

Not available

0100

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0110

PULLEY, Cable

$

$

Not available

0180

NUT, HEX FLANGE HEAD, M6

$

$

Not available

0240

SCREW, Hex Head, M6 X 35

$

$

Not available

0280

BRACKET, Cable Guide

$

$

Not available
