1024 (1696610-03) - Briggs & Stratton 24" Snow Thrower, 9.5 Gross TP (2019) Discharge Chute Group Parts Diagram

24" Snow Thrower, 9.5 Gross TP

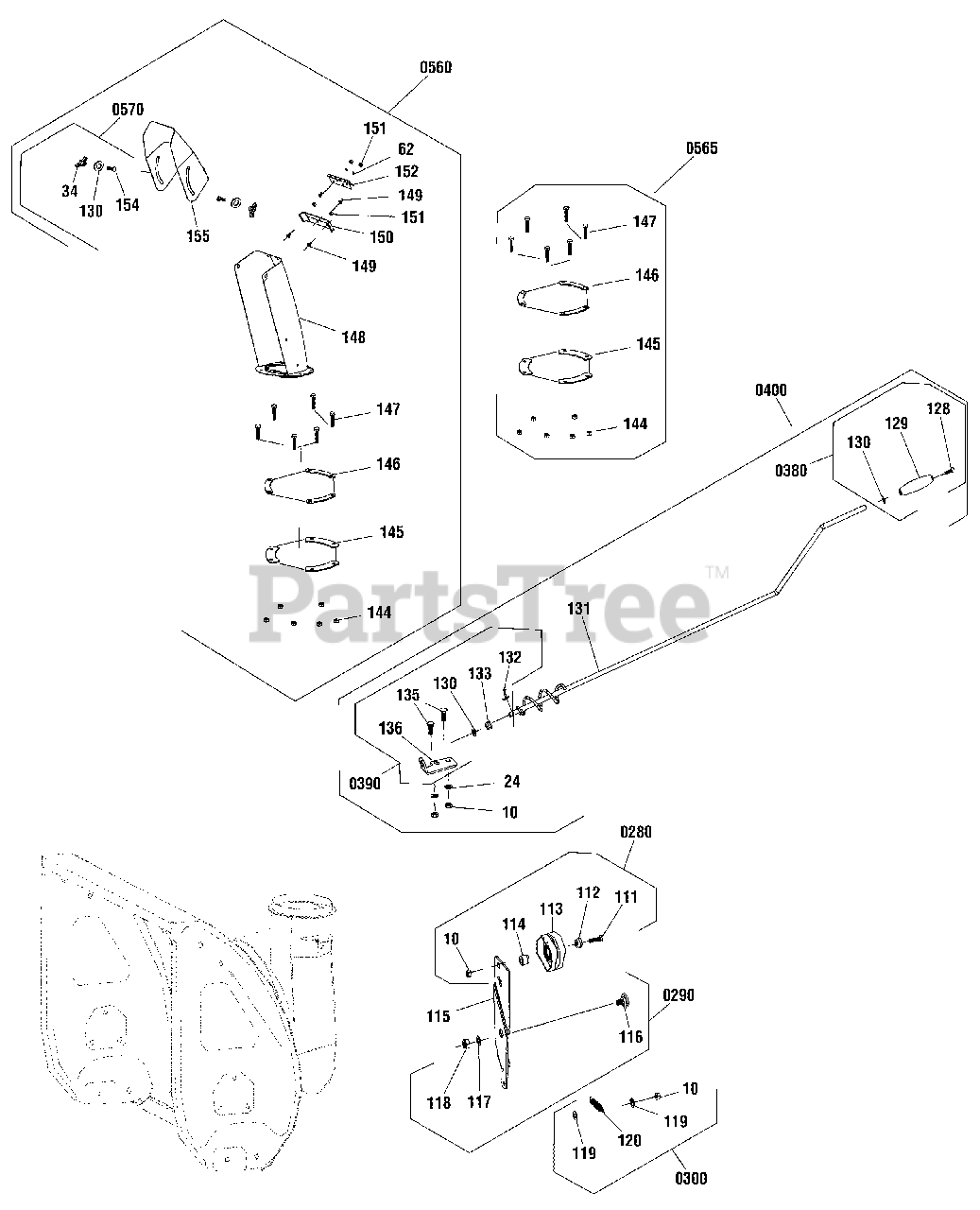

Discharge Chute Group Parts Diagram

  • Title

115

IDLER, Auger

Note: (Refer to Note:*)

$

$

Not available

0280

Briggs & Stratton 707566

KIT-IDLER PULLEY, TENSION PLATE

Note: (Incl. Ref. No. 10, 111, 112, 113, 114)

$41.99

$

Usually ships in 2-12 days

0

10

NUT, Lock, M8

$

$

Not available

111

SCREW, Hex Head, M8 X 45

$

$

Not available

112

SPACER, Idler Pulley

$

$

Not available

113

PULLEY, Idler

$

$

Not available

114

SPACER, Sleeve, Idler Pulley

$

$

Not available

0290

Briggs & Stratton 707565

KIT-HARDWARE, IDLER BRACKET

Note: (Incl. Ref. No. 116, 117, 118)

$8.99

$

Usually ships in 2-12 days

0

116

SCREW, Hex Head, M10 X 13

$

$

Not available

117

WASHER, Flat, 10 X 20 X 2

$

$

Not available

118

NUT, Lock, M10

$

$

Not available

0300

Briggs & Stratton 707841

KIT-SPRING, IDLER PULLEY

Note: (Incl. Ref. No. 10, 119, 120)

$11.99

$

Usually ships in 2-12 days

0

10

NUT, Lock, M8

$

$

Not available

119

WASHER, FLAT, 8X16X1.2

$

$

Not available

120

SPRING, Idler

$

$

Not available

0380

Briggs & Stratton 707820

KIT-HANDLE, CHUTE ROD

Note: (Incl. Ref. No. 128, 129, 130)

$17.99

$

Usually ships in 2-12 days

0

128

HEX SCREW, Flange, M6X10

$

$

Not available

129

HANDLE, Barrel, LD

$

$

Not available

130

WASHER, Flat, 10 X 20 X 2

$

$

Not available

0390

Briggs & Stratton 707821

KIT-MOUNTING PLATE, CHUTE ROTATION

Note: (Incl. Ref. No. 10, 24, 130, 132, 133, 135, 136)

$18.99

$

In Stock, only 1 left!

0

10

NUT, Lock, M8

$

$

Not available

24

WASHER, 8x22x2, Flat

$

$

Not available

130

WASHER, Flat, 10 X 20 X 2

$

$

Not available

132

PIN, Cotter, 2.2X25

$

$

Not available

133

RING, SJ Mounting Plate, Plastic

$

$

Not available

135

BOLT, Carriage, M8X20

$

$

Not available

136

BRACKET, Chute Rod, LD

$

$

Not available

0400

Briggs & Stratton 707822

KIT-CHUTE ROTATION

Note: (Incl. Ref. No. 10, 24, 128, 129, 130, 131, 132, 133, 135, 136)

$296.99

$

Usually ships in 2-12 days

0

10

NUT, Lock, M8

$

$

Not available

24

WASHER, 8x22x2, Flat

$

$

Not available

128

HEX SCREW, Flange, M6X10

$

$

Not available

129

HANDLE, Barrel, LD

$

$

Not available

130

WASHER, Flat, 10 X 20 X 2

$

$

Not available

131

ROD, Crank, LD

$

$

Not available

132

PIN, Cotter, 2.2X25

$

$

Not available

133

RING, SJ Mounting Plate, Plastic

$

$

Not available

135

BOLT, Carriage, M8X20

$

$

Not available

136

BRACKET, Chute Rod, LD

$

$

Not available

0560

Briggs & Stratton 707831

KIT-CHUTE ASSEMBLY, BLACK, NA

Note: (Incl. Ref. No. 34, 62, 130, 144, 145, 146, 147, 148, 149, 150, 151, 152, 154, 155, 304)

$182.99

$

Usually ships in 2-12 days

0

34

KNOB, Wing, M8

$

$

Not available

62

WASHER, 6x12x.7, Flat

$

$

Not available

130

WASHER, Flat, 10 X 20 X 2

$

$

Not available

148

WELDMENT, Chute, LD

$

$

Not available

149

BOLT, Phillips Head, M6X10

$

$

Not available

150

GASKET, Chute Deflector, LD

$

$

Not available

151

NUT, Lock, M6

$

$

Not available

152

HINGE, Chute

$

$

Not available

154

BOLT, Carriage, M8 X 25

$

$

Not available

155

WELDMENT, Chure Deflector, LD

$

$

Not available

304

Briggs & Stratton 1737865YP

DECAL, Danger Chute Warning, FR/ENG

Note: (Not Illustrated)

$11.99

$

Usually ships in 2-12 days

0

0565

Briggs & Stratton 84002370

KIT, Hardware, Chute Rotation

Note: (Incl. Ref. No. 144, 145, 146, 147)

$23.99

$

Usually ships in 2-12 days

0

144

NUT, Lock, M6

$

$

Not available

145

PLATE, Chute Mounting, LD

$

$

Not available

146

GASKET, Chute Mounting, LD

$

$

Not available

147

SCREW, Hex Head, M6X16

$

$

Not available

0570

Briggs & Stratton 707759

KIT-WING KNOB, CHUTE

Note: (Incl. Ref. No. 34, 130, 154)

$20.99

$

Usually ships in 2-12 days

0

34

KNOB, Wing, M8

$

$

Not available

130

WASHER, Flat, 10 X 20 X 2

$

$

Not available

154

BOLT, Carriage, M8 X 25

$

$

Not available
