1024 (1696610-03) - Briggs & Stratton 24" Snow Thrower, 9.5 Gross TP (2019) Auger Drive Group Parts Diagram

24" Snow Thrower, 9.5 Gross TP

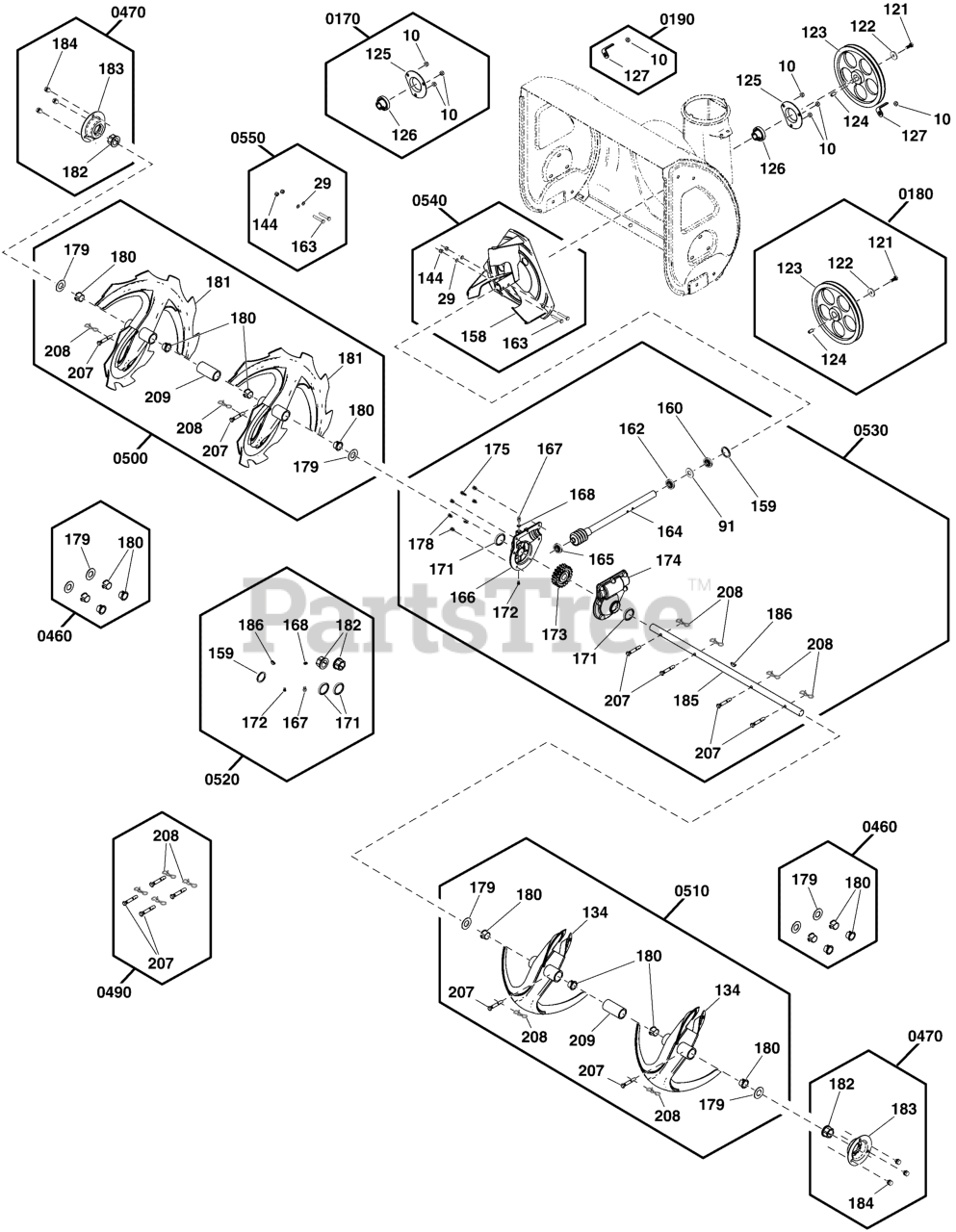

Auger Drive Group Parts Diagram

  • Title

0170

Briggs & Stratton 770800

KIT, Bearing Hardware, Auger Pulley

Note: (Incl. Ref. Nos. 10, 125, 126)

$29.99

$

Usually ships in 2-12 days

0

10

NUT, Lock, M8

$

$

Not available

125

RETAINER, Ball Bearing

$

$

Not available

126

BEARING, Ball

$

$

Not available

0180

Briggs & Stratton 707823

KIT, AUGER PULLEY

Note: (Incl. Ref. Nos. 121, 122, 123, 124)

$40.99

$

Usually ships in 2-12 days

0

121

SCREW, Hex Head, M8X20

$

$

Not available

122

WASHER, Flat, 8 X 28 X 2

$

$

Not available

123

PULLEY, Driven

$

$

Not available

124

KEY, Flat, 6 X 6 X 17

$

$

Not available

0190

Briggs & Stratton 707547

KIT, BELT GUIDE, AUGER

Note: (Incl. Ref. Nos. 10, 127)

$11.99

$

Usually ships in 2-12 days

0

10

NUT, Lock, M8

$

$

Not available

127

GUIDE, Belt

$

$

Not available

0460

Briggs & Stratton 84003703

KIT, Auger Shaft Hardware

Note: (Incl. Ref. Nos. 179, 180)

$6.49

$

Usually ships in 2-12 days

0

179

WASHER, Flat

$

$

Not available

180

BEARING, Auger Shaft

$

$

Not available

0470

Briggs & Stratton 707824

KIT, MOUNTING PLATE, AUGER HOUSING

Note: (Incl. Ref. Nos. 182, 183, 184)

$32.99

$

In Stock, only 1 left!

0

182

BEARING, Auger Shaft

$

$

Not available

183

CAP, Bearing

$

$

Not available

184

SCREW, Hex Head, M8 X 10

$

$

Not available

0490

Briggs & Stratton 84003702

KIT, SHEAR PIN, AUGER

Note: (Incl. Ref. Nos. 207, 208)

$10.99

$

In Stock, only 2 left!

0

207

PIN, Shear

$

$

Not available

208

PIN, Cotter

$

$

Not available

0500

Briggs & Stratton 84003868

KIT, Auger Assembly, Right

Note: (Incl. Ref. Nos. 179, 180, 181, 207, 208, 209)

$140.99

$

In Stock, only 1 left!

0

179

WASHER, Flat

$

$

Not available

180

BEARING, Auger Shaft

$

$

Not available

181

AUGER, 24", Right, Black

$

$

Not available

207

PIN, Shear

$

$

Not available

208

PIN, Cotter

$

$

Not available

209

SLEEVE, Auger Shaft

$

$

Not available

0510

Briggs & Stratton 84003701

KIT, Auger Assembly, Left

Note: (Incl. Ref. Nos. 134, 179, 180, 207, 208, 209)

$140.99

$

Usually ships in 2-12 days

0

134

AUGER, 24", Left, Black

$

$

Not available

179

WASHER, Flat

$

$

Not available

180

BEARING, Auger Shaft

$

$

Not available

207

PIN, Shear

$

$

Not available

208

PIN, Cotter

$

$

Not available

209

SLEEVE, Auger Shaft

$

$

Not available

0520

Briggs & Stratton 84001632

KIT, Seal, Gearbox

Note: (Incl. Ref. Nos. 159, 167, 168, 171, 172, 182, 186)

$22.99

$

In Stock, only 1 left!

0

159

SEAL, Oil

$

$

Not available

167

ZERK, Grease Fitting

$

$

Not available

168

WASHER, Wave

$

$

Not available

171

SEAL, Oil

$

$

Not available

172

BOLT, Phillips Head, M5 X 10

$

$

Not available

182

BEARING, Auger Shaft

$

$

Not available

186

KEY, WOODRUFF

$

$

Not available

0530

Briggs & Stratton 84004725

KIT, Gearbox

Note: (Incl. Ref. Nos. 91, 159, 160, 162, 164, 165, 166, 167, 168, 171, 172, 173, 174, 175, 178, 185, 186, 207, 208)

$216.99

$

Usually ships in 2-12 days

0

91

WASHER, Flat

$

$

Not available

159

SEAL, Oil

$

$

Not available

160

BEARING

$

$

Not available

162

BEARING

$

$

Not available

164

SHAFT, Impeller Wormgear

$

$

Not available

165

BEARING

$

$

Not available

166

GEAR CASE, Right

$

$

Not available

167

ZERK, Grease Fitting

$

$

Not available

168

WASHER, Wave

$

$

Not available

171

SEAL, Oil

$

$

Not available

172

BOLT, Phillips Head, M5 X 10

$

$

Not available

173

GEAR, Worm

$

$

Not available

174

GEAR CASE, Left

$

$

Not available

175

BOLT, Hex, M6 X 25

$

$

Not available

178

SCREW, Hex Head, M6 X 20

$

$

Not available

185

SHAFT, Auger Out

$

$

Not available

186

KEY, WOODRUFF

$

$

Not available

207

PIN, Shear

$

$

Not available

208

PIN, Cotter

$

$

Not available

0540

Briggs & Stratton 707828

KIT, IMPELLER ASSEMBLY

Note: (Incl. Ref. Nos. 29, 144, 158, 163)

$86.99

$

Usually ships in 2-12 days

0

29

WASHER, 6x12x.7, Flat

$

$

Not available

144

NUT, Lock, M6

$

$

Not available

158

IMPELLAR

$

$

Not available

163

BOLT, Hex, M6 X 38

$

$

Not available

0550

Briggs & Stratton 707758

KIT, SHEAR PIN, IMPELLER

Note: (Incl. Ref. Nos. 29, 144, 163)

$14.99

$

In Stock, only 1 left!

0

29

WASHER, 6x12x.7, Flat

$

$

Not available

144

NUT, Lock, M6

$

$

Not available

163

BOLT, Hex, M6 X 38

$

$

Not available
