10236 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) RECOIL STARTER ASSEMBLY 590739 (OPTIONAL) Parts Diagram

Silver Series Walk-Behind Mower

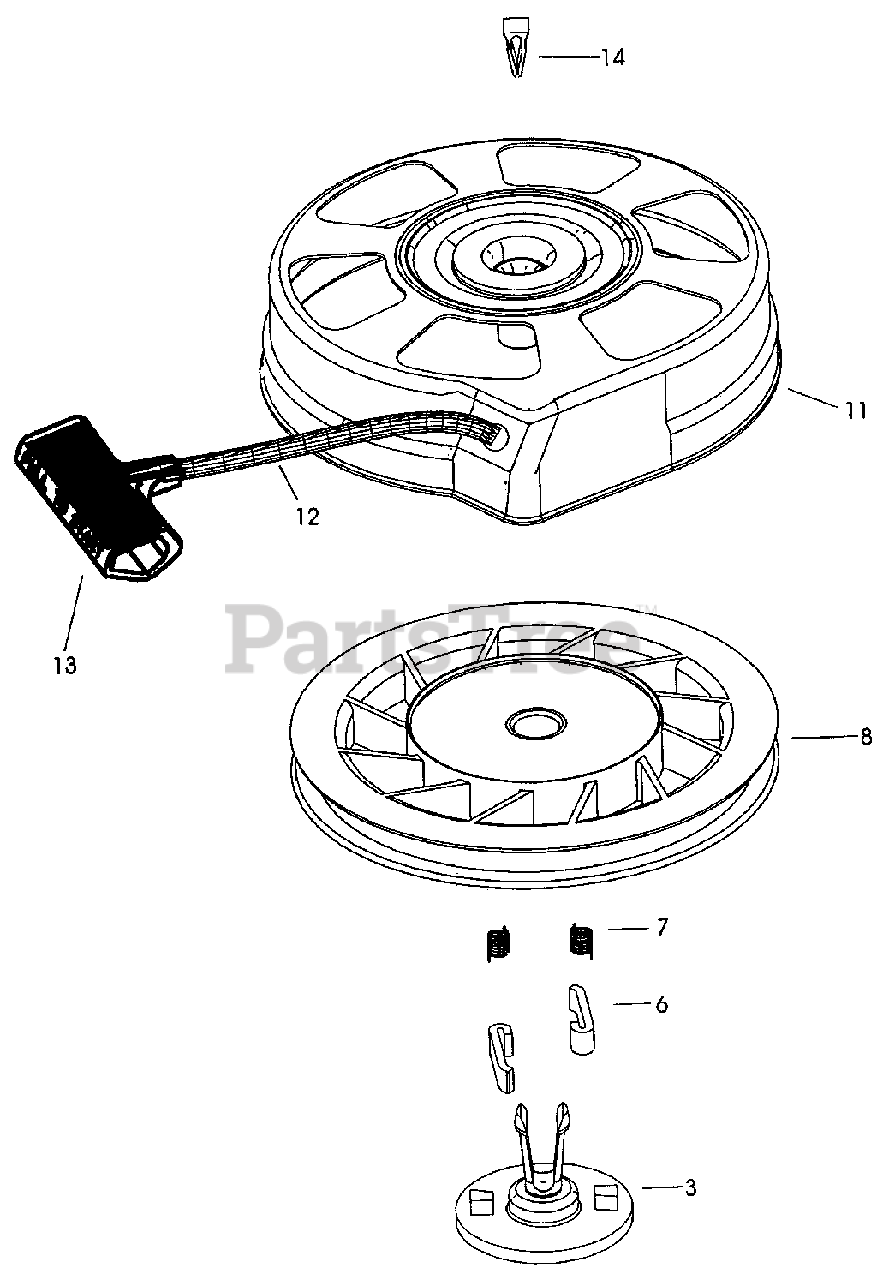

RECOIL STARTER ASSEMBLY 590739 (OPTIONAL) Parts Diagram

  • Title

Lawn-Boy 590739

Rewind Starter

$

$

Currently unavailable

3

Lawn-Boy 590740

Retainer

$

$

Currently unavailable

6

Lawn-Boy 590616

Starter Dog

$

$

Currently unavailable

7

Lawn-Boy 590617

Dog Spring

$

$

Currently unavailable

8

Lawn-Boy 590618A

Pulley & Rewind Spring Ass'y

$

$

Currently unavailable

11

Lawn-Boy 590638

Starter Housing Ass'y (40 degree grommet)

$

$

Currently unavailable

12

Lawn-Boy 590535

Starter Rope (Length 98" x 9/64" dia.)

$

$

Currently unavailable

13

Lawn-Boy 590701

Starter Handle

$

$

Currently unavailable

14

Lawn-Boy 590741

Locking Tab

$

$

Currently unavailable
