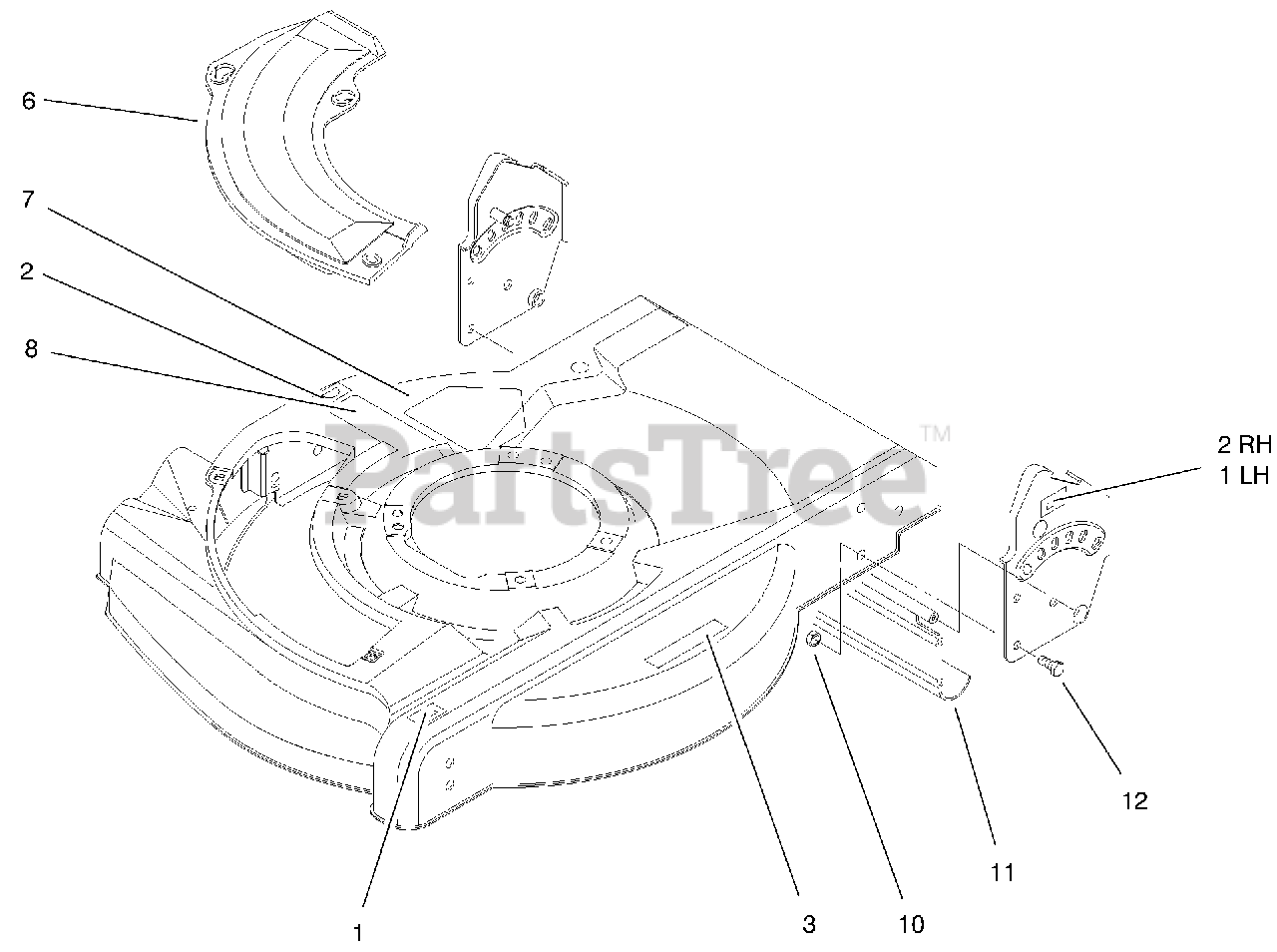

10236 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) COVER ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

COVER ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-2915

Decal-HOC

$6.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 92-2914

Decal-HOC

$

$

Not available

3

Lawn-Boy 93-7250

Decal-Warning

$15.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 607560

Plate-Cover
(Superseded to 95-7052)

$36.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 39-5770

Decal-Danger

$8.99

$

In Stock, Qty 8

0

8

Lawn-Boy 92-1097

Decal-Discharge

$

$

Not available

10

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 92-8647

Shield-Trailing

$41.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 13

0
