1022EX (1697340-01) - Snapper 22" Snow Thrower, 9.5hp (2020) Auger Group Parts Diagram

22" Snow Thrower, 9.5hp

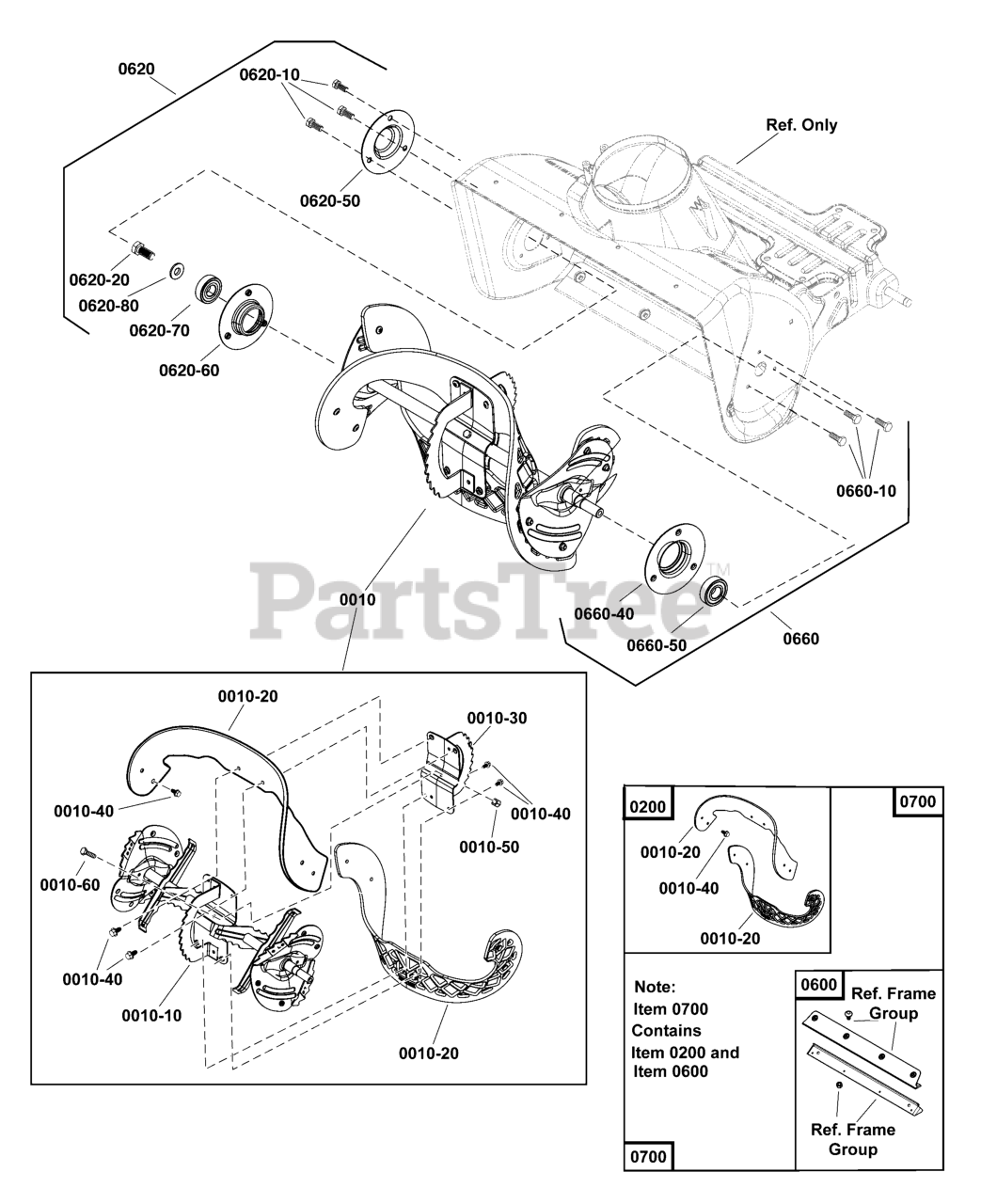

Auger Group Parts Diagram

  • Title

0010

Snapper 84006448

AUGER ASSEMBLY, Complete

Note: (Includes Ref. Nos. 0010-10 thru 0010-0060)

$269.99

$

Usually ships in 2-12 days

0

0010-10

*AUGER SHAFT ASSEMBLY

$

$

Not available

0010-20

**FLIGHT, Auger

$

$

Not available

0010-30

*PLATE, Auger, Center

$

$

Not available

0010-40

Snapper 7091246YP

SCREW, 1/4-20 x 3/4, Pan Head Torx
(Superseded to 770003)

$3.99

$

In Stock, Qty 20+

0

0010-50

Snapper 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0

0010-60

Snapper 703234

CAPSCREW, Hex Head, 1/4-20 X 1 1/2, G5

$4.49

$

In Stock, only 4 left!

0

0200

Snapper 1687804

KIT, AUGER FLIGHT

Note: (Includes Ref. Nos. 0010-20 & 0010-40)

$107.99

$

In Stock, only 3 left!

0

0600

Snapper 1687805

KIT, Scraper Bar

$97.99

$

In Stock, only 2 left!

0

0660

Snapper 709878

KIT, AUGER BEARING, LEFT

Note: (Incl. Ref. Nos. 0660-10, 0660-40 & 0660-50)

$30.99

$

Usually ships in 2-12 days

0

0660-10

Snapper 7091835YP

SCREW, M6 1.0X12MM, Hex Head, CZ

$3.49

$

Usually ships in 2-12 days

0

0660-40

RETAINER, Bearing

$

$

Not available

0660-50

BEARING

$

$

Not available

0700

Snapper 1687806

KIT, Auger Flight & Scaper Bar

Note: (Includes Ref. Nos. 0200 & 0600)

$121.99

$

In Stock, Qty 20+

0

0620

Snapper 709882

KIT, AUGER BEARING, RIGHT

Note: (Incl. Ref. Nos. 0620-10, 0620-20, 0620-50 through 0620-80)

$43.99

$

Usually ships in 2-12 days

0

0620-10

Snapper 7091835YP

SCREW, M6 1.0X12MM, Hex Head, CZ

$3.49

$

Usually ships in 2-12 days

0

0620-20

BOLT, M6x16, Hex Head

$

$

Not available

0620-50

CAP, Bearing

$

$

Not available

0620-60

RETAINER, Bearing

$

$

Not available

0620-70

BEARING

$

$

Not available

0620-80

WASHER, 6x23x3, Flat

$

$

Not available

--

Snapper 709877

KIT, AUGER BEARING

Note: (Includes Ref Nos. 0620-70 & 0660-50)

$14.99

$

In Stock, only 1 left!

0
