10227 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) ENGINE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

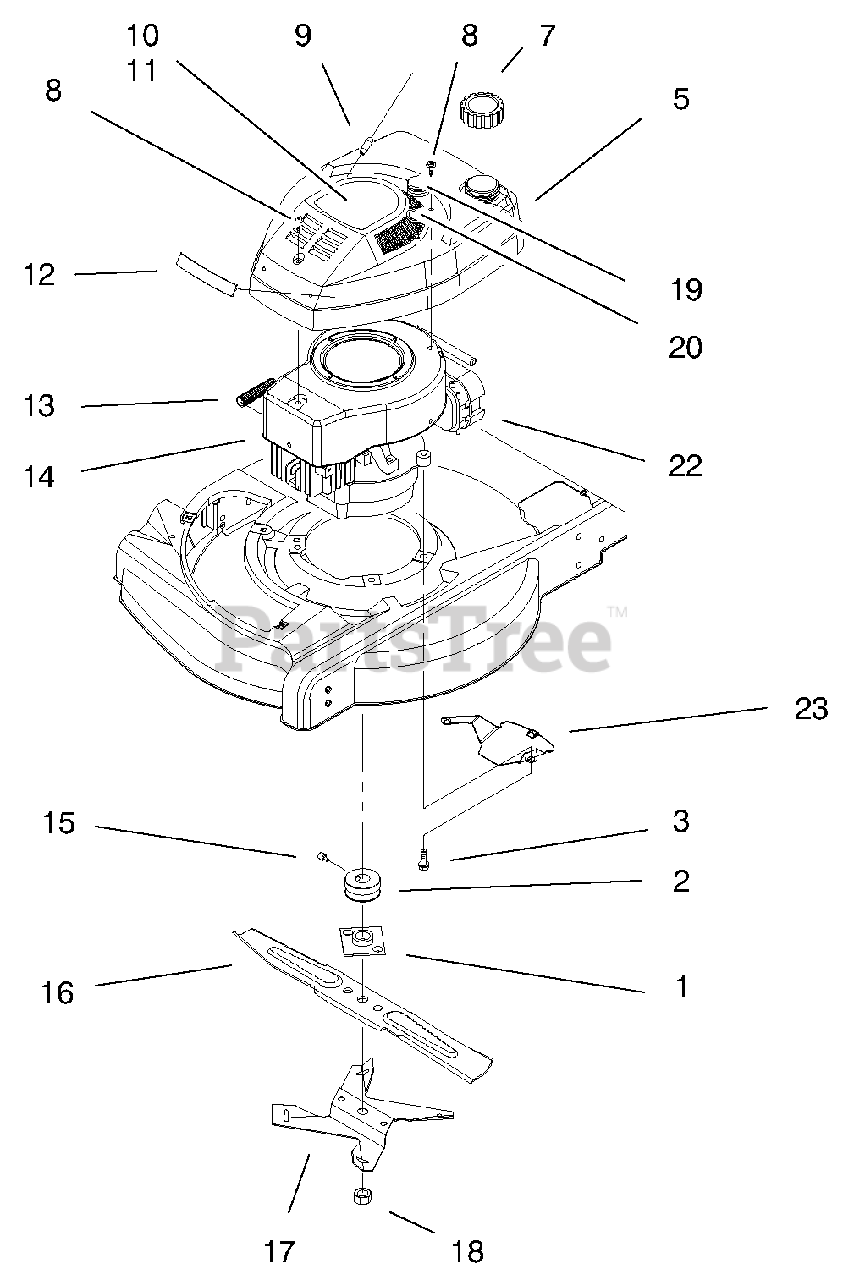

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 677525

Plate & Collar Assembly

$45.99

$

In Stock, Qty 7

0

2

Lawn-Boy 92-6542

Pulley-Engine (Model No. 10304 Only)

$98.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 95-1726

Screw-Engine

$2.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 92-6380

Tank & Shroud Assembly

$137.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 93-3660

Fuel/Oil Cap Assembly
(Superseded to 98-8344)

$25.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 93-4302

Screw-Sems

$8.49

$

In Stock, Qty 12

0

9

Lawn-Boy 92-1701

Rope-Stop
(Superseded to 2210-316)

$8.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 93-0295

Decal-Recoil (Model No. 10227 Only)

$

$

Not available

11

Lawn-Boy 93-0294

Decal-Recoil (Model No. 10304 Only)

$8.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 92-8615

Applique-Shroud

$32.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 93-4306

Spring-Compression

$6.99

$

In Stock, only 2 left!

0

14

Engine Assembly

$

$

Not available

15

Lawn-Boy 613227

Screw-Set (Model No. 10304 Only)
(Superseded to 105-8875)

$12.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 612543

Blade-21"
(Superseded to 612543-03)

$29.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 92-1630

Fan-Mulching
(Superseded to 99-6351-03)

$39.99

$

In Stock, Qty 9

0

18

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 9

0

19

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 612782

Line-Gas

$7.99

$

In Stock, Qty 7

0

23

Lawn-Boy 93-4196

Shield-Grass (Model No. 10304 Only)
(Superseded to 93-4196-03)

$16.99

$

In Stock, only 3 left!

0
