10227 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) HANDLE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

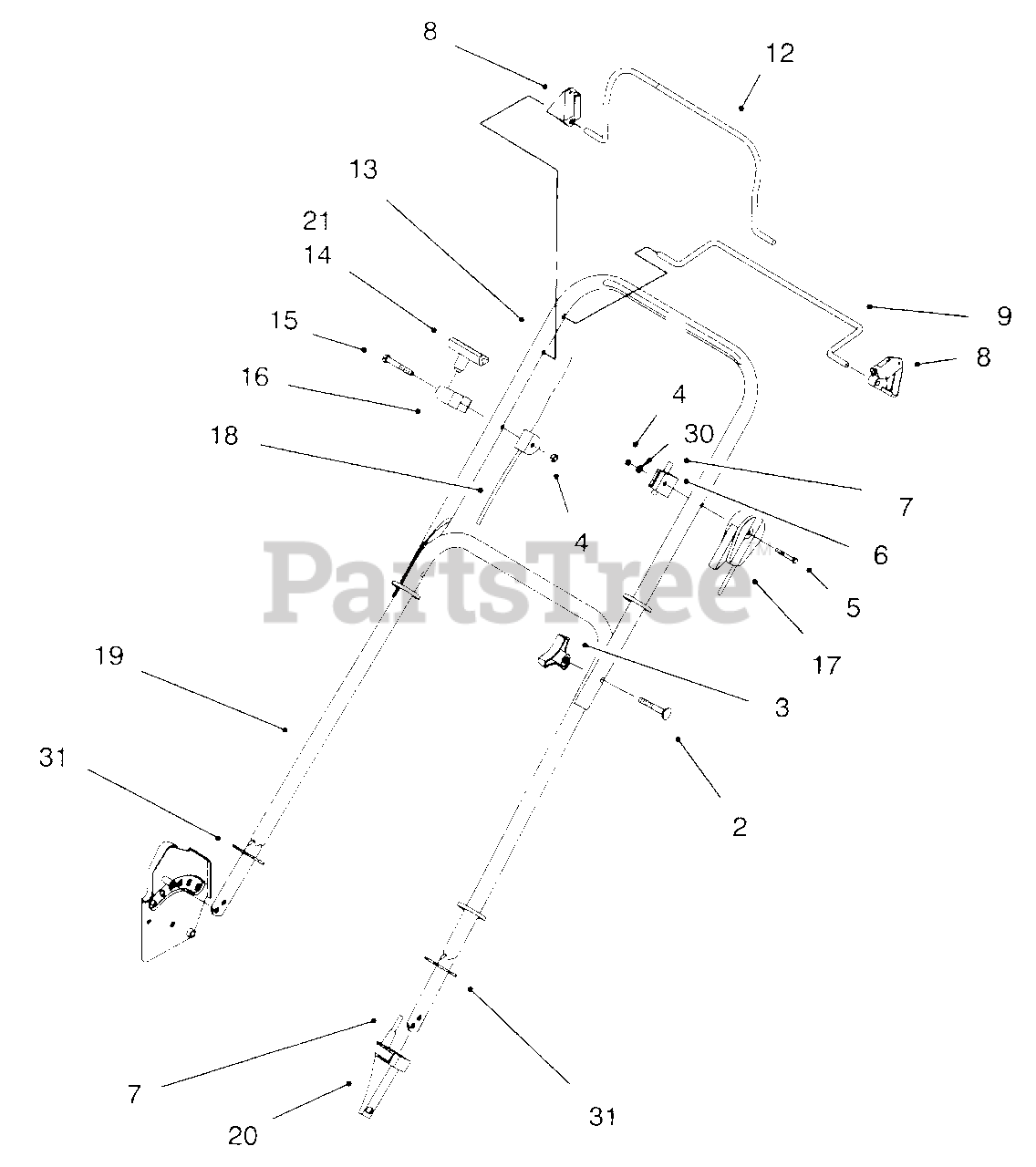

HANDLE ASSEMBLY Parts Diagram

  • Title

2

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 13

0

3

Lawn-Boy 614243

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 15

0

4

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 321-48

Screw-Hex Hd. Cap (Model No. 10227 Only)

$1.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 321-49

Screw-Hex Hd. Cap (Model No. 10304 Only)

$1.99

$

In Stock, Qty 9

0

6

Lawn-Boy 92-7729

Anchor-Cable Upper (Model No. 10304 Only)

$4.99

$

In Stock, only 4 left!

0

7

Lawn-Boy 92-7726

Cable-Traction (Model No. 10304 Only)
(Superseded to 95-5590)

$34.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 92-5412

Stop-Pivot (Model No. 10227 Only)
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

8

Lawn-Boy 92-5412

Stop-Pivot (Model No. 10304 Only)
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

9

Lawn-Boy 92-1001

Bail-SP Control (Model No. 10304 Only)
(Superseded to 92-1001-03)

$58.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 93-4184

Bail-Flywheel Brake
(Superseded to 93-4184-03)

$41.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 93-4185

Handle-Section Upper

$

$

Not available

14

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 321-5

Screw-Hex Hd. Cap

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

17

Lawn-Boy 92-7734

Cable-Throttle 2 Cycle

$40.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 92-7738

Cable-Flywheel Brake

$33.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 614673

Handle Section-Lower

$12.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 93-7380

Anchor-Cable SP Lower (Model No. 10304 Only)

$14.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 612824

Clip-Rope Insert

$4.49

$

In Stock, Qty 10

0

30

Lawn-Boy 92-8632

Washer (Model No. 10227 Only)
(Superseded to 115-0995)

$6.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 93-3653

Handle-Guard (Model No. 10227 Only)
(Superseded to 104-1013)

$

$

Not available

31

Lawn-Boy 93-3653

Handle-Guard (Model No. 10304 Only)
(Superseded to 104-1013)

$

$

Not available
