10221 - Toro Sportlawn Walk-Behind Mower (SN: 003000001 - 003999999) (1973) CARBURETOR ASSEMBLY Parts Diagram

Sportlawn Walk-Behind Mower

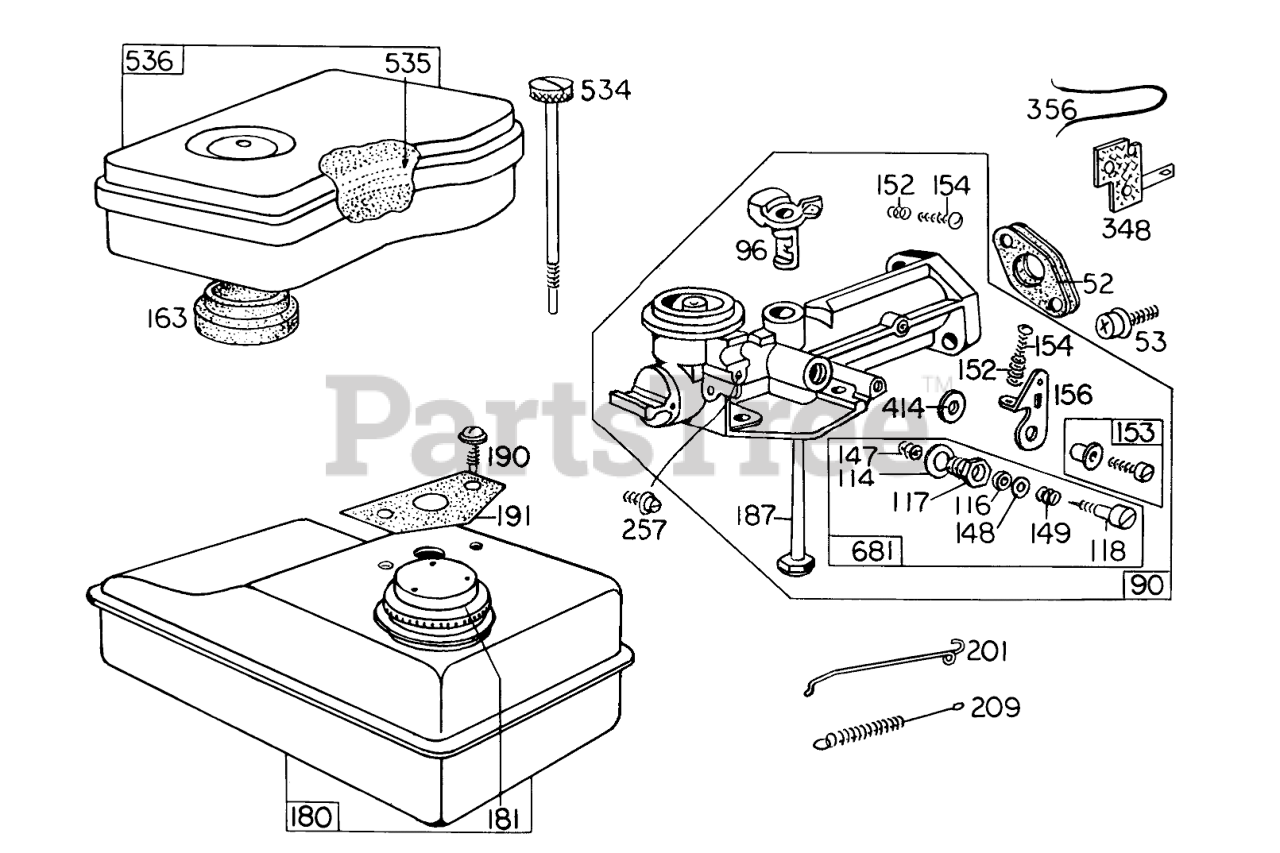

CARBURETOR ASSEMBLY Parts Diagram

  • Title

52

Briggs & Stratton 27355

Gasket-Carburetor
(Superseded to 27355S)

Note: Included in Gasket Set-Part No. 297275.

$3.99

$

In Stock, Qty 20+

0

53

Briggs & Stratton 93353

Screw, Carburetor Mtg. Sem
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 391338

Carburetor Assembly
(Superseded to 495821)

$

$

Not available

96

Briggs & Stratton 210719

Throttle-Carburetor

$17.99

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 65787

Gasket-Needle Valve

$3.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 65978

Packing-Needle
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 23431

Nut-Needle Valve
(Superseded to 5023431)

$1215.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 23433

Valve-Needle
(Superseded to 690266)

$9.49

$

In Stock, only 3 left!

0

147

Briggs & Stratton 23432

Seat-Needle Valve
(Superseded to 5023432)

$683.99

$

In Stock, only 1 left!

0

148

Briggs & Stratton 22235

Washer-Needle Valve
(Superseded to 690257)

$4.99

$

In Stock, only 1 left!

0

149

Briggs & Stratton 26336

Spring Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, only 4 left!

0

152

Briggs & Stratton 260575

Spring-Adjustment
(Superseded to 691783)

$7.99

$

In Stock, Qty 10

0

153

Briggs & Stratton 298031

Screw-Carburetor Lever

$4.99

$

Usually ships in 2-12 days

0

154

Briggs & Stratton 92634

Screw-Round Head
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

156

Briggs & Stratton 220678

Lever-Speed Adjuster
(Superseded to 394029)

$8.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 27660

51048 SUP.SHEET TIL

$

$

Not available

180

Briggs & Stratton 291834

Tank Assembly-Fuel
(Superseded to 399390)

$

$

Not available

181

Briggs & Stratton 298425

Cap-Fuel Tank
(Superseded to 493982S)

$

$

Not available

187

Briggs & Stratton 296476

Pipe-Fuel

$10.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 93341

Screw-Fuel Tank Mtg.
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 27404

Gasket-Fuel Tank Mtg.

Note: Included in Gasket Set-Part No. 297275.

$6.49

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260040

Link-Governor
(Superseded to 261662)

$7.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260623

Spring-Governor
(Superseded to 692205)

$6.99

$

In Stock, only 1 left!

0

257

Briggs & Stratton 93263

Screw-Fil. Hd.

$

$

Not available

356

Briggs & Stratton 391115

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

414

Briggs & Stratton 22398

Washer
(Superseded to 5022398)

$3.49

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 93322

Screw-Air Cleaner

$5.99

$

In Stock, Qty 8

0

535

Briggs & Stratton 27987

Element-Air Cleaner
(Superseded to 27987S)

$6.99

$

In Stock, Qty 9

0

536

Briggs & Stratton 296767

Cleaner Assy.-Air

$90.99

$

Usually ships in 2-12 days

0

681

Briggs & Stratton 299059

Needle Valve Kit

$33.99

$

In Stock, only 1 left!

0
